Replacement
Slide the entire assembly back into the atomizer
body. Slide fiber optic nut over transmitter and
tighten securely with fiber optic transmitter tool
(78279-00). Feel transmitter after installation. It
should not be loose when properly installed.
Push while twisting on the fiber optic cable from
the cascade side of the knuckle until the connector
nut (black) of the transmitter is visible. Loosen
the connection nut and pull the fiber optic cable
out of the cascade side of the knuckle.

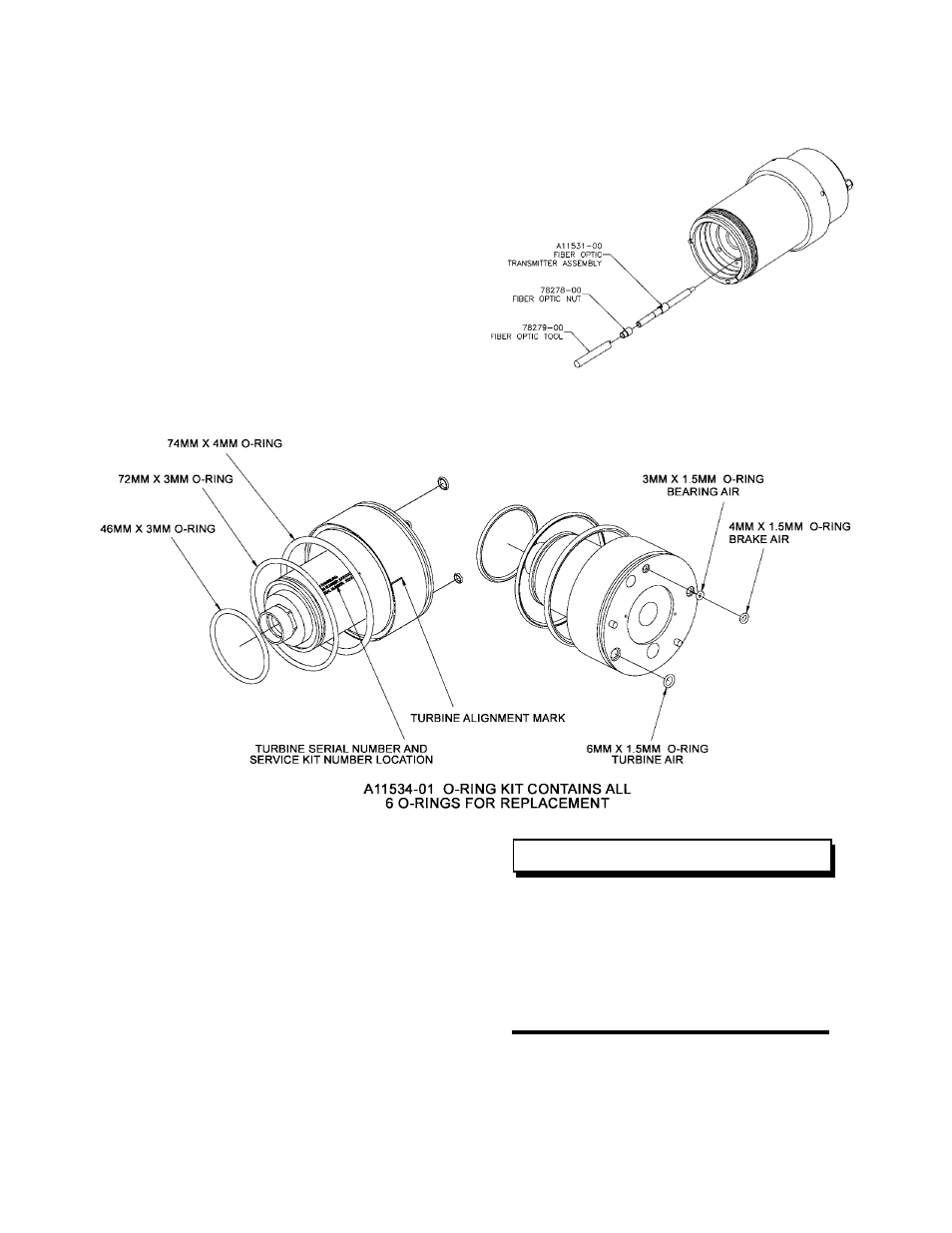

Turbine O-Ring Replacement
• Remove air bearing turbine from the atomizer.
• Remove all exterior O-rings.
• Lightly lubricate all O-rings with A11545 Petro-
latum jell before reinstalling.
• O-Ring Kit (A11534-00) contains all required
O-rings for replacement
.
NOTE
† Turbine assemblies are field repairable
after the initial one year warranty period.
Consult a Ransburg representative for
proper manuals and training before at-
tempting any repairs. Any attempt to repair
the turbine before the one year warranty
period has expired will void the warranty.
