Graphical information provided for reference only for all charts. Unless otherwise specified, all
pressure data shown was measured 12-inches (305mm) behind the applicator.
GRAPHS

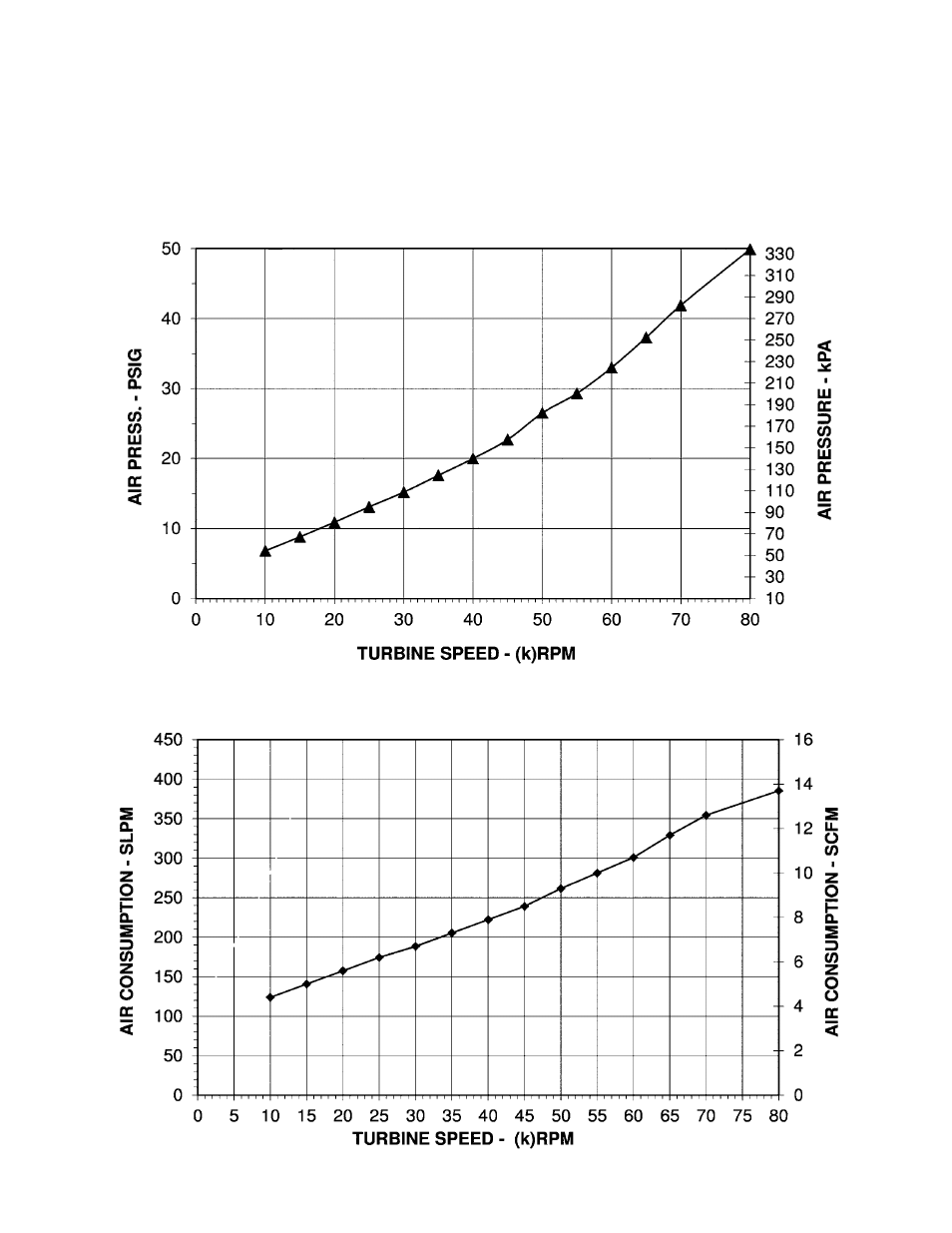

TURBINE SPEED VS. PRESSURE - NO LOAD
TURBINE SPEED VS. AIR CONSUMPTION - NO LOAD
