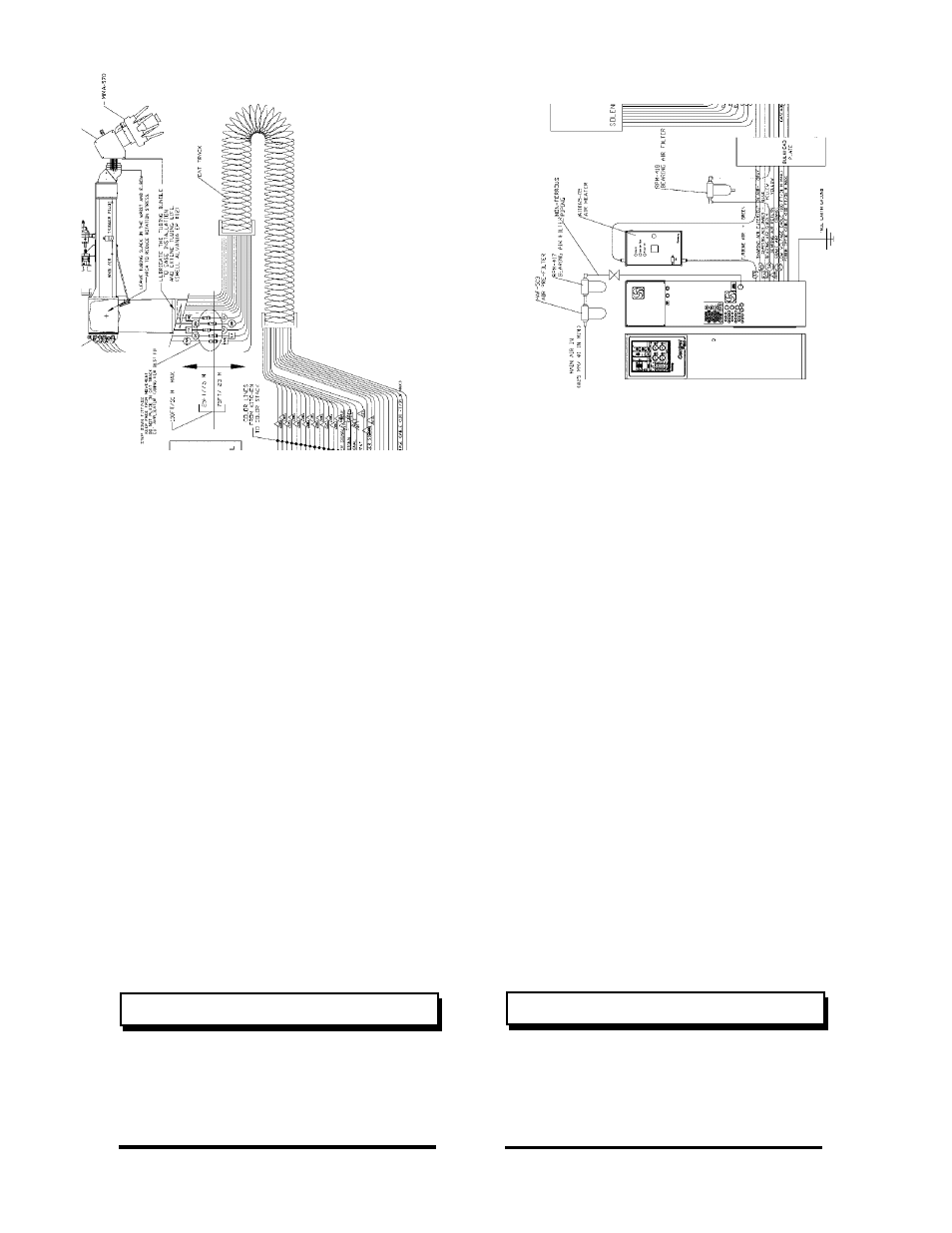

SHAPING AIR KIT #1

A12874-05/06 Shaping Air Kits (Mono Flex

Air - Direct Charge) A12874-07 Shaping Air Kit

(Mono Flex Air - Indirect Charge) for Use with

All 65mm Bell Cup Only)
As the name implies, shaping air outlet supply

air that is counter to the rotation of the bell cup.

This combination will provide a pattern size from

10-inch to 24-inch (250mm - 610mm) depending

on air flow, fluid flow, and cup rotation speed.

Connection is made using the “blue” 8mm tube

labeled “SAI” on the tubing bundle. The other 8mm

tube labeled “SAO” is “gray” in color and must be

plugged. However, if additional air is required, this

tube can be connected to a secondary controlled

air source. Precautions must be taken that one

does not have a significantly higher pressure than

the other to avoid any back flow. This shaping

air combination can be used with any 65mm bell

cup. (See “Pressure and Flow Data Charts” in

the “Introduction” section.)

NOTE

†

A minimum of 70 slpm (2.6SCFM)

should always be kept flowing in the inner

shaping air passage to keep the face of

the applicator clean during manual clean-

ing breaks.

SHAPING AIR KIT #2

A12874-08/09 Shaping Air Kits (Dual Flex Air

- Direct Charge) A12874-10/11 Shaping Air Kit

(Dual Flex Air - Indirect Charge) - for use with

any 65mm Bell Cup Only.

As the name implies, both shaping air outlets

supply air that is counter to the rotation of the bell

cup. This combination will provide a pattern size

from 3-inch to 10-inch (76mm - 254mm) depend-

ing on bell rotation speed, fluid flow, and air flow.

Both sets of shaping air holes are independently

controlled. The inner set of holes are supplied by

connecting the “blue” tube labeled “SAI” on the

tubing bundle to a regulated air source. The outer

set of shaping air holes are supplied by connecting

the “gray” tube labeled “SAO” on the tubing bundle

to a regulated source. The air supplies work in

combination with each other to provide desired

results. This combination of shaping air can be

used with any 65mm bell cup.

NOTE

†

A minimum of 70 slpm (2.6 SCFM)

should always be kept flowing in the in-

ner shaping air passage to keep the face

of the applicator clean during manual

cleaning breaks.
