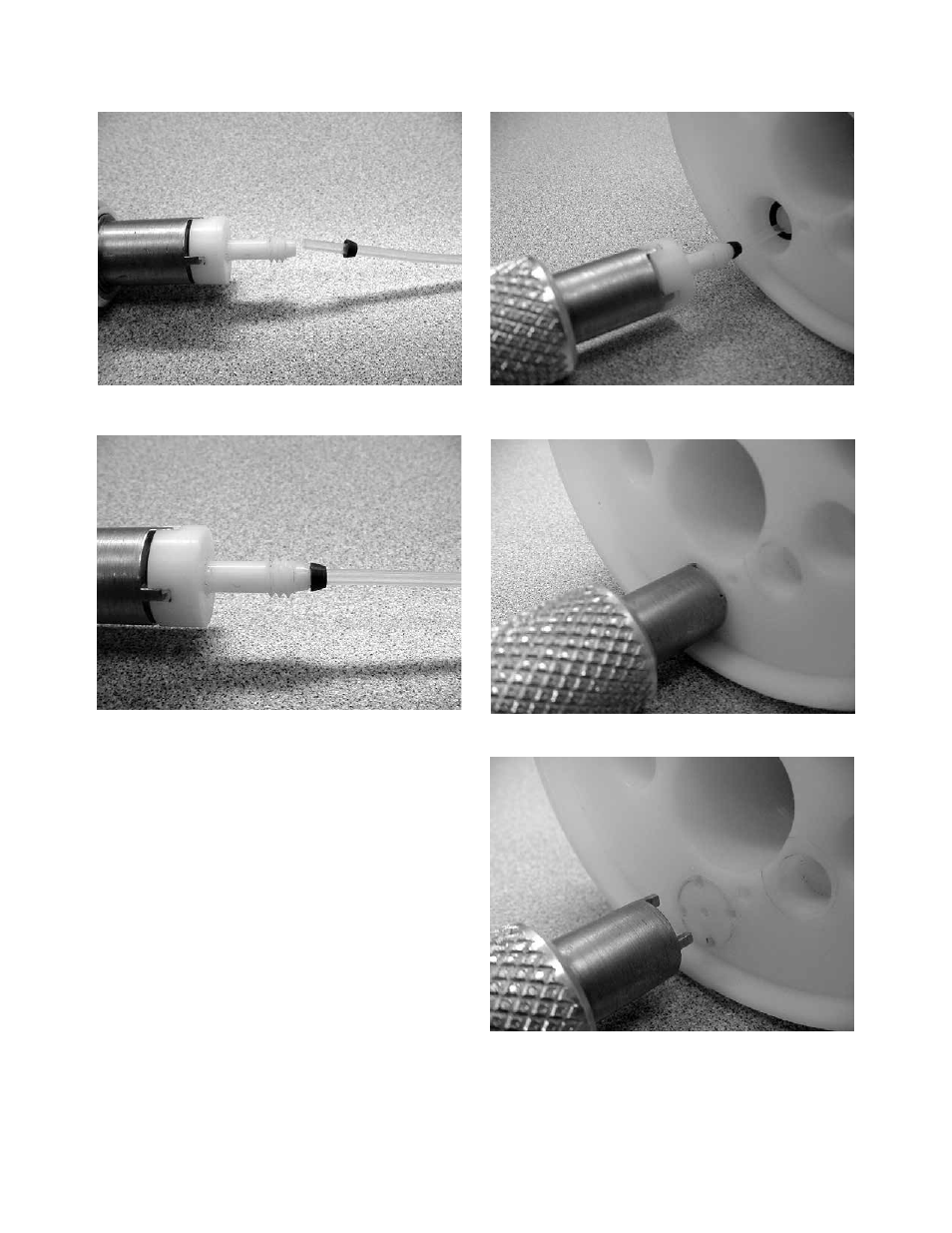

Slide Ferrule Onto Tubing
Fitting Tool Fully Engaged
Gently slide the tubing into the manifold until the
thread of the fitting can be engaged in the manifold.
With the fitting tool fully engaged into the slots of
the fitting, tighten the fitting into the manifold until
the face of the fitting is flush with the manifold.
(See “Tighten Fitting Into Manifold” figures and
“Face of Fitting Flush with Manifold” figure.)
Tighten Fitting Into Manifold
Tighten Fitting Into Manifold
Face of Fitting Flush with Manifold
