MMA-570 DIRECT/INDIRECT CHARGE ROTARY
ATOMIZER MODEL IDENTIFICATION
* Model number and serial number of the atomizer is located on the face of the rear plate assembly.
(See “Important Numbers” in the “Introduction” section.)
PARTS IDENTIFICATION
When ordering, use A13366-ABCDEF as indicated by Tables A, B, C, D, E and F.
Four (12) digits must follow the basic part number.
For Example:
A13366 - 01-01-01-01-01-01
TABLE F, TOOL KIT
TABLE E, HIGH VOLTAGE RING/ELECTRODE ASSEMBLY
TABLE D, SPINDLE ASSEMBLY
TABLE C, SHAPE AIR KIT
TABLE B, FLUID TIP STYLE
TABLE A, BELL CUP ASSEMBLY
BASIC PART NUMBER

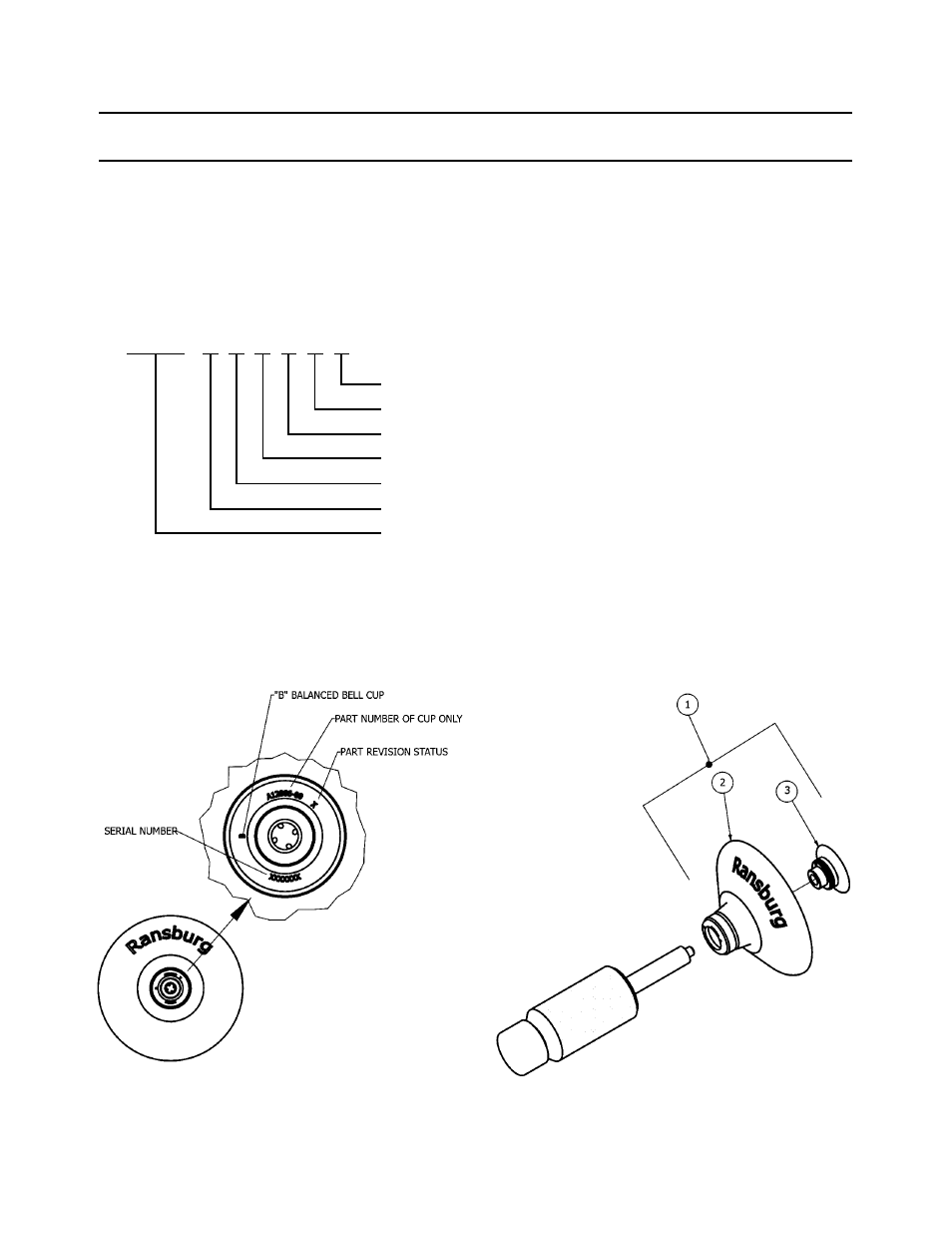

Bell Cup Parts Breakdown Bell Cup Part Number / Serial Number
MMA-570 Direct/Indirect Charge - Parts Identification
