Disassembly/Assembly Electrode Assembly
Before Installing A New or Used Electrode Into
the High Voltage Ring

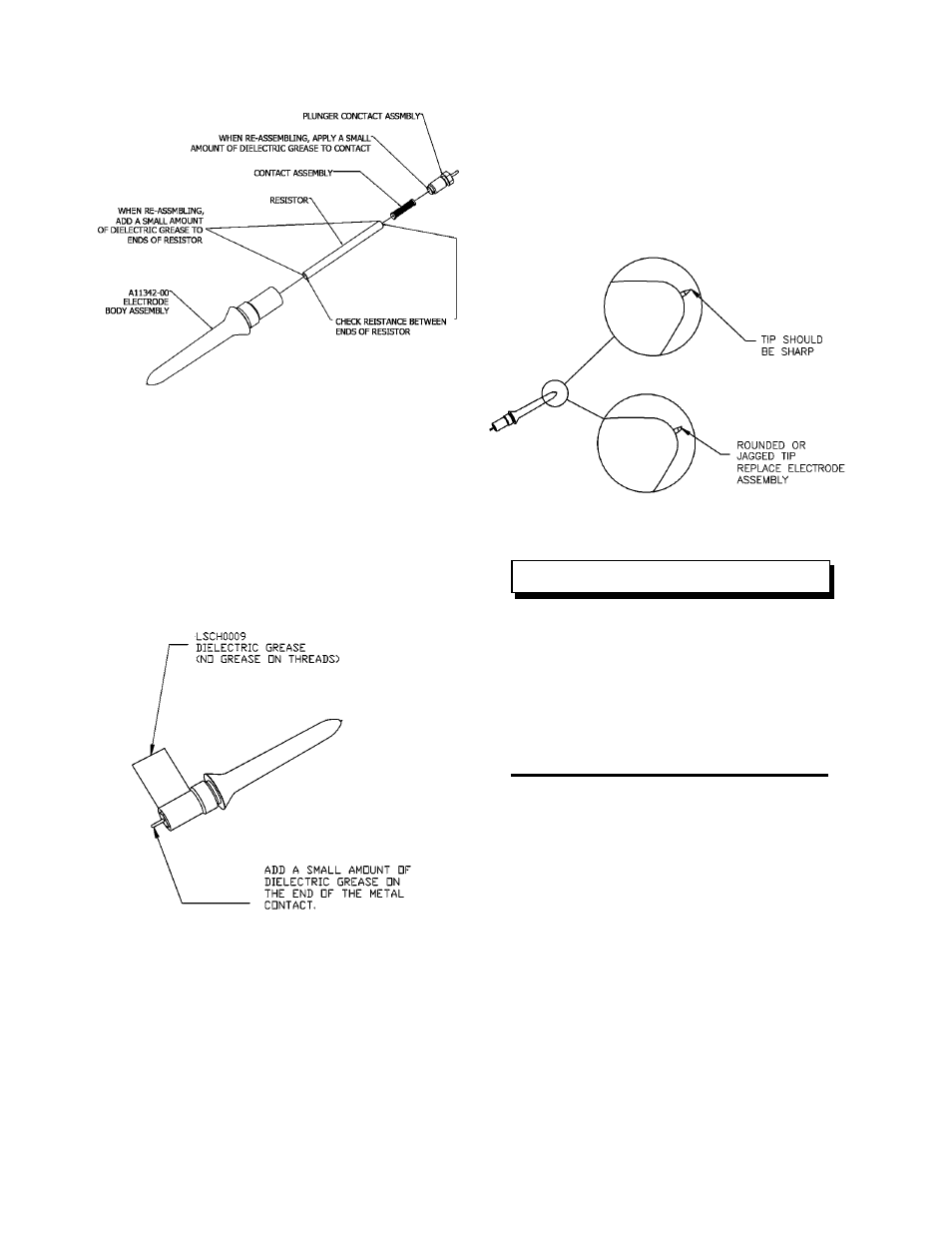

Replace the dielectric grease in the area as shown
in “Replacing Dielectric Grease” figure. A thin film
is all that is required.
Replacing Dielectric Grease
Electrode Tip Inspection
Inspect the electrode tips weekly or sooner. If
a collision has occurred, immediate inspection
is required. The tip of the electrode should be
sharp and pointed. After time, the tip will wear.
† Applications above 5,000-feet Sea
Level: When using the MMA-570 atom-
izer with indirect charge above 5,000-feet
sea level, it must be used in conjunction
with a 78842-00 in-line resistor assembly
and a 78809-00 ground resistor assembly
(see “Indirect Charge Schematic for Use
Above 5,000-Ft. Sea Level” figure).
NOTE
If the tip is rounded or worn jagged, it must be
replaced. Depending on use, electrode tips will
last 3-6 months. The electrostatic field generated
by these electrodes are very important to maintain
paint transfer efficiency, pattern uniformity, and
atomizer cleanliness.
