At the front of the atomizer, examine where the
tube is in relationship to the fitting hole location of
the shaping air manifold. If it is 90° or less than
where the tube exits the atomizer body, you must
install a loop in the tubing as shown in “Installing
Loop In Tubing” figure. Do not kink tubing. Slide
nut (A11276-00) and ferrule (A11305-00) over the
end of the tube as shown.

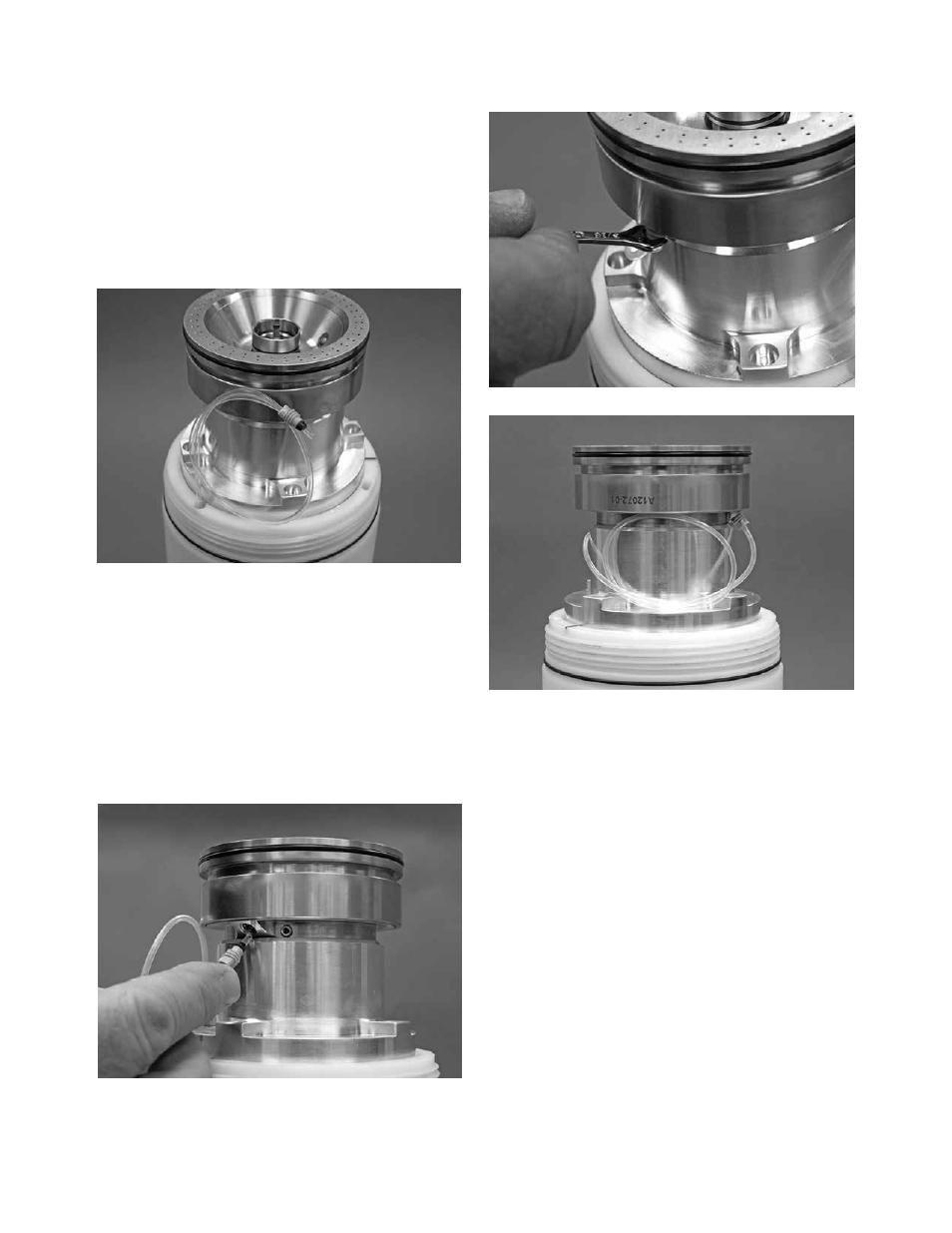

Installing Loop In Tubing
Insert end of tube into hole of shaping air manifold.
Slide ferrule and fitting forward and engage threads
by hand until thread stops. Tighten fitting using a
3/8-inch end wrench. Tighten approximately 1/2
turn more (see “Inserting Tube” figures). Make
sure tubing will not be pinched or kinked when
outer shroud ins installed (see “Inserting Tube”
figures).
Inserting Tube
Inserting Tube
Inserting Tube
Shaping Air Manifold, Solvent Tube
Removal/Replacement
Removal
Remove the outer shaping air ring by turning if off
by hand in a counter-clockwise direction. Remove
the fitting, ferrule, and exterior cup wash line from
the inner shaping air manifold by turning the fitting
in a counter-clockwise direction using a 3/16”
end wrench. Loosen set screw on inner shaping
air manifold with a 5/64” hex wrench enough to
allow manifold to be removed from the turbine
body. Remove the inner shaping air manifold by
turning it off in a counter-clockwise direction. A
1/4-20 threaded screw may be screwed into the
cup wash port to provide additional leverage to
remove the inner shaping air ring.
