NOTE

HIGH VOLTAGE AND GROUND CONNEC-

TIONS FOR SHIELDED / NON-METALLIC

CORE CABLE A10560-XX

†

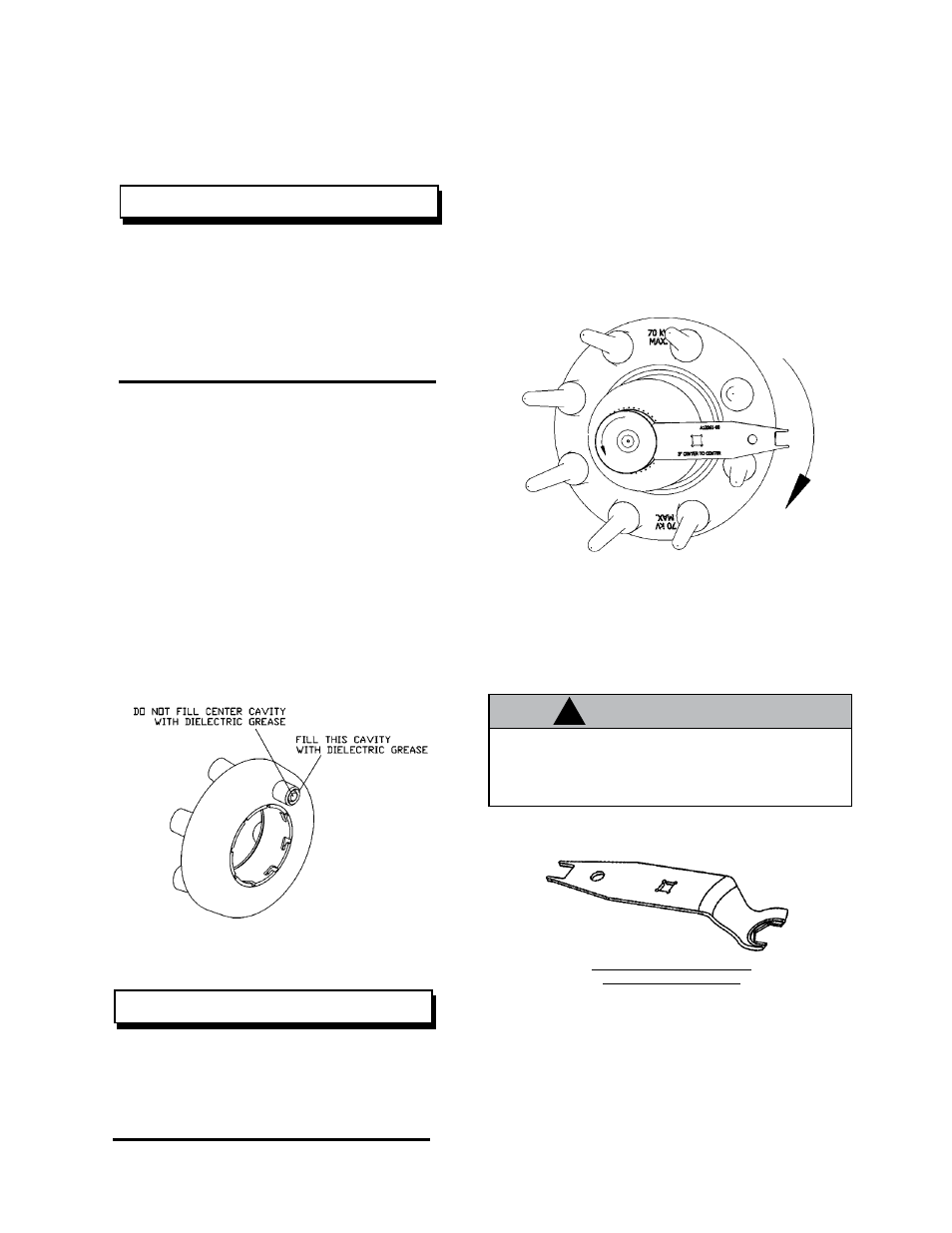

Remove bent tube (A11317-00) and

high voltage locknut (A11318-00) to en-

sure all grooves are filled with dielec-

tric grease before cable installation (see

“78441-00 Ferrule Orientation” figure or

“Atomizer Removal” figure). Remove and

clean any excess grease after assembly.

High Voltage Connection - Cascade End

Insert end of cable (end of cable with the green

grounding wire attached) thru compression nut

of output tube of RansPak™ Cascade (74793-

01) until it bottoms into banana jack receptacle.

Tighten compression nut by hand, then tighten 1/2

turn more with a wrench.

DO NOT over-tighten

as this may damage cable.

Secure green wire with yellow stripe (attached

to high voltage cable) to any known good earth

ground, such as a water pipe, etc., using the at-

tached ring terminal.

Bell Cup Removal / Replacement

Atomizer Removal

Bell Cup Removal

Place the bell cup in a safe, secure place. Carefully

inspect the cup for any damage. If there is any

damage to the cup, it must be replaced.

Bell Cup Wrenches

NOTE

C A U T I O N

!

†

The bell cup should always be the first

component removed if any maintenance

is performed. Following the procedure

will minimize the risk of damage to the

cup itself.

Lay the applicator on its side of a clean and

secure area, preferably an area where regular

maintenance is performed. Using the large open

end of the ball cup/combo wrench (A12601-00)

on the flats of the turbine shaft, carefully hold the

outside of the bell cup with one hand while ap-

plying a clockwise force to the wrench. The bell

cup is a right hand thread and must be turned

counter-clockwise to remove.

†

Failure to replace a damaged bell cup will

cause premature turbine failure. Warranty will

not be honored if the bell cup is damaged.

A12061-00 BELL CUP WRENCH

USE WITH ALL BELL CUPS

MMA-570 Direct/Indirect Charge - Maintenance

Ransburg

LN-9279-13

57
