(3) Select a saving path of the edited recording by click Browse button and then click OK button;
(4) Open the new recording file, you will find the selected frames be missed.

12.10. Search

Action: select menu View => Search

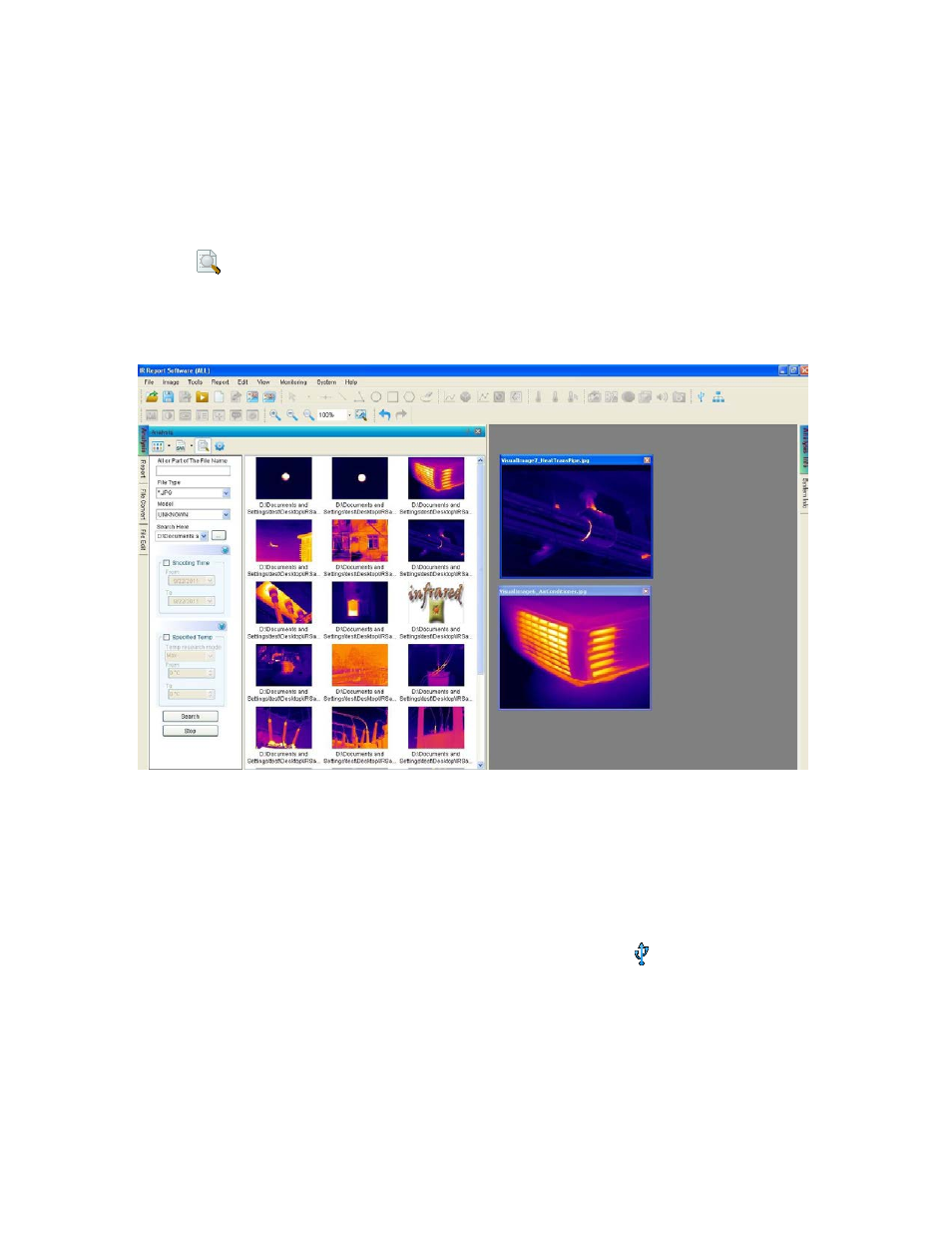

For PROversion, in Analysis or Report or File Convert or File Edit mode click search

shortcut

. Input file name or file type or file shooting time or file temp range and then click

Search button. User can manually stop searching by clicking Stop button. The researched file
thumbnails are all displayed beside the folder tree. User can open the researched files by three
methods: 1) dragging selected thumbnail and drop it to right blank container; 2) right clicking on
thumbnail and selecting Open from popup menu; 3) double clicking the thumbnail.



13. MONITORING

13.1. USB Connect

For the USB or ALL version, through USB to connect an IR camera, perform real time monitor and
analysis of thermal image. See IR camera manual about USB connection.

Action: menu Monitor => USB Connect or click USB Connect shortcut

=> select a model =>add a

calibrated temp table(you cannot connect a USB camera without selecting a calibrated temperature
table file) => select a temp range (you just need to set calibrated temperature range (i.e. A, B, etc.) in
the USB Software if you want to see temperature values in the software only and does not need to be
executed in the camera itself selecting A or B etc.)
=> input temp parameters(emissivity, distance,
ambient temp, relative humidity and temp correction) => click OK button.
