General Tools and Instruments GTi10-20-30-50 User Manual
Page 123

57

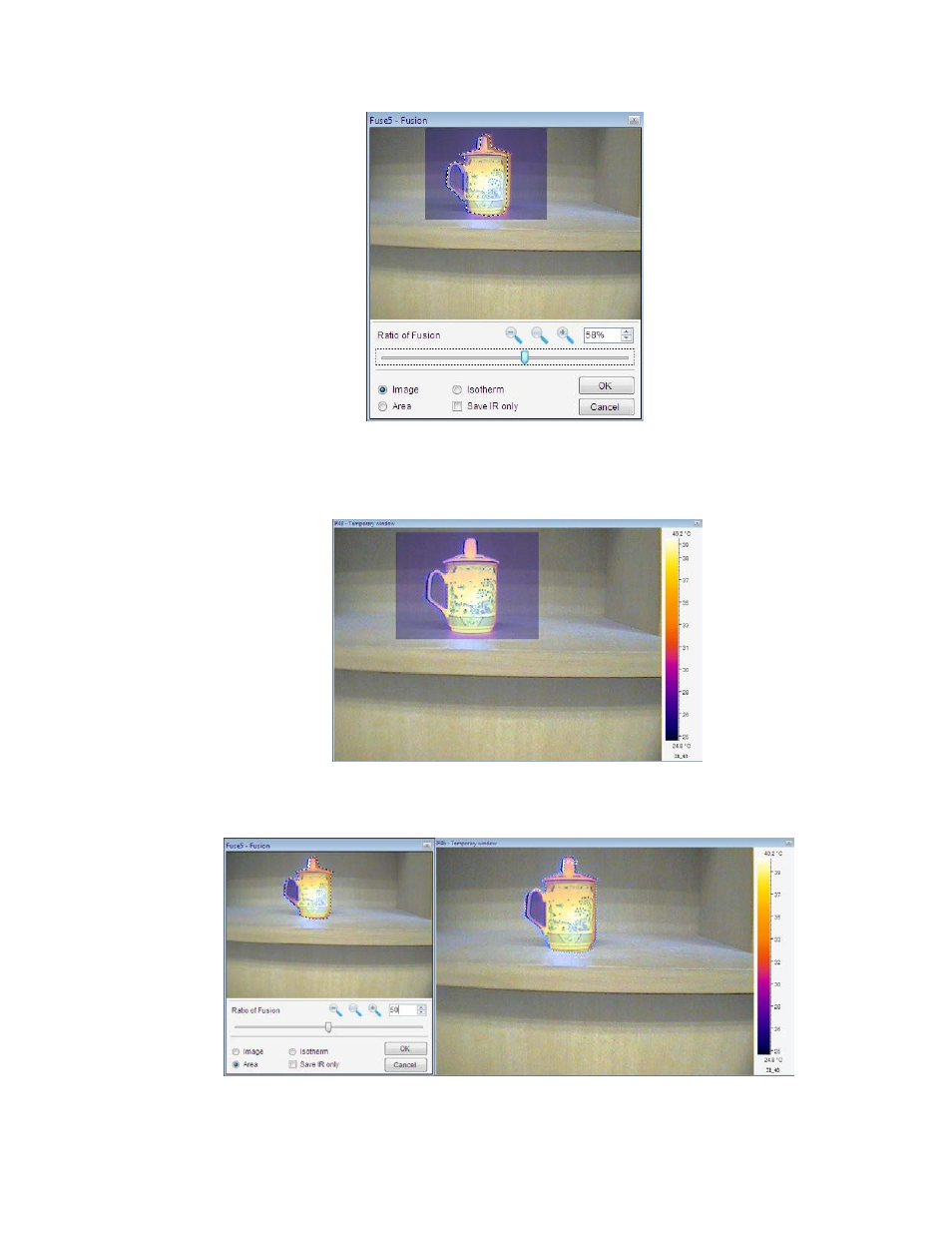

(7) Adjust the blending CCD ratio by moving the scroll bar button;
(8) Select fusion type:
A
. Select IR Image: IR image is fused with CCD file that is without tool.
B、
Select Area (also user can add tools for fusion, for example, add a rectangle in the
following window); and then click OK button, the result is that only tools be fused with
CCD.
C、
Select Isotherm, and select a isothermal area in the palette. Click OK button.
