Chapter 5: Control Interfaces
5.12 Profinet Interface
The Profinet communication interface allows slave connection to PLC networks that support Profinet
communication via TCP/IP.
Maximum I/O data is 512 input bits & 512 output bits. FEC Inputs match the discrete input layout. FEC
Output location is programmed using the AFC User Console Software.
FEC integrates the Profinet board manufactured by HMS Fieldbus Systems AB into the Multi-2 Unit’s
modular I/O board. For further technical information on the Ethernet-I/P interface go to the HMS
website. (
www.hms.se )

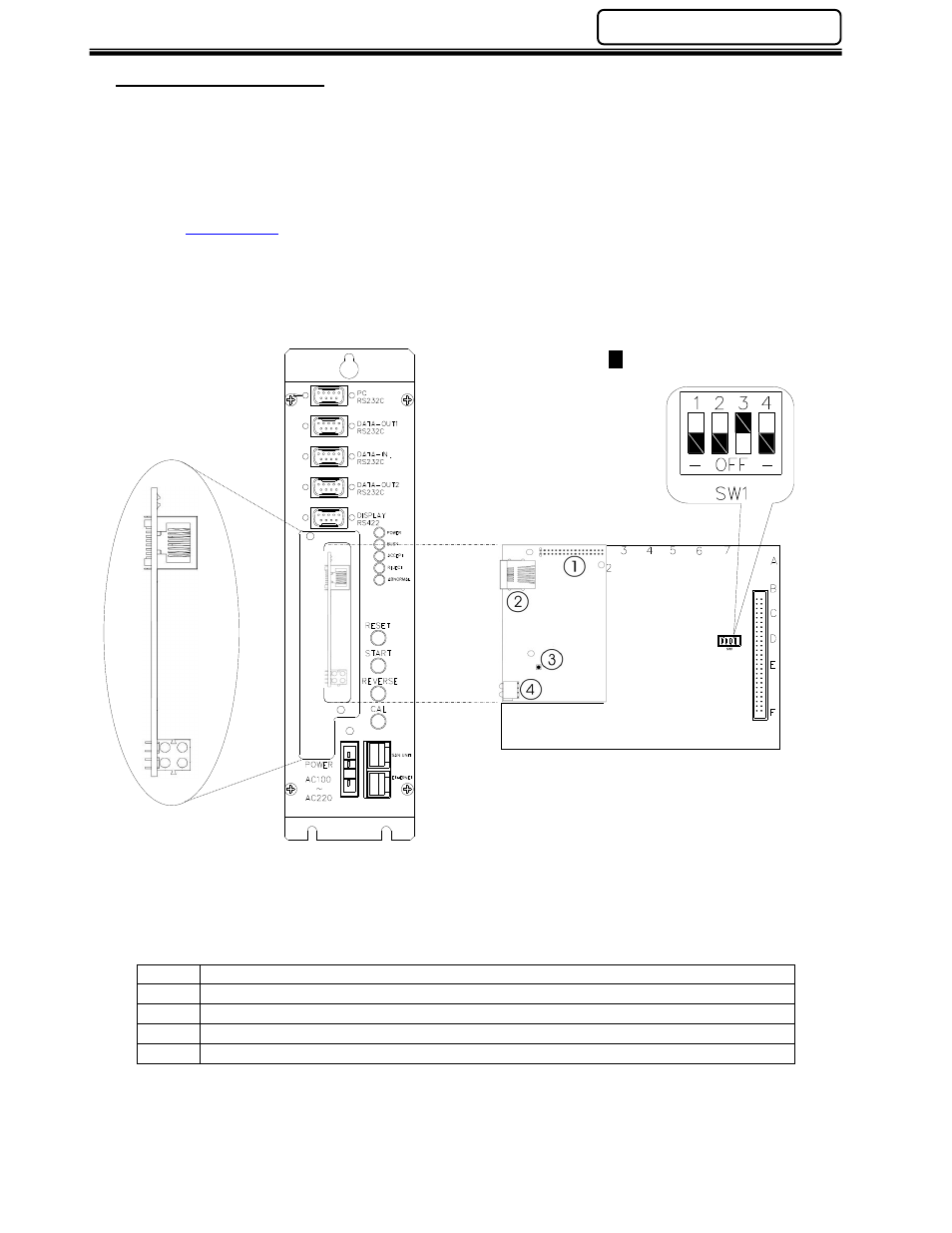

Item Anybus Board Description
1 Application Connector
2 Ethernet Connector
3 Anybus Watchdog LED (Factory Use Only)
4 Status LEDs (4)
2
1
3
4
5
- Represents switch position
