Chapter 5: Control Interfaces

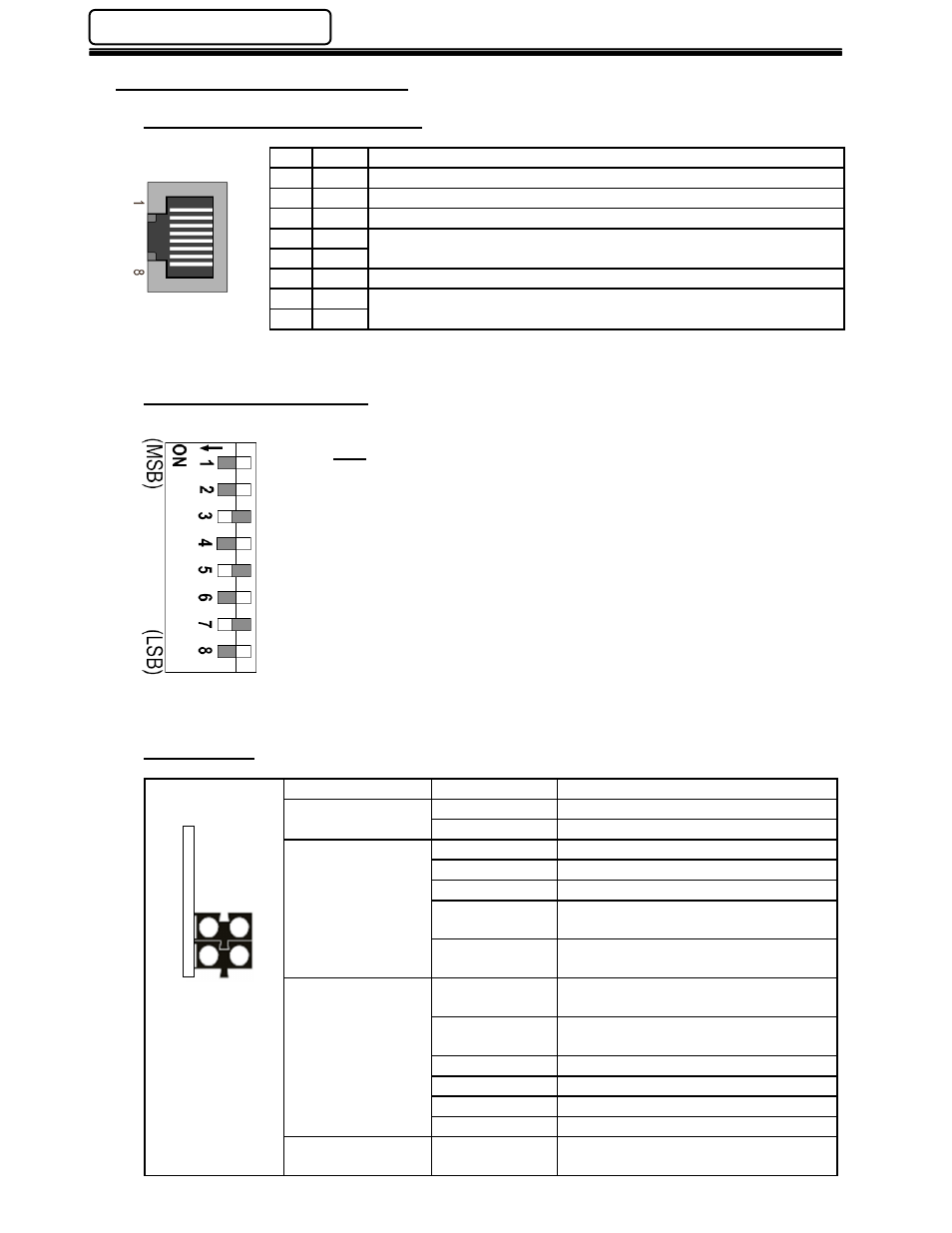

5.11.1 Component Descriptions
Fieldbus Interface Connections
Pin Signal
1 TD+
2 TD-
3 RD+
4 -
5 -
6 RD-
7 -
8 -
Configuration DIP Switch
This switch is not used for FEC IP configuratio
OFF
below) “Fieldbus Configuration” feature.
Status LEDs
LED
1 - Link
2 - Modul
3 - Network Status
4 - Activity
1
2 3
4
AFC1500 Multi-2 Unit Hardware
PAGE 5 - 56
5.11.1 Component Descriptions
Connections
Signal Note
Normally left unused; to ensure signal integrity, these pins are tied
together and terminated to PE via a filter circuit in the module.
Normally left unused; to ensure signal integrity, these pins are tied
together and terminated to PE via a filter circuit in the module.
DIP Switch
This switch is not used for FEC IP configuration and should be set to all
OFF. The IP address is set-up using the AFC Software (see 5.11.2
below) “Fieldbus Configuration” feature.
LED State Description
Off No Link Established
On Link Established
Module Status
Off Not Powered / Not Online
Green solid Controlled by scanner in run state
Green flashing Not configured or scanner in idle state
Red solid
A major unrecoverable fault has been
detected.
Red flashing
A minor recoverable fault has been
detected.
Network Status
Off
No power to device or no IP address
has been set.
Green solid
Online. One or more connections
established.
Green flashing Data size bigger than configured.
Red solid Duplicate IP address. Fatal error.
Red flashing One or more connections timed out.
Green / Red Self test in progress
Activity Green
Flashes each time a packet is
transmitted or received.
Hardware Manual (Rev2.1)
Normally left unused; to ensure signal integrity, these pins are tied
t in the module.
Normally left unused; to ensure signal integrity, these pins are tied
together and terminated to PE via a filter circuit in the module.
n and should be set to all
up using the AFC Software (see 5.11.2
Description
ed / Not Online
Controlled by scanner in run state
Not configured or scanner in idle state
A major unrecoverable fault has been
A minor recoverable fault has been
No power to device or no IP address
Online. One or more connections
Data size bigger than configured.
Duplicate IP address. Fatal error.
One or more connections timed out.
Flashes each time a packet is
transmitted or received.
