MOD 30ML Multiloop Controller
OPERATION
3-22

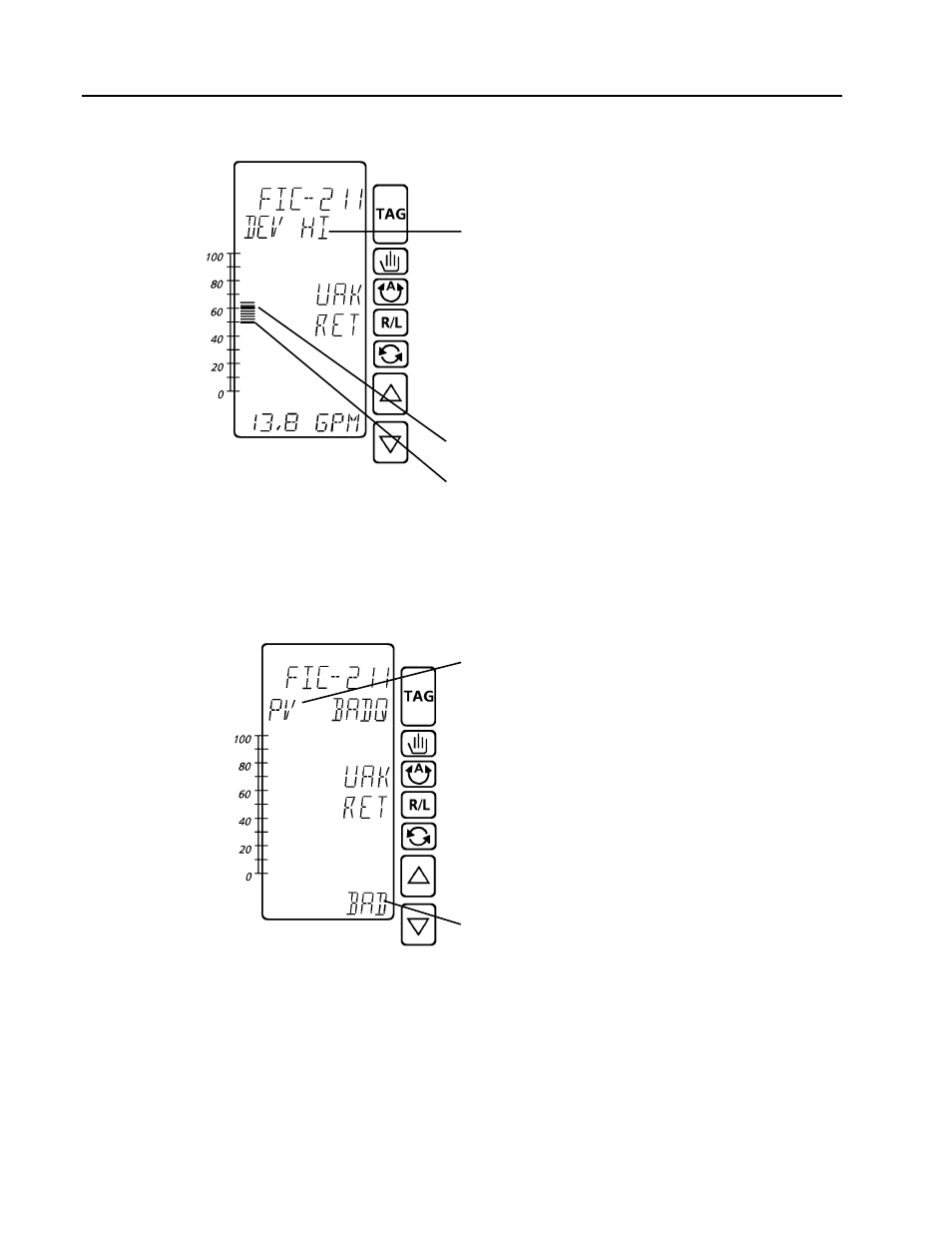

Set/Process Deviation Alarm Display
[DEV] indicates that this display applies to set-
point/process deviation.
[HI] indicates that the alarm is activated by increasing
deviation.
[UAK] indicates that the alarm is active and has not
been acknowledged. Press the ‘A' key to
acknowledge the alarm. If alarm is still active [ACT]
appears . If alarm is no longer active [CLR] appears,
and this display is deleted upon exit.
[RET] indicates that the R/L key can be pressed to
return to the runtime displays.
Intensified segment indicates alarm trip point.
Intensified segment at mid scale indicates the zero
deviation point.
Current deviation value is above the trip point.
Alarm remains active [ACT] after
acknowledgement.
Data Quality Alarm Display
[PV] indicates that this display applies to the quality of
the process variable input.
[BADQ] indicates that the input data quality is bad
based on the configured data requirements.
[UAK] indicates that the alarm is active and has not
been acknowledged. Press the ‘A' key to
acknowledge the alarm. If alarm is still active [ACT]
appears . If alarm is no longer active [CLR] appears,
and this display is deleted upon exit.
[RET] indicates that the R/L key can be pressed to
return to the runtime displays.
Data values are not displayed because quality is
bad.
