MOD 30ML Multiloop Controller
OPERATION
3-16
3.11 SINGLE LOOP OPERATION IN MANUAL

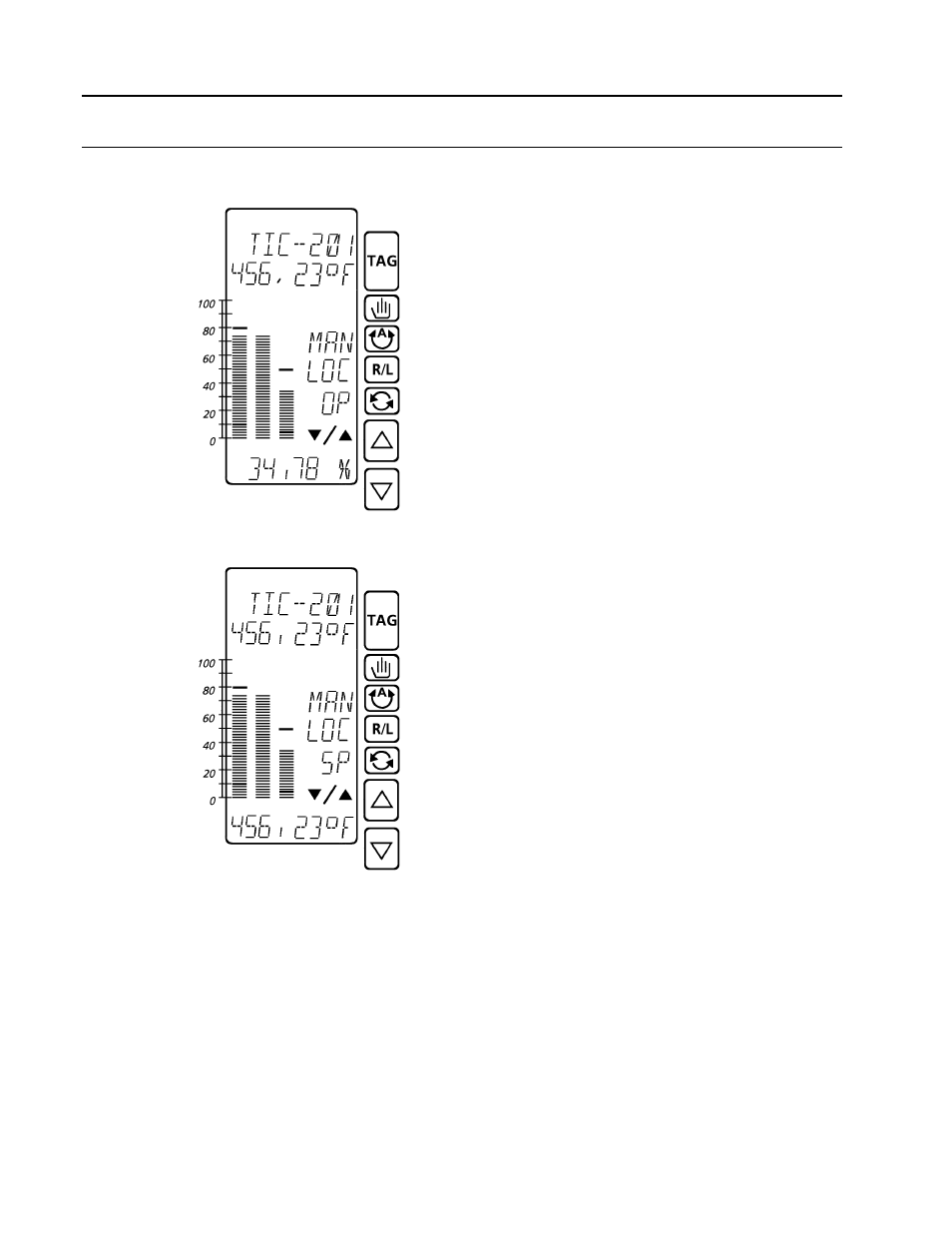

This section describes operations when a control loop is in manual. The front panel displays
and control key operations resemble the examples below.
[MAN] indicates that the control loop is in manual
mode.
[LOC] indicates local set-point, [RMT] indicates remote
set-point.
[OP] indicates that the current control output value in
percent is displayed on Line 6 (bottom line).
∇/∆ arrow display indicates the control output can be
changed in manual.
Press the scroll key to make local set-point adjustment
available.
[LOC] indicates local set-point.
[SP] indicates that the current set-point value is
displayed on Line 6.
∇/∆ arrow display indicates the local set-point can be
changed in manual.
