MOD 30ML Multiloop Controller
OPERATION
3-6

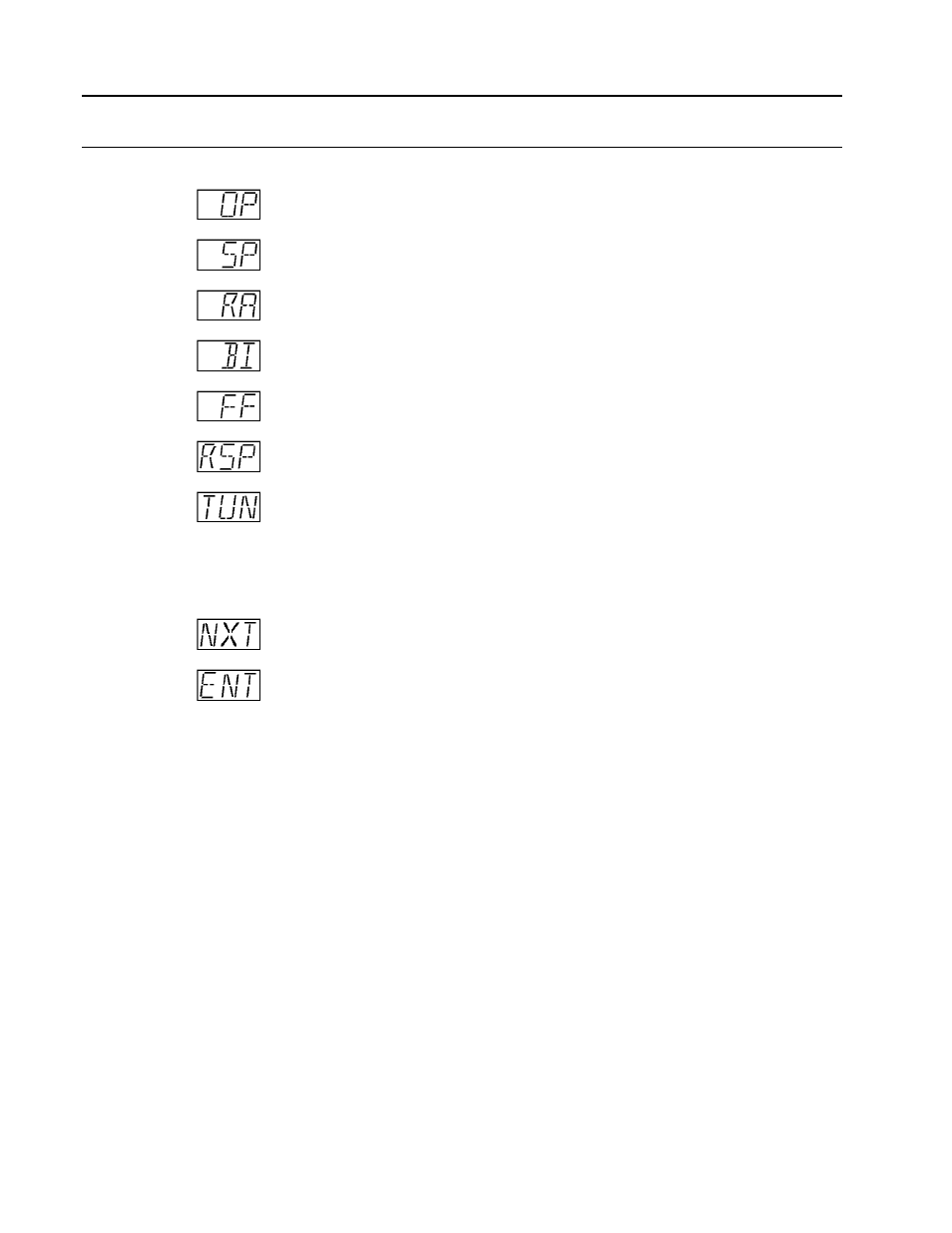

3.4.4 Line 5 Displays
This is the 3-character status display located next to the scroll key.
Output: Control output in percent is being displayed on Line 6.
Set-Point: The active local set-point value is being displayed on
Line 6.
Ratio: The ratio function has been enabled for this control
loop. The ratio value is being displayed on Line 6.
Bias: The bias function has been enabled for this control
loop. The bias value is being displayed on Line 6.
Feed
Forward: This control loop has a feed forward input. The input value
is being displayed on Line 6.
Remote
Set-Point: The active set-point is obtained from a remote source. The
set-point value is being displayed on Line 6.
Tune: This prompt appears following [SP] in the scroll
sequence. Line 6 displays [TUNE???] . The Up ( ∆) and
Down ( ∇) (∇) keys can be used to select [CONTROL]
or [ALARM] tuning, and the tune sequence can be
entered by pressing the scroll key when [ENT] is
flashing.
Next: Instrument is in the Tune mode. The scroll key can be
used to advance to the next tuning parameter.
Enter: Flashing display permitting entry of the tuning parameter
value displayed on Line 6. The scroll key can be used to
enter the value. Display times out when there is no entry
action.
