MOD 30ML Multiloop Controller
OPERATION
3-5
Unacknowledged
with Bad Quality: An unacknowledged alarm is present and the alarm input
has bad quality. The A key can be used to acknowledge the
alarm on the input. Bad quality must be separately
acknowledged on a Data Quality Alarm Display.
Acknowledged
with Bad Quality: An alarm on an input with bad quality has been
acknowledged but is still active (alarm condition still exists
and bad quality remains unacknowledged).
Clear: An alarm has been acknowledged and is no longer active.

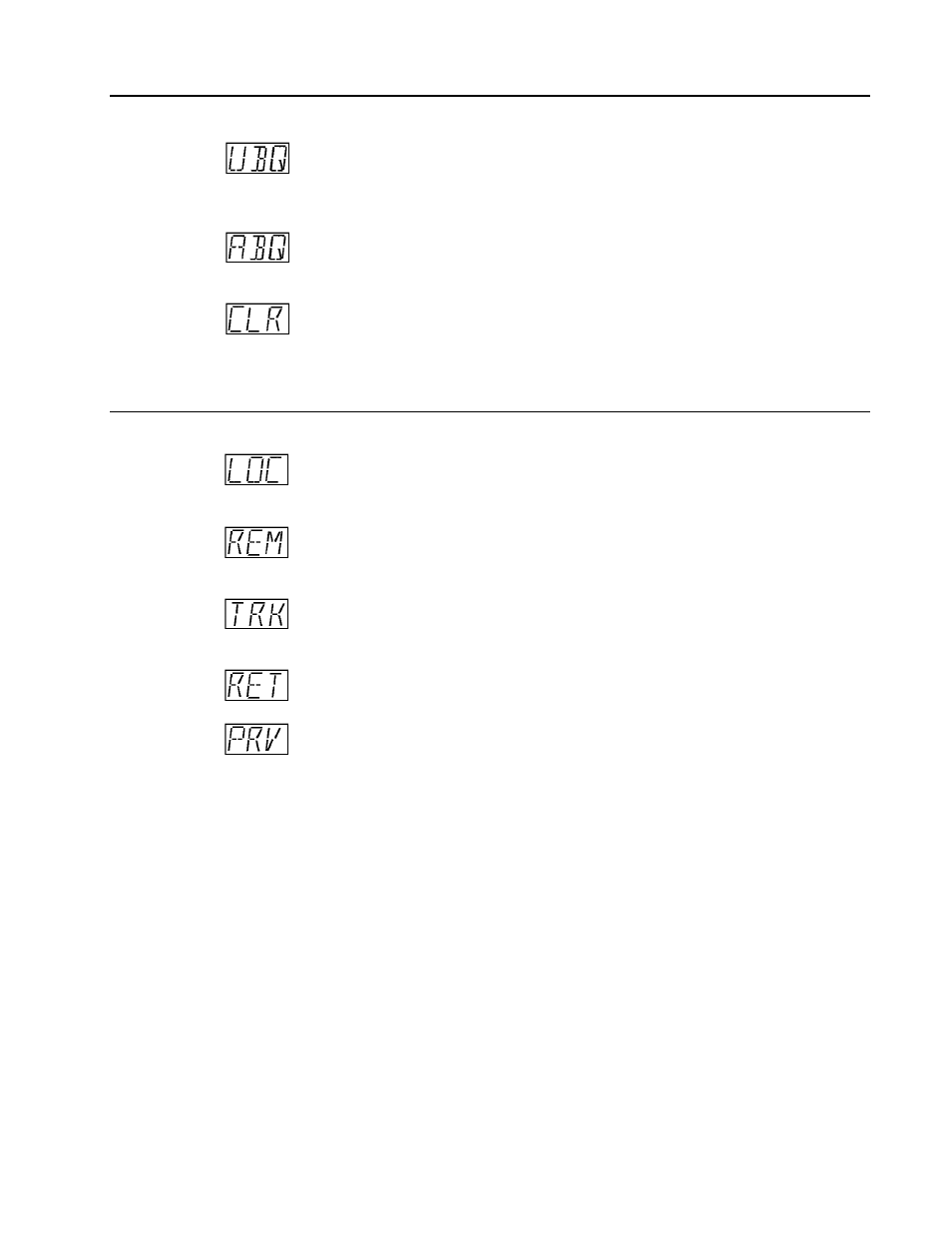

3.4.3 Line 4 Displays
This is the 3-character status display located next to the R/L key.
Local: Set-point is derived at the instrument and can be
adjusted using the Up (
∆) and Down (∇) keys. Line 6
displays the Set-point value.
Remote: Set-point is derived from a remote location and is
brought into the instrument through the built-in input
circuit or an input module.
Track: Controller is in manual and set-point is tracking the
process input to provide a bumpless transfer when the
controller is switched to auto.
Return: An alarm display is present on the front panel. The R/L
key can be used to return to the runtime display
Previous: Instrument is in the Tune mode and [NXT] appears on
Line 5. The R/L key can be used to return to the
previous tune parameter.
