Installation and adjustment
Create
d
by EBCCW
0
0
:06
49 5112204
Adjustment procedure, See section 7.2.2 on page 61

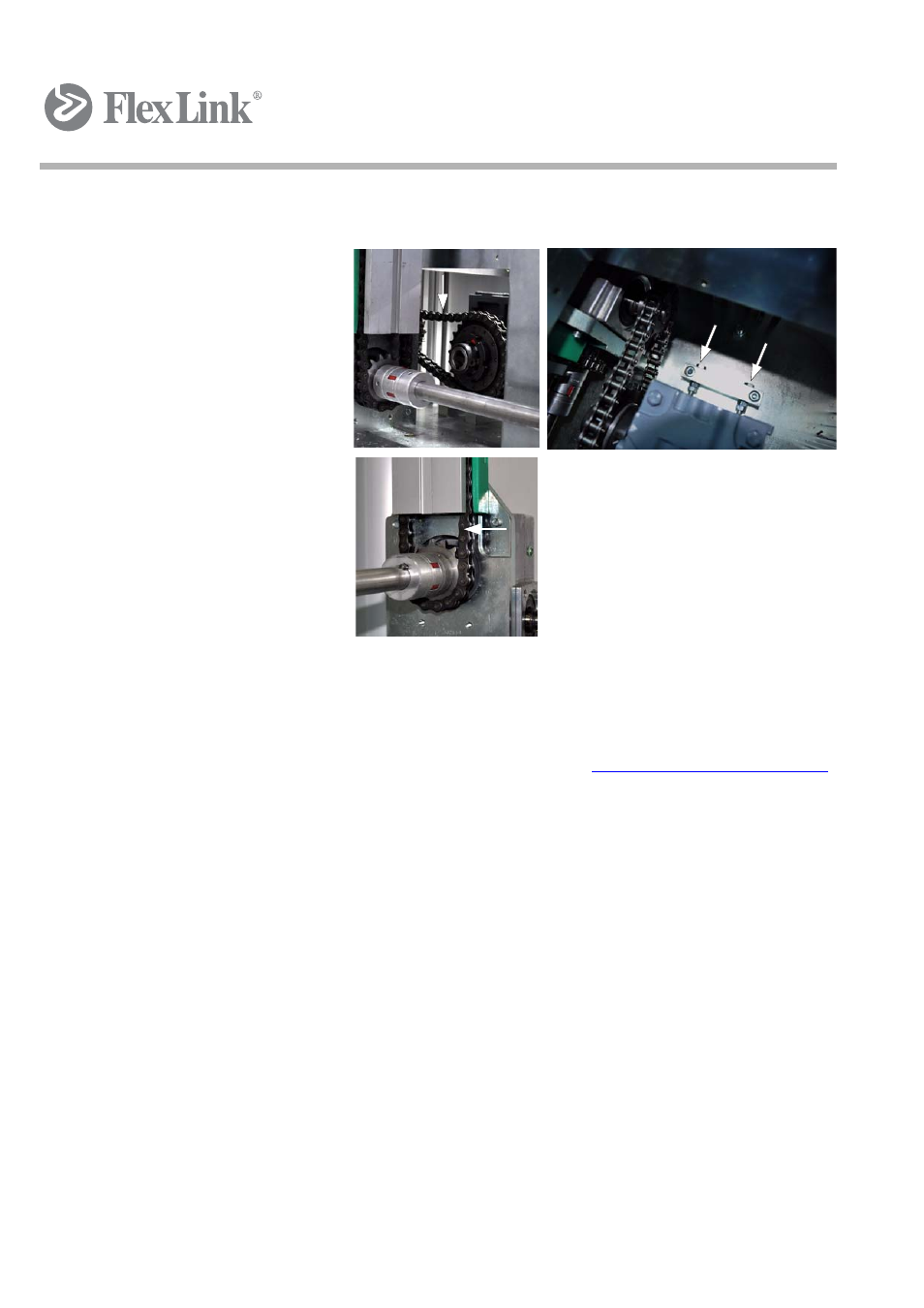

Figure 25 Drive and drift chain adjustment
5.5.4 Connecting tracks
Elevator lift cage conveyor speed see Technical specification on page 15
The optimal speed of the connecting tracks is equal to elevator lift cage
conveyor speed as this prevents product twisting and wear of the high fric-
tion conveyor plates.
The speed difference may not exceed 15%.
If speed difference is unavoidable, an increasing speed is preferred.
5.5.5 Guards
The elevator consists or moving parts that can cause injury. Feed-in and
feed-out are covered by stationary and openable guards. The elevator may
not be operated if the door switch is inoperable or if a stationary guard is
improperly fitted.
Adjustable screws
5-10 mm
2-3 mm
