Introduction function and components
32 5112204
3.2.1.5.3 Limit switches
This does not apply to RTI units. These should be protected by the appli-
cation.

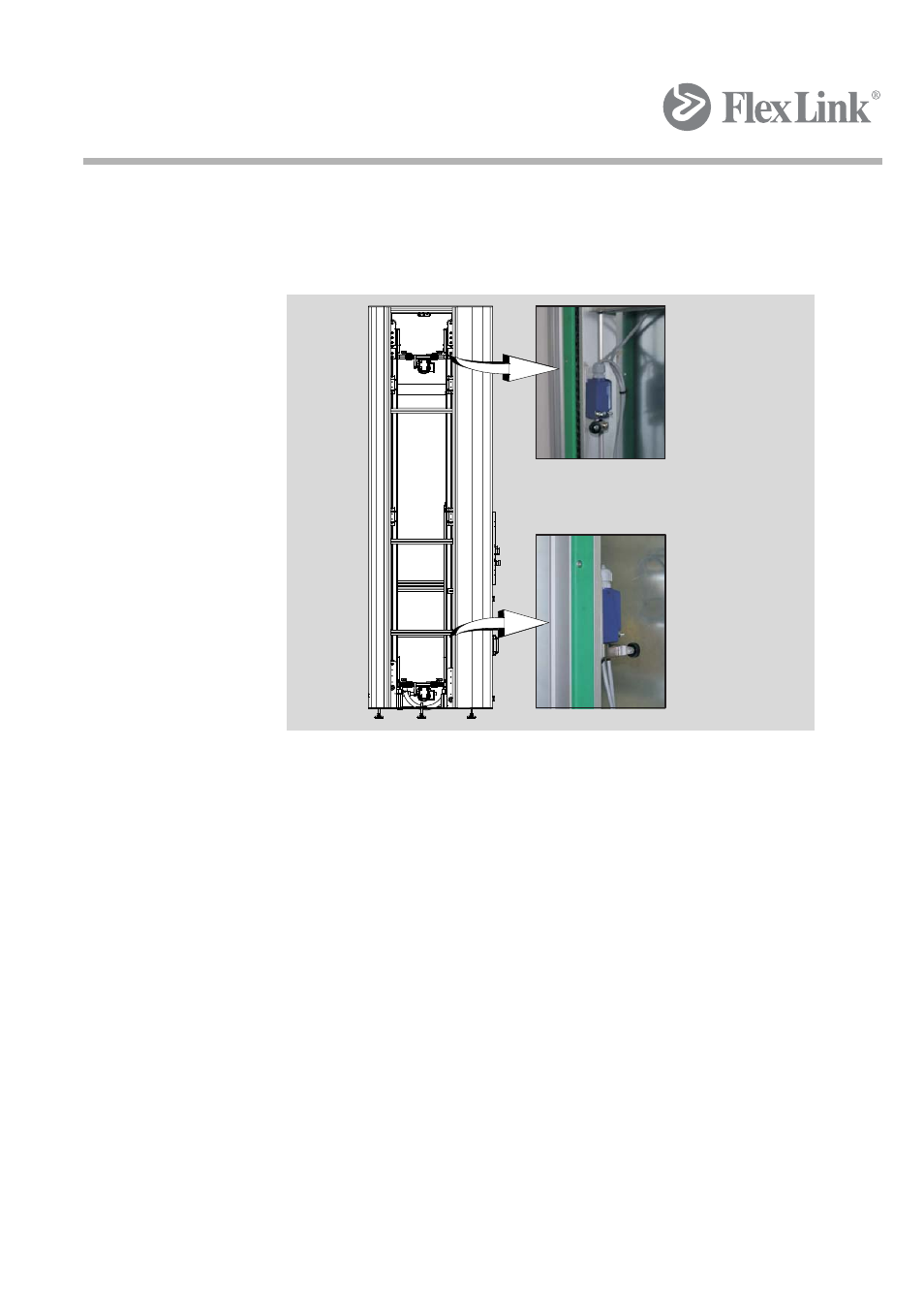

Figure 15 Limit switches
The limit switches are located in the upper and lower parts of the frame and
are activated in the event of excessive lifting device travel.
The upper limit switch interlock the vertical motion upwards electrically and
vice versa for the lower limit switch. Thus, activating the lower limit switch
still allows upward motion.
Mechanical dampers serve as protection after the limit switches.
To assure correct operation of the elevator, ensure that the switches are
correctly positioned and are activated in the intended direction of travel.
