Introduction function and components
24 5112204
3.2.1 Components
3.2.1.1 Electrical cabinet
The electrical cabinet is fitted in the front of elevator. The door is equipped
with the required means of maneuvering (pushbuttons/lamps) and module
electrical main switch.
The main switch do not disconnect 24 V DC power supply to module.

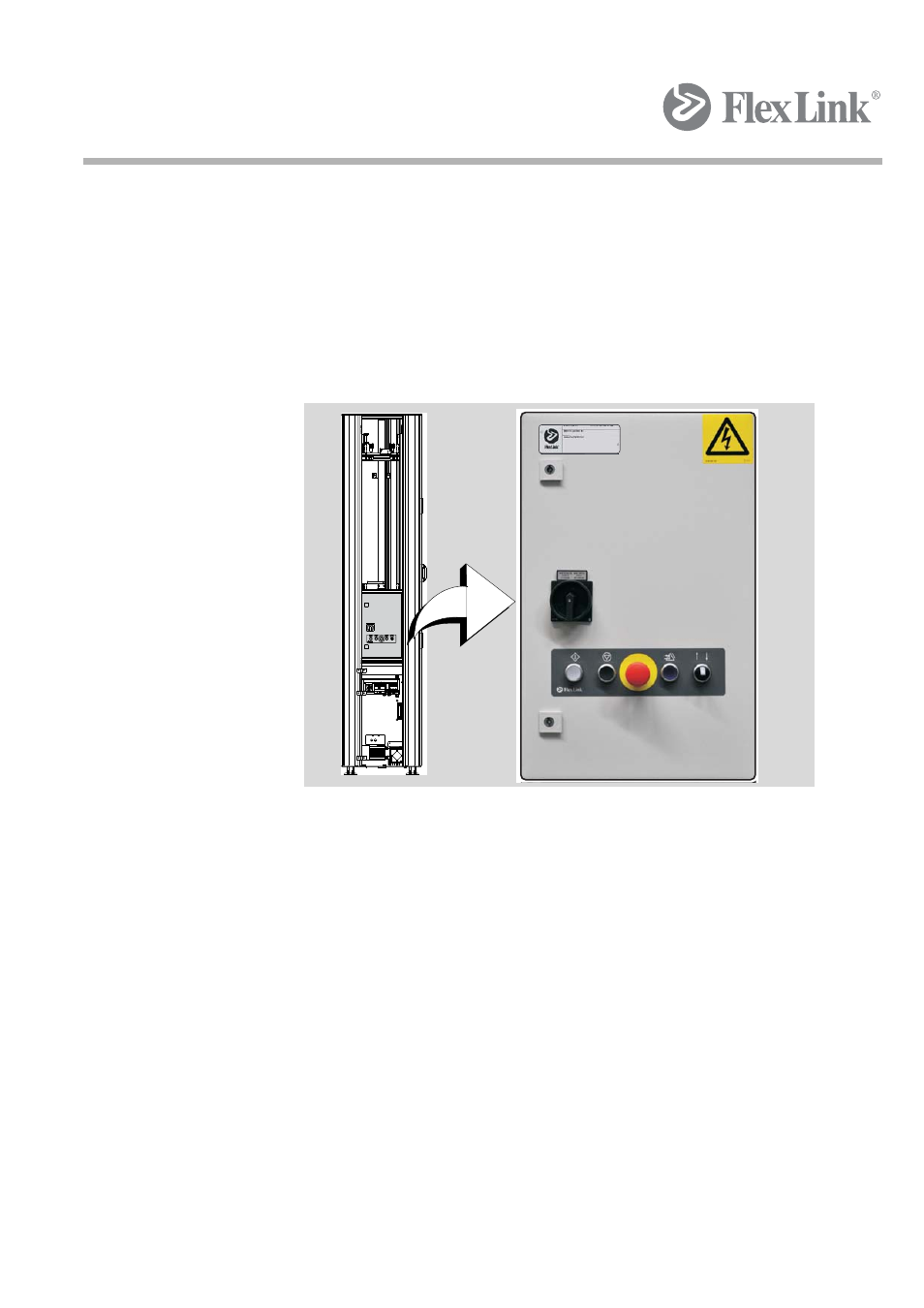

Figure 8 Electrical cabinet
The through-puts in the bottom of box is according to module version, see
electrical drawings. In the bottom is also the fast-connectors for fieldbus
positioned.
Inside the electrical cabinet is the module safety system, fieldbus commu-
nication interface, circuit breakers, etcetera.
The safety system design depends on version. Profibus and DeviceNet
versions include a safety relay to which the door is connected. Profisafe
version do not contain any safety relay. Common for all versions is that mo-
tor supply voltage is disconnected at emergency stop through main contac-
tors.
In the bottom of cabinet is an earth rail for cables. There is also one earth
terminal for each terminal group.
