Introduction function and components
Create
d
by EBCCW
0
0
:06
31 5112204
3.2.1.5.2 Vertical motion

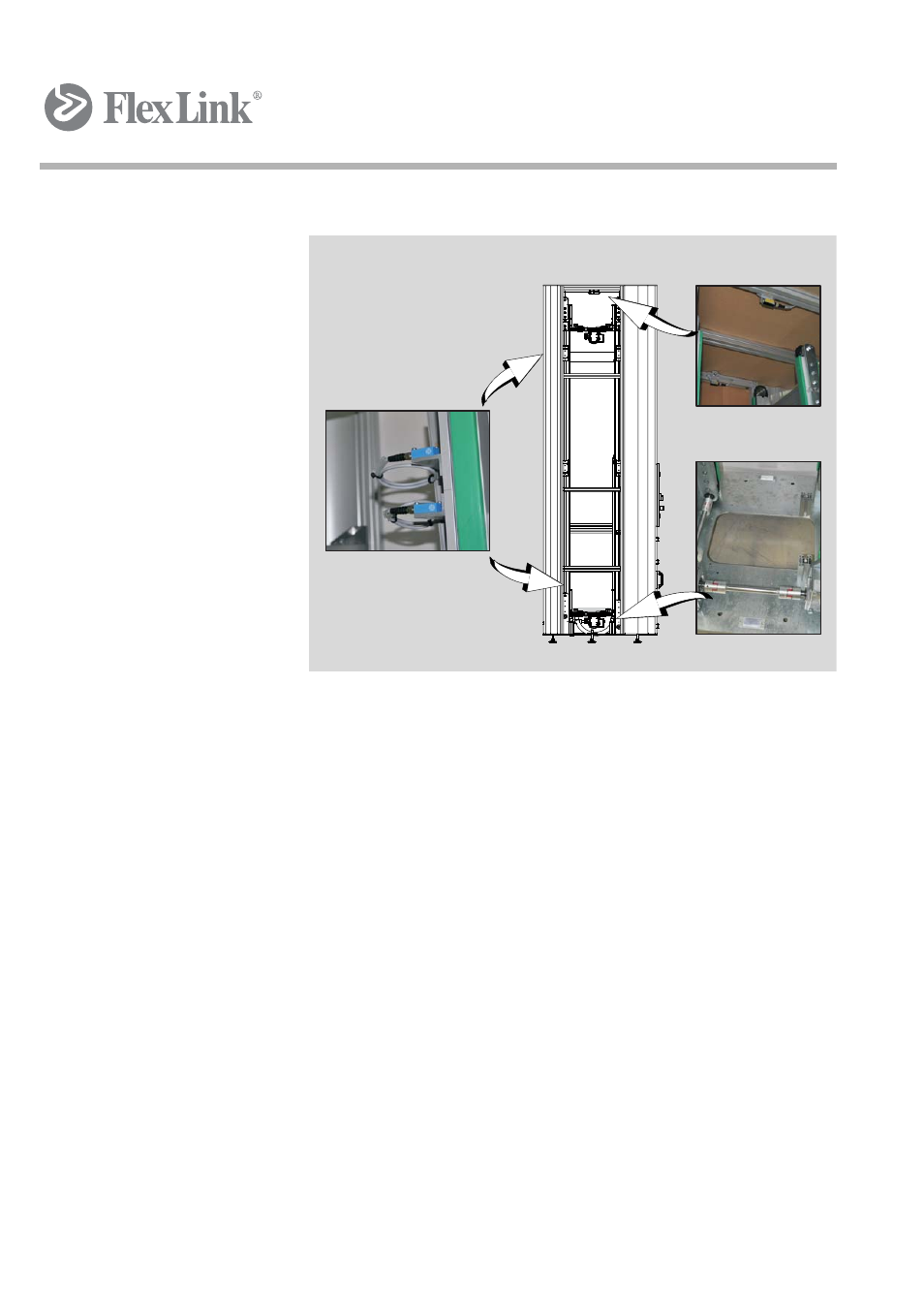

Figure 14 Inductive sensors
Vertical motion sensors
Inductive sensors are used at stop positions and low-speed stretches of the
vertical motion.
Interlocking sensors
Retro-reflective photo-electric sensors are mounted in the upper part of
frame with reflectors mounted on the bottom plate of elevator. Their pur-
pose is to interlock vertical motion if obstacle is detected.
Vertical motion
position sensors
Lifting interlock sensor
Lifting interlock sensor
reflector
