Safety
8 5112204
1.3.1 Safety system architecture
The safety system architecture varies depending on elevator version.
Elevators require motor supply voltage and permanent 24V DC power sup-
ply for communication devices. Motor supply voltage depends on version
(50 Hz version: 400 V AC, 60 Hz version: 480 V AC).
Safe 24V DC (disconnected at emergency) is not used although the eleva-
tor provides means for passing on the power.
1.3.1.1 Profibus/DeviceNet versions
Emergency switch
The purpose of the safeguard is to be part of the line global emergency
safety system and affect the motor power supply to the elevator.
In case of emergency, the motor power supply to elevator shall be discon-
nected (stop category 0, EN60204-1).
Door switch
The elevator is equipped with a service door for access inside. Opening the
door results in a elevator internal disconnection to motors (stop category 0,
EN60204-1).

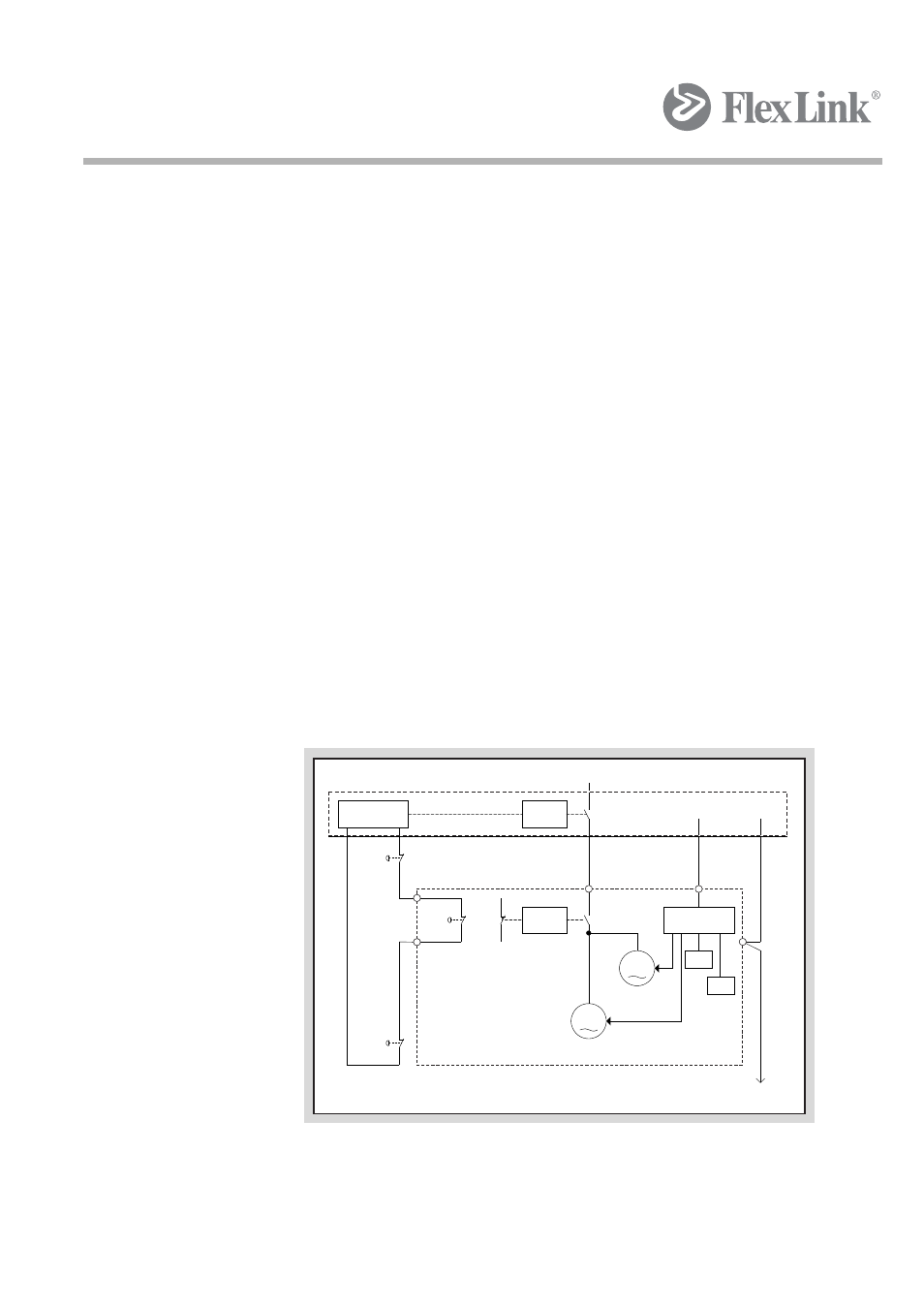

Figure 2 Profibus or DeviceNet version
Safety
system
Line main cabinet
Safety
system
Door
switch
M
Vertical
motion
ES
M
Horizontal
motion
Motor supply voltage (V AC )
24V
DC
Line global
emergency
switch loop
Elevator
ES
Emergency
switch loop
Comm.
interface
ES
Permanent
I/O
24V
DC
Safe
I/O
Safe motor
supply voltage (V
AC
)
