4. Interconnection

82

031-132-B0-001 Rev. A

TM

©2000

4.3

Connectors, continued

5($5
9,(:

5($5 9,(:

:,5( 6,'(

-

The interface control (J6) is a 2-pin (1x2 row) Mini Mate-’N’-Lok style

connector. See Fig. 4-9, item 16 for location.

Pin

Description

Function

1

Line 1, 120VAC AC Sense

The Line side that powers the ECM and

Power PCB, and provide AC line sense to

start the APU

2

Line 2, Neutral

The Neutral side the incoming line power.

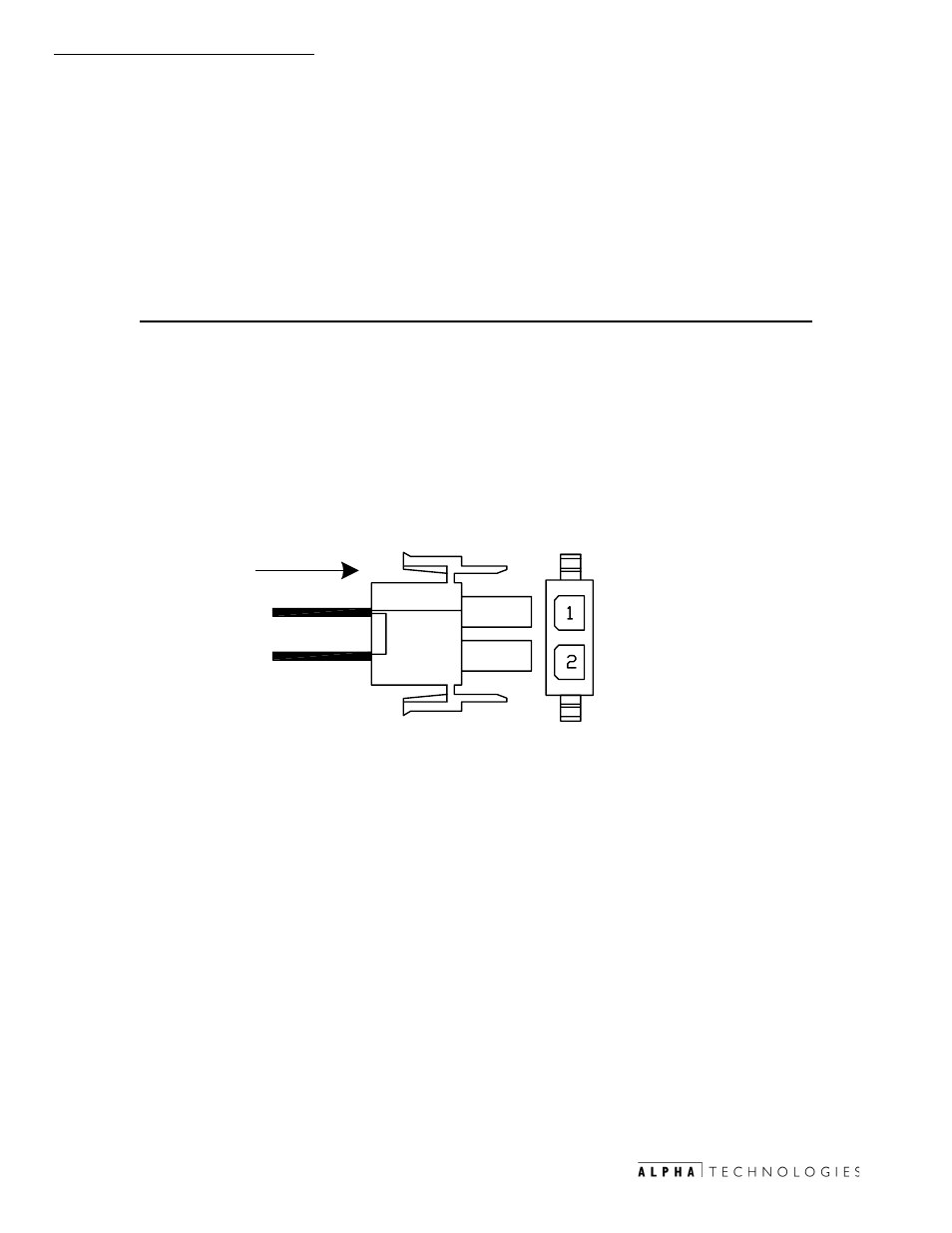

4.3.16 ECM - AC Sense 120/240V Interface

Fig.4-17 AC Sense, 120/240V Interface
