4. Interconnection

68

031-132-B0-001 Rev. A

TM

©2000

4.3

Connectors, continued

4.3.2 Low Fuel Pressure Interface Connector

The interface control is a 2 pin Mini Mate N’ Lok connector (Near gas

solenoid). See Fig. 4-1 for location.

Pin 1 = +12VDC activates (opens) solenoid ONLY when APU is running.

Controlled by APU engine ON command.

Pin 2 = Solenoid common (negative) connection.

Pin

Description

Function

1 Low Fuel Pressure Sensor Contact

CLOSED (LOW signal)

denotes Low Fuel Pressure

(LPV Versions only)

2 Low Fuel Pressure Common

Return signal path for sensor

/)3

72

(&0

)520

/2: )8(/

6(1625

5HDU YLHZ ZLUH VLGH

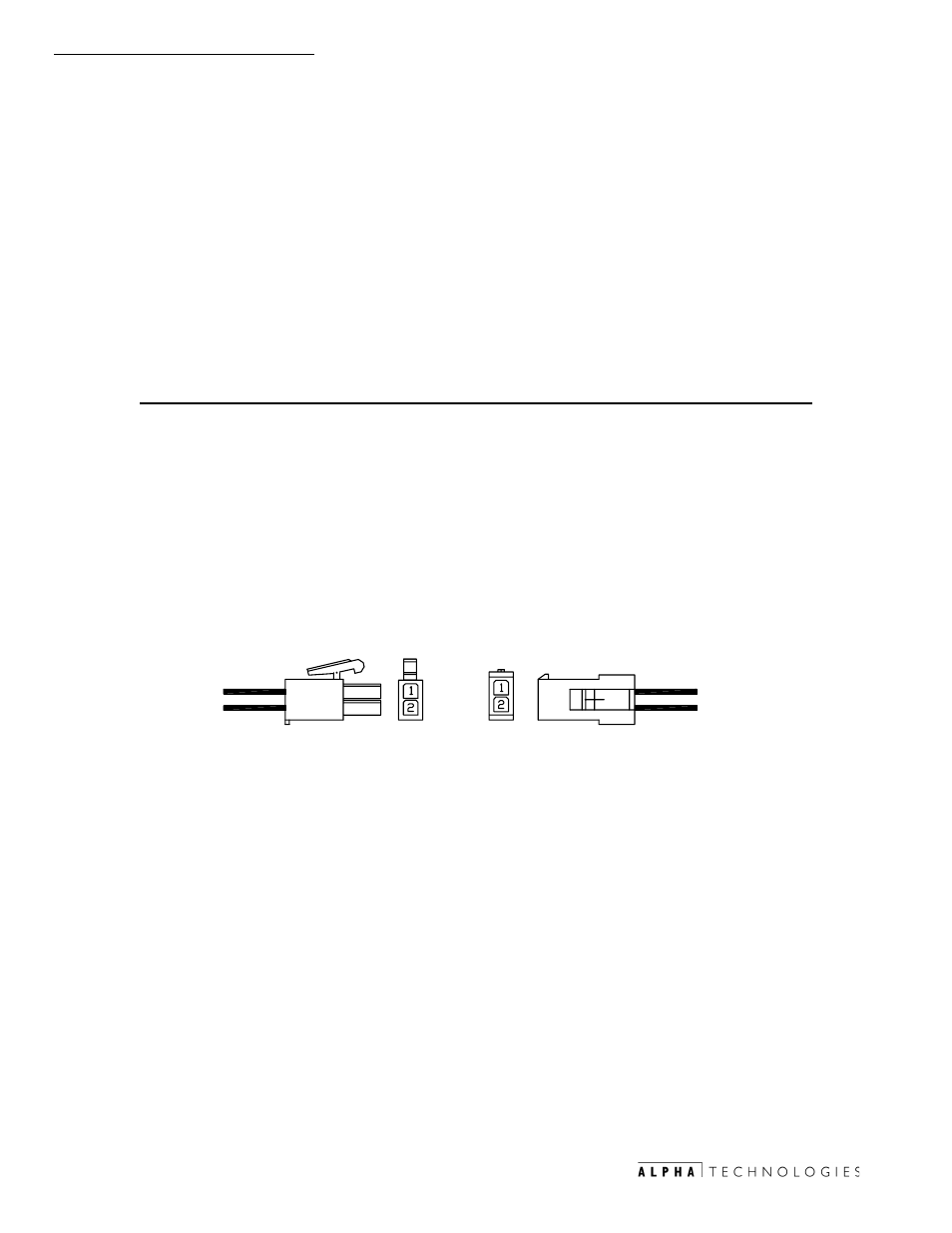

Fig. 4-3 Low Fuel Pressure Switch Interface
