1. System Overview

26

031-132-B0-001 Rev. A

TM

©2000

,QWDNH IURP UHDU

'RRU YHQWV WR IURQW

'RRU FORVHG

&RROLQJ DLU RXW URRI

'RRU FORVHG

7KUHHWDE GRRU DW

UHDU RI HQFORVXUH

&(;

&(*

$XWR

/)36

7KUHHWDE GRRU DW

IURQW RI HQFORVXUH

The CE-X series engine generator enclosures have the capability of either

vapor fuel configurations, Natural or Propane vapor withdrawal. As shown

below, several safety features were added to ensure the cabinets comply with

applicable sections of NFPA 54 (National Fuel Gas Code), NFPA 58 (Storage and

Use of Propane), and NFPA 37 (Engine generators) regarding proper spacing

between intake vents to combustible openings and venting devices on propane

systems.

The CE-X series enclosures are air-cooled. The air intake is through the

bottom rear of the enclosure, and the forced-air exhaust is via the upper duct

on the front roof. The Propane compartment front door is louvered to allow

adequate airflow to atmosphere. The distance between these two points is

greater than 5 feet and is on opposite sides of the enclosure to prevent

communicable air spaces.

To prevent the enclosures from having the doors placed on the wrong sides,

thereby violating the codes, the bottoms of the doors are keyed in a way that

cannot allow incorrect airflow patterns. During operation, and upon completion

of maintenance, or propane tank replacement, the doors must be installed

properly.

1.9

Propane Enclosure Overview

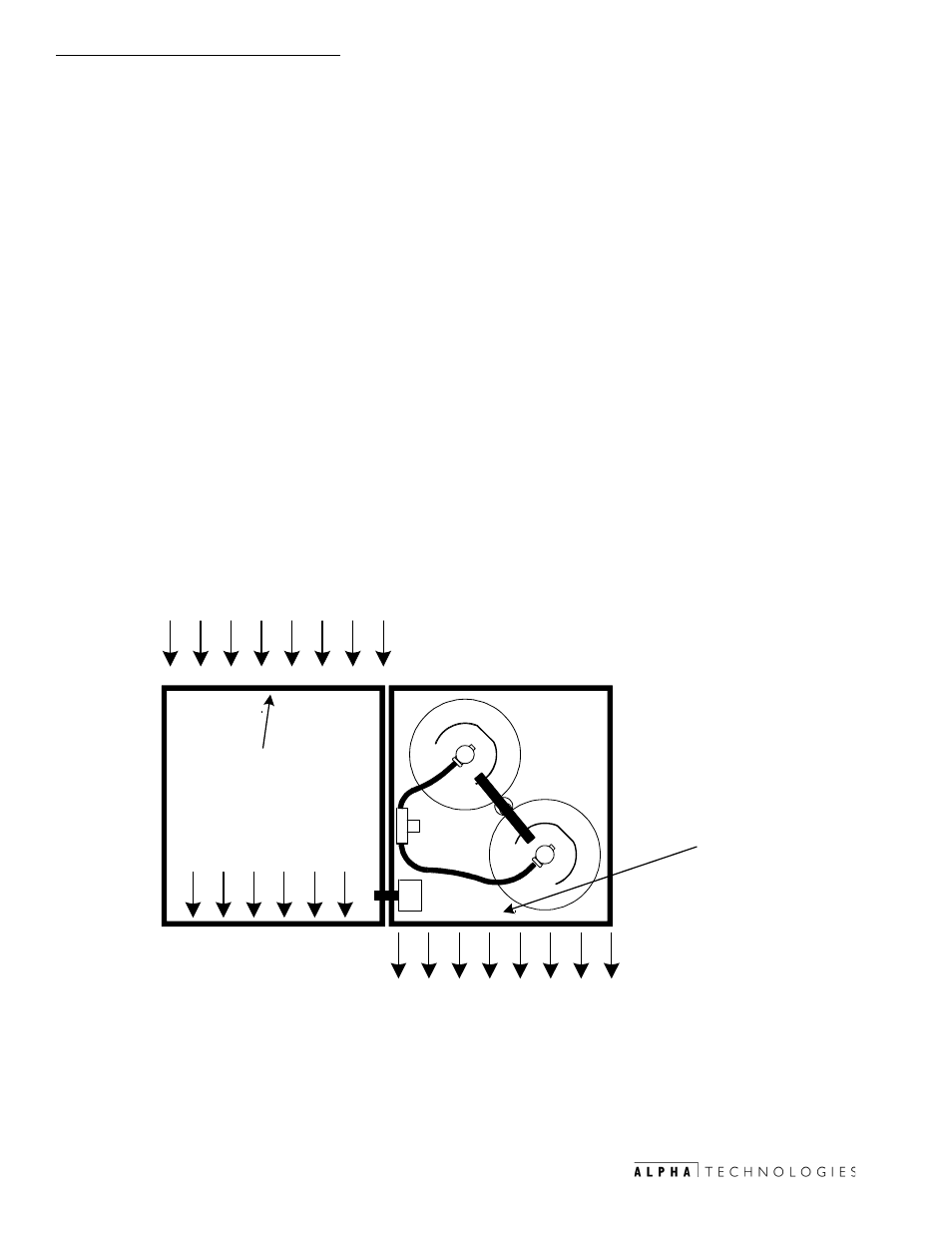

Fig. 1-10 Overhead view, airflow patterns
