4. Interconnection

71

031-132-B0-001 Rev. A

TM

©2000

4.3.5 Charger Module - Output Interface Connector

The Charger Output Interface Connector (J1) is connected between the

charger module and the Ignition Battery as shown. The interface control is a 2-

pole Anderson connector. See Fig. 4-1 for location.

Pole Description

Function

RED Charger Output POSITIVE

To Ignition battery Positive post

BLK Charger Output NEGATIVE

To Ignition battery Negative post

5($5
9,(:

4.3

Connectors, continued

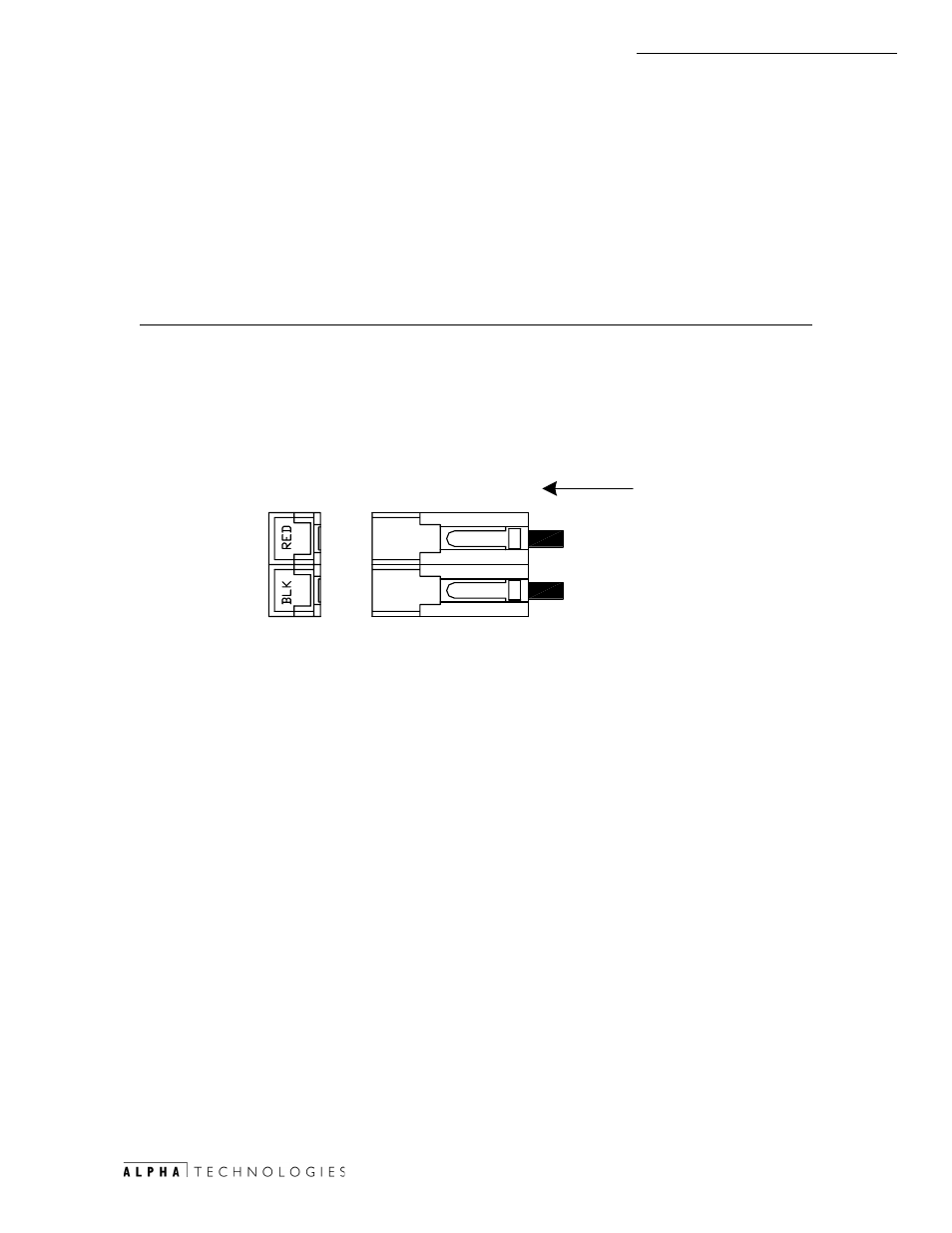

Fig. 4-6 Charger Output Interface
