4. Interconnection

79

031-132-B0-001 Rev. A

TM

©2000

4.3.13 Inverter Battery DC Sense Interface Connector

ECM - Inverter Battery DC Sense Interface Connector J8. See Fig. 4-9, item

13 for location.

The interface control is a 3-pin (1x3 row) Mini Mate-’N’-Lok style connector.

Pin

Description

Function

1 DC Bus Sense (POS.)

Output inverter battery bus – positive connection 36,

48 and 96VDC busses

2 No Connection

3 DC Bus Sense ( NEG.)

Output inverter battery bus – positive connection 36, 48

and 96VDC busses

5($5
9,(:

5($5 9,(:

:,5( 6,'(

-

4.3

Connectors, continued

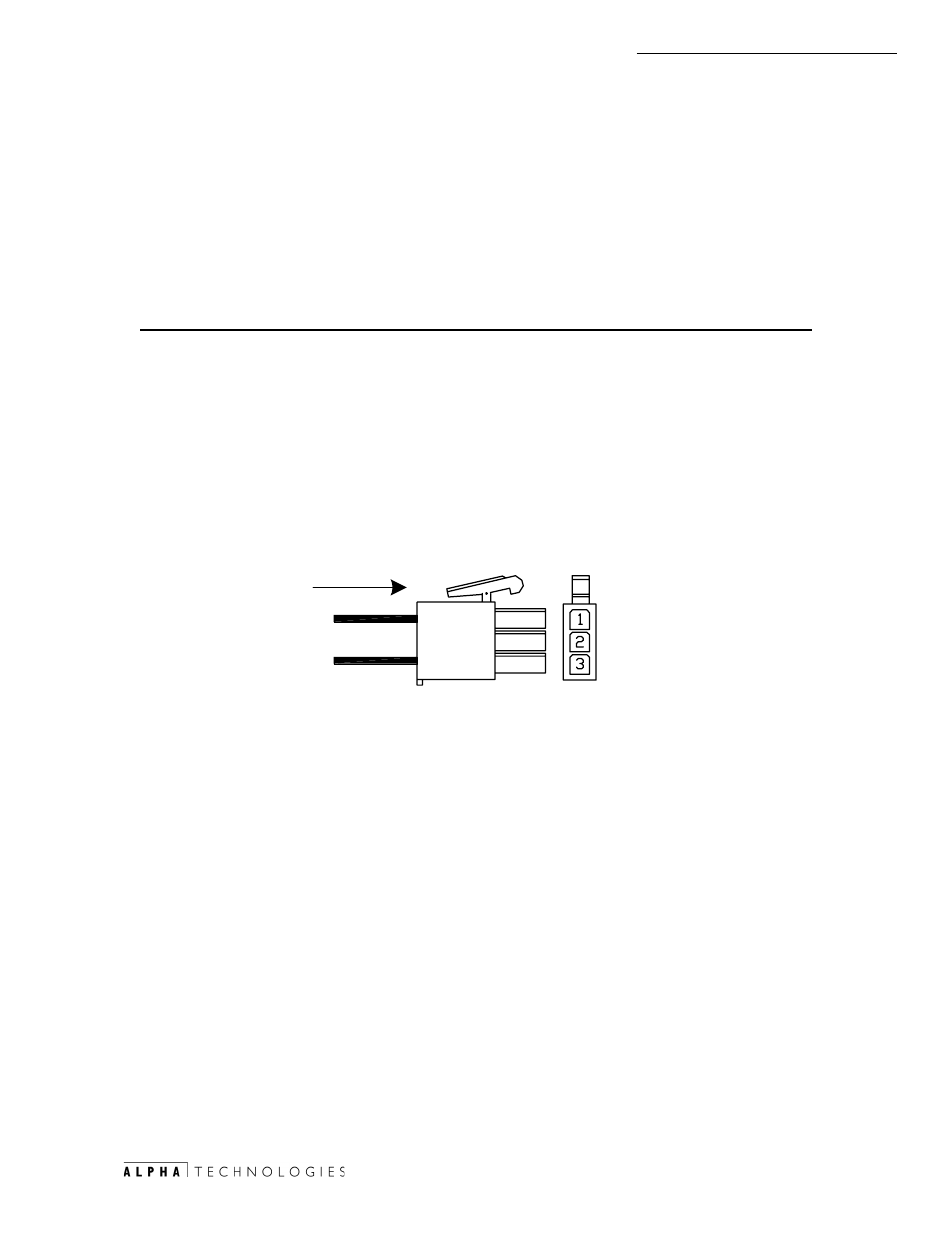

Fig.4-14 Inverter Battery DC Sense
