4. Interconnection

80

031-132-B0-001 Rev. A

TM

©2000

4.3.14 Battery Charger Control Interface Connector

The Battery Charger Control Interface Connector is connected between the

charger module and ECM as shown. The interface control is a terminal block 2-

position plug-in connector. See Fig. 4-9, item 14 for location.

Pin Description

Function

1

Control POSITIVE

This control connects pin 1 & 2 together, thereby

turning the Charger ON, I.E. CLOSED (LOW signal)

2

Control Negative

Charger control common return

NOTE: Previous versions used a push-terminal style connector:

4.3

Connectors, continued

(Front view, wire side)

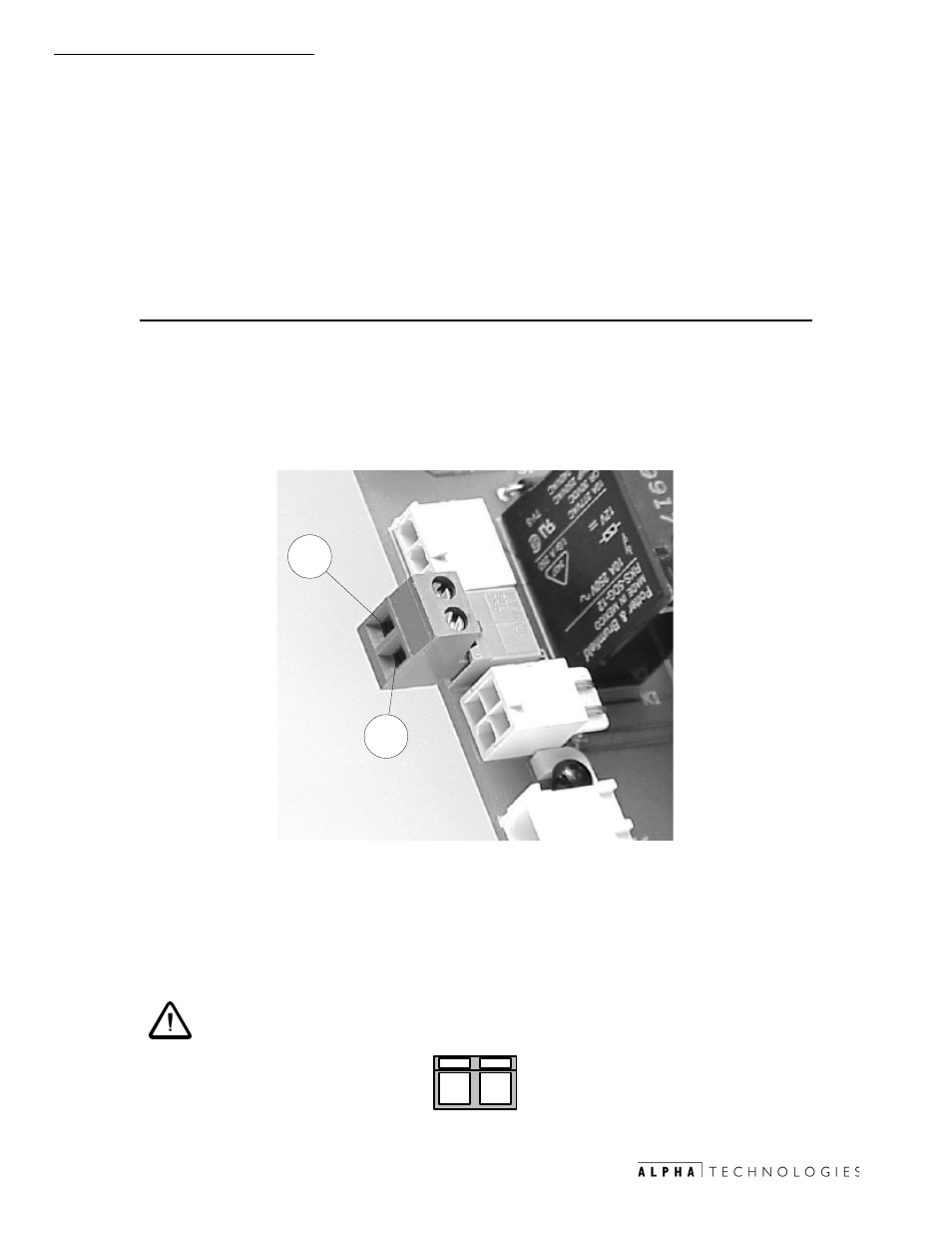

Fig.4-15 Charger Control Interface Connector
