3. Maintenance

63

031-132-B0-001 Rev. A

TM

©2000

NO MATCHES OR OPEN FLAMES:

Use caution whenever working in the area to prevent possible combustion

fuel vapors.

LEAK HAZARD:

Use caution whenever working in the area to prevent and correct any leaks

detected.

Calibration Procedure:

1. On the ECM, perform the following:

Set the ECM Run/Auto/Stop (RAS) switch to the STOP position. Remove

the Allen-head screw located on the "Secondary" or "Demand" Regulator.

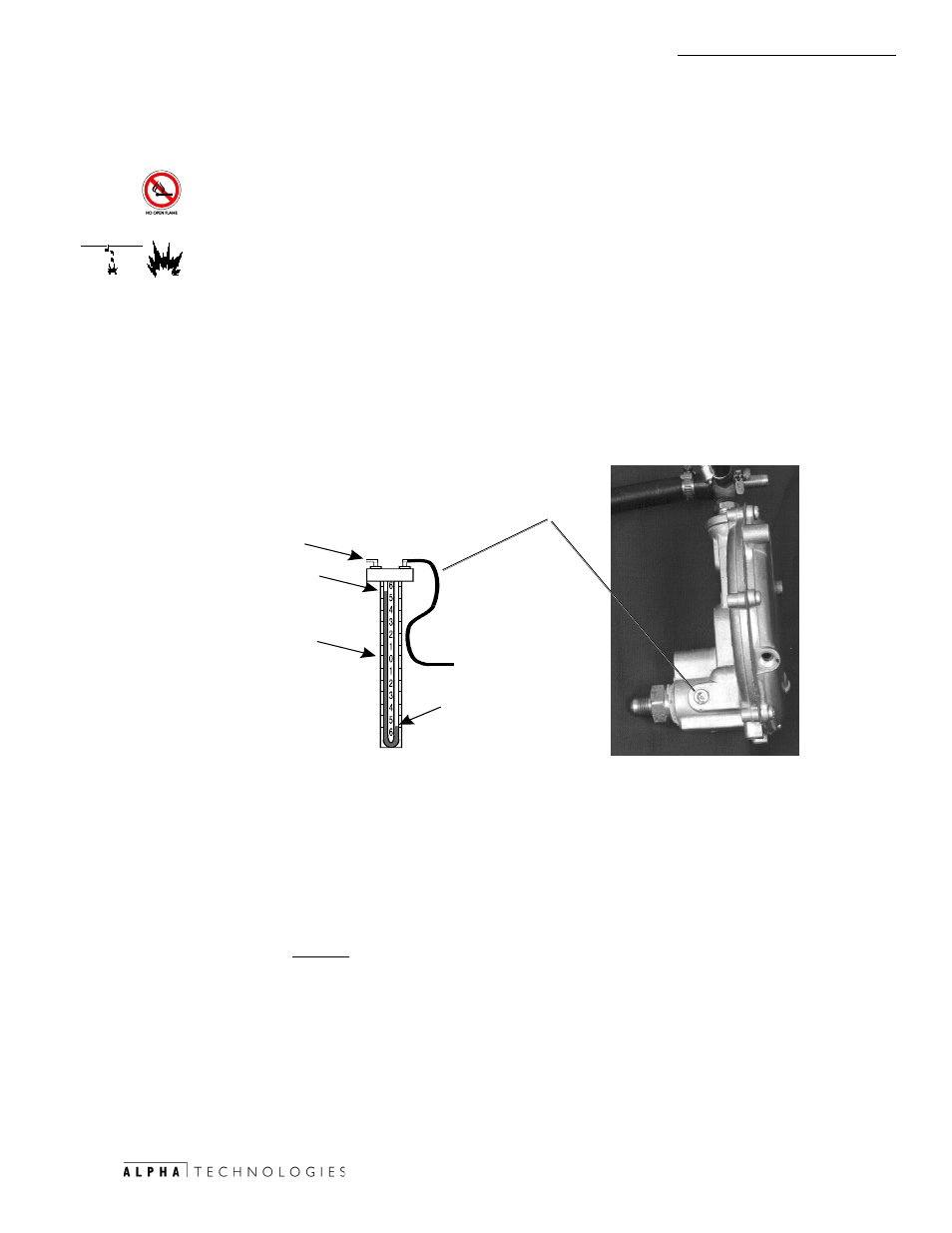

3.17 Maxitrol Pre-Regulator Calibration, continued

Connect hose and fitting to

the Secondary Regulator

Secondary Regulator

(removed to show

Manometer access port)

т

т

.((3 3257 23(1

:$7(5

&2/801 727$/

':<(5

0$120(7(5

On the DWYER # 1212, perform the following:

2. Open both ports.

3. Set the scale of “0” between the water lines. Connect the pressure test

hose (see above).

4. Remove the Maxitrol regulator adjustment cover (located in the gas

service box outside of the enclosure).

5. Apply 0.5psi-2psi gas pressure to the gas package.

6. Place the ECM’s RAS switch in the RUN position. The starter will then crank

the engine until the generator starts. (This may take a few seconds to draw

excess air from hoses). When the ECM RAS switch is placed in the RUN

position, the ECM controls the starting of the engine.
