3. Maintenance

41

031-132-B0-001 Rev. A

TM

©2000

The air intake filter is located on the rear door.

WARNING:

Failure to keep the filters clean or using improperly

installed filters, may cause internal system failures

due to lack of cooling air or dirt buildup. Equipment

failures caused from filter blockage or dirt ingress

due to clogged or improperly installed filters is not

covered under warranty.

Filter Removal, Replacement, and Cleaning

1.

Unlock and remove the rear door.

2.

Pull the four captive fasteners (item 1, below) out.

3.

Tilt the filter frame away from the door and remove the filter.

4.

Clean the filter using a vacuum or compressed air (if available) to

remove loose dust and dirt. Then clean them using a soap and water

solution to remove any trapped dirt. Use compressed air and dry the

filter. After cleaning, re-coat the filters using RP Super Filter Coat

Adhesive, available from local suppliers.

5.

Replace the filter (Verify the “Air Flow” indicating mark faces into the

enclosure) and refasten the filter frame.

6.

Replace and lock the rear door.

3.4 Filter Cleaning

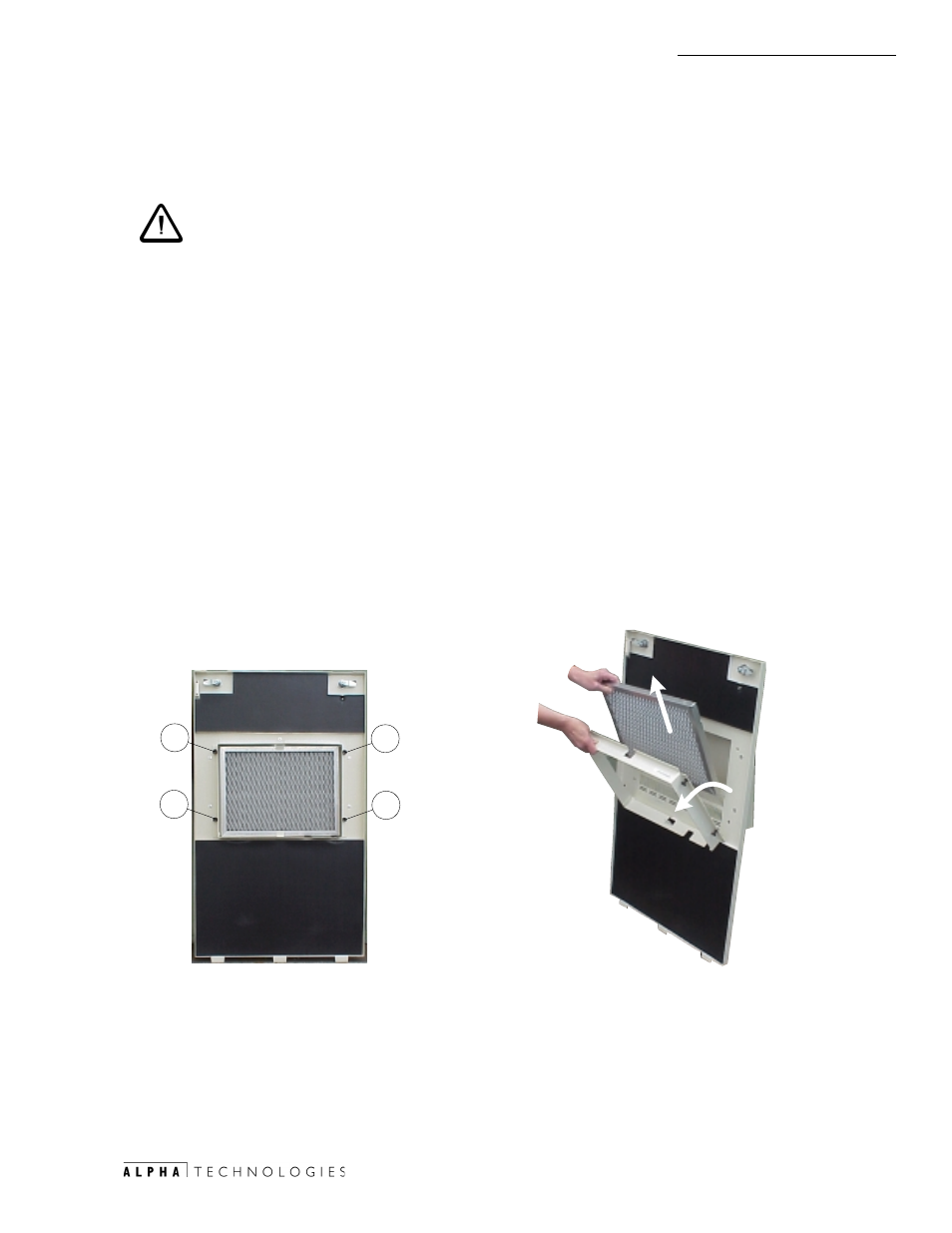

Fig. 3-2 Access Panel and Air Filter

Fig. 3-3 Air Filter Removal
