Installation and Wiring Page 2-3 2
TS-TPI Installation and Wiring Guide
INPUTS
TS-LLD 485B
485A
S,RTN
DSY
IN 1
GND
IN 2
GND
RED
BLACK
WHITE
BLACK
WHITE
RED
TS1001 OR TS2001 ONLY
ATG
LS300
+ G
RS485
TPC
CABLE-BELDEN
CONDUCTOR
#9365-18AWG
OR EQUIVALENT
ADDITIONAL
TPC
GROUPS
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
HOST PORT
PORT 1
PORT 2
PORT 3
PORT 4
NOT USED
CONTROLLERS MAY INCLUDE THE
MagVFC, STP-SCI, STP-SCIII,
IST-VFC, AND STP-SC
ADDITIONAL TPC CONNECTIONS
SEE TANK SENTINEL INSTALLATION GUIDE
(PART # 000-150), LS300 USER'S GUIDE
(PART # 000-0040), AND APPROPRIATE
TPC INSTALLATION AND OWNER'S MANUAL
FOR COMPLETE WIRING INFORMATION
BLACK
WHITE
RED
RED
WHITE
BLACK
TPI BOARD

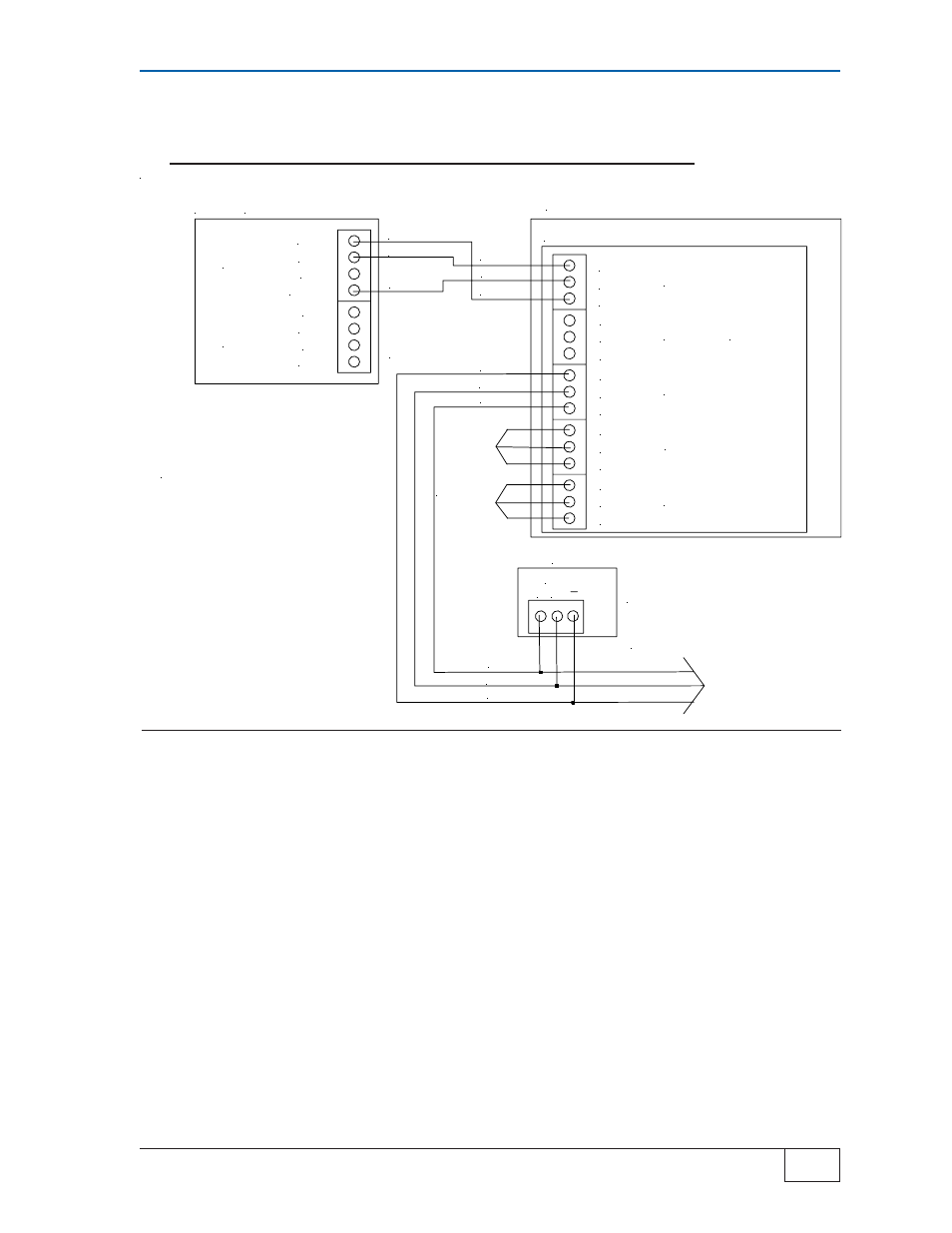

Integrated TS-TPI / TS-LS300 to Automatic Tank Gauge
TS-1001, TS2001 and TPCs
Figure 2-2
●
This application provides communication between ATG, TS-LS300, and TPCs. The
Line Leak detector option is required on the ATG for full communication with TS-
LS300.
●
See Tank Sentinel Installation Guide and TS-L300 AutoLearn Installation Guide for
specific instructions for each component
●
Connect TPCs so all Stand alone TPCs are on the same port and Master/Slave
configured units are on their own port. Address TPCs so controllers on same port
have unique addresses. If similar type stand alone TPCs are installed on the same
port as Master/Slave TPCs the stand alone TPCs will be seen as Slave units.
