2 Page 2-2 Installation and Wiring
TS-TPI Installation and Wiring Guide
LS300
BLACK
WHITE
RED
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
HOST PORT
PORT 1
PORT 2
PORT 3
PORT 4
TPI BOARD
TS1001 OR TS2001 ONLY
ATG
INPUTS
TS-LLD 485B
485A
S,RTN
DSY
IN 1
GND
IN 2
GND
RED
BLACK
WHITE
CABLE-BELDEN
CONDUCTOR
#9365-18AWG
OR EQUIVALENT
SEE TANK SENTINEL INSTALLATION GUIDE
(PART # 000-1050) AND LS300 USER'S GUIDE
(PART # 000-0040) FOR COMPLETE ATG AND
LS300 WIRING INFORMATION
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+

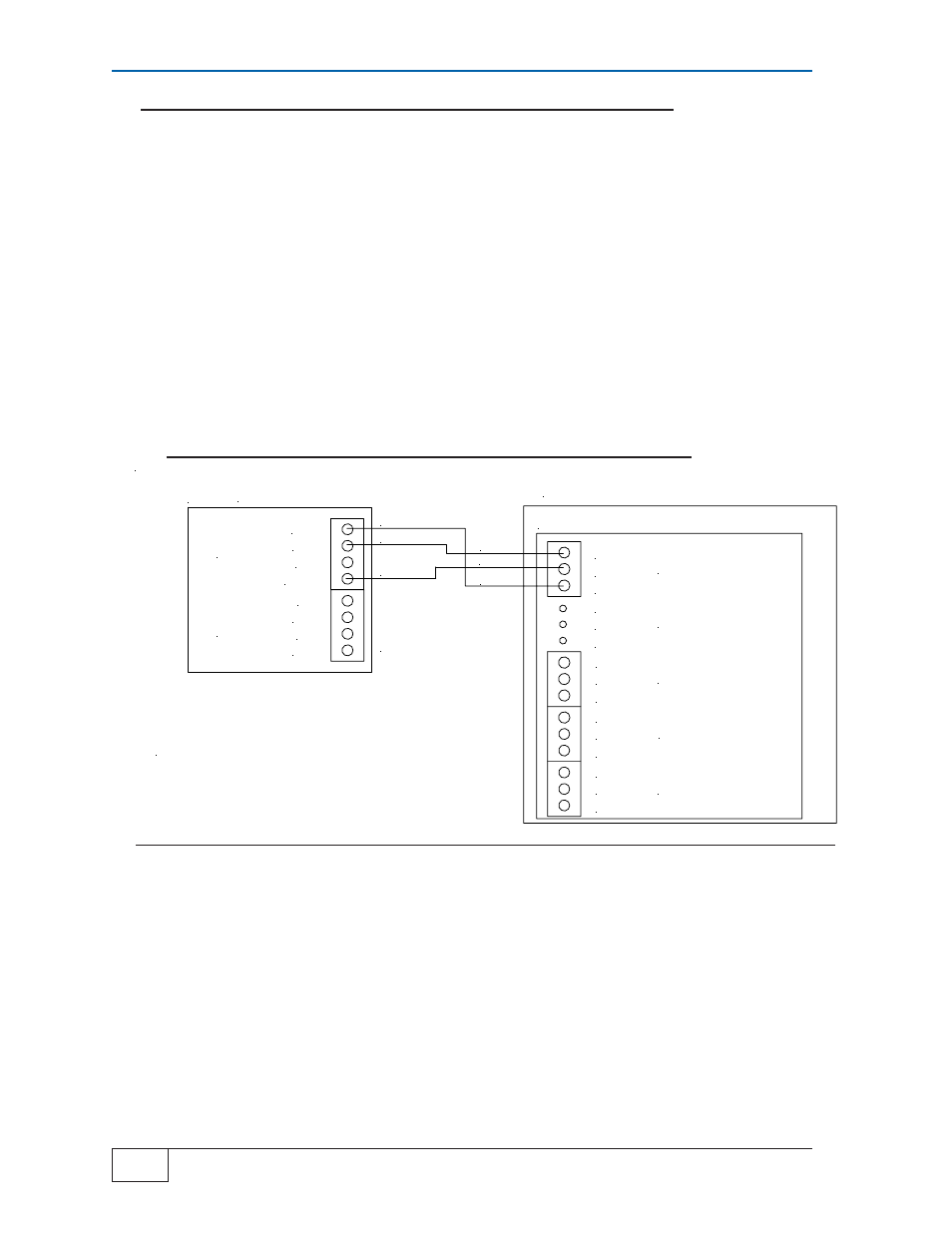

Integrated TS-TPI / TS-LS300 with Automatic Tank Gauge
TS-1001, TS2001
Figure 2-1
●
This application provides communication between ATG and TS-LS300 only. The
Line Leak detector option is required on the ATG for operation.
●
See Tank Sentinel Installation Guide and TS-L300 AutoLearn Installation Guide for
specific instructions for each component
TS-TPI specifications:
Input power: 120 - 240 Vac 50/60 hz (note: stand alone TS-TPI only. the integrated TS-TPI/TS-
LS300 does not require any additional power connection to the TS-TPI)
For indoor installation only, operating temperature 40 - 105° F (4 - 41° C)
Use Belden Cable #9365 - 18 AWG or equivalent
TS-TPI revision 2.3 or higher for use with MagVFC, STP-SCI, STP-SCIII, STP-SC, and IST-VFC
controllers. Limited functions available with STP-SCIII, STP-SC and IST-VFC controllers. See
Troubleshooting section for details.
Integrated TS-TPI/TS-LS300 uses PORT 1 exclusively for TS-LS300 communication and is not
available for TPC connections. The stand alone TS-TPI can use PORT1 for TPC connections.
