4 Page 4-4 TS-TPI SETUP PROGRAMMING
TS-TPI Installation and Wiring Guide
PUMP N Menu(s)
• NAME (user entry)
• TYPE “READ ONLY”
• GROUP “READ ONLY”
• ADDRESS “READ ONLY”
• TANK (user entry)
• HEIGHT (user entry)
NAME (user entry)
Description of Steps:
The PUMP N menu displays six subsequent
fields, including TANK and HEIGHT (scroll
down)...
1) Press the M1 key to display the NAME
PUMP N user entry field...
The default name of “PUMP 1 is displayed...
2) Press the M4 key to backspace and
erase the “PUMP 1” default name.
3) Use the keypad to enter a unique name
for each pump, up to 8 characters long (See
NOTE below).
Remember:
Use the SHIFT key to change the keypad for
A...M to N...Z and to (numeric) 1-9, 0, ., =/-,
and SPACE (a blank space)
4) Press the ENTER key to accept the data
entry.
The display returns to the PUMP N menu.
Repeat the user entry steps for each pump.
In the following examples, “N” represents any pump
number - 1, 2, 3 and so on. NOTE

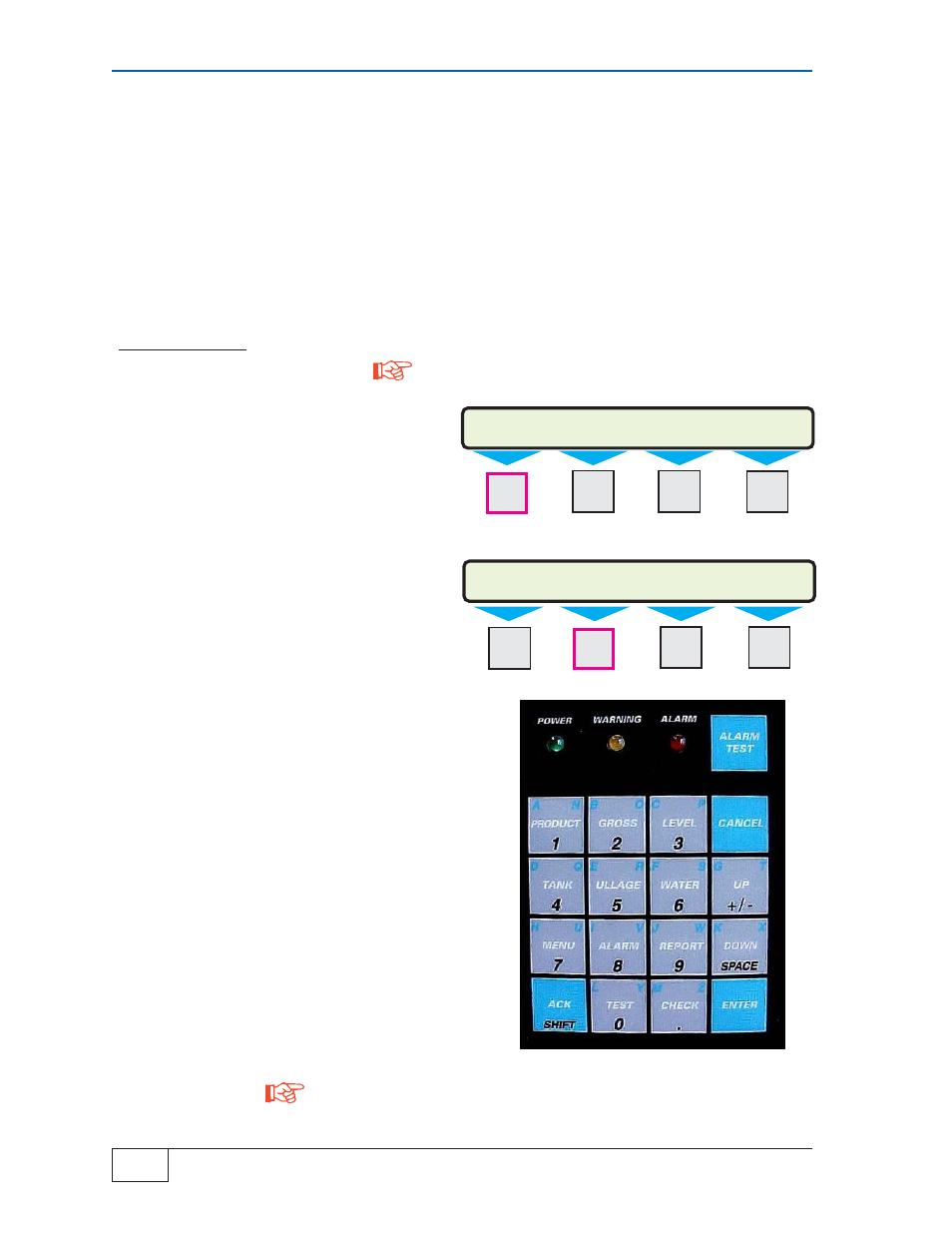

PUMP N (MORE)
NAME TYPE GROUP ADDRESS
M1 M2 M3 M4
NAME PUMP N A ... M
PUMP1 BACKSPACE
M1 M2 M3 M4
The Pump name can be up to 8 alpha/numeric characters. This alias
is used throughout the system in the display and reports. An example
name would be UNLEADED. The name is not automatically updated
or over-written by an AUTO CFG operation. NOTE
