TS-TPI DATA AND REPORTS Page 6-5 6
TS-TPI Installation and Wiring Guide
PUMP menu.
The SELECT PUMP menu displays all of
the pump numbers that are communicating
with the Tank Sentinel.
5) Press the (M) key under each pump
number to display the SELECT DIAGNOS-
TIC OPTION menu. In this example, Press
the M1 key for the PUMP 1 options.
Here is the DIAGNOSTIC OPTION MENU.
RESET Menu
RESET (User Interface)
Description of Steps:
Here is the SELECT DIAGNOSTIC OPTION
menu displaying RESET and CALIBRT.
1) Press the M1 key under the word RESET.
The RESET PUMP N display asks if the
user is sure before resetting a pump control-
ler; giving the user a chance to press
CANCEL to abort the reset operation.
2) Press the ENTER key to reset the pump
controller.
Press the CANCEL key to abort the reset
operation.

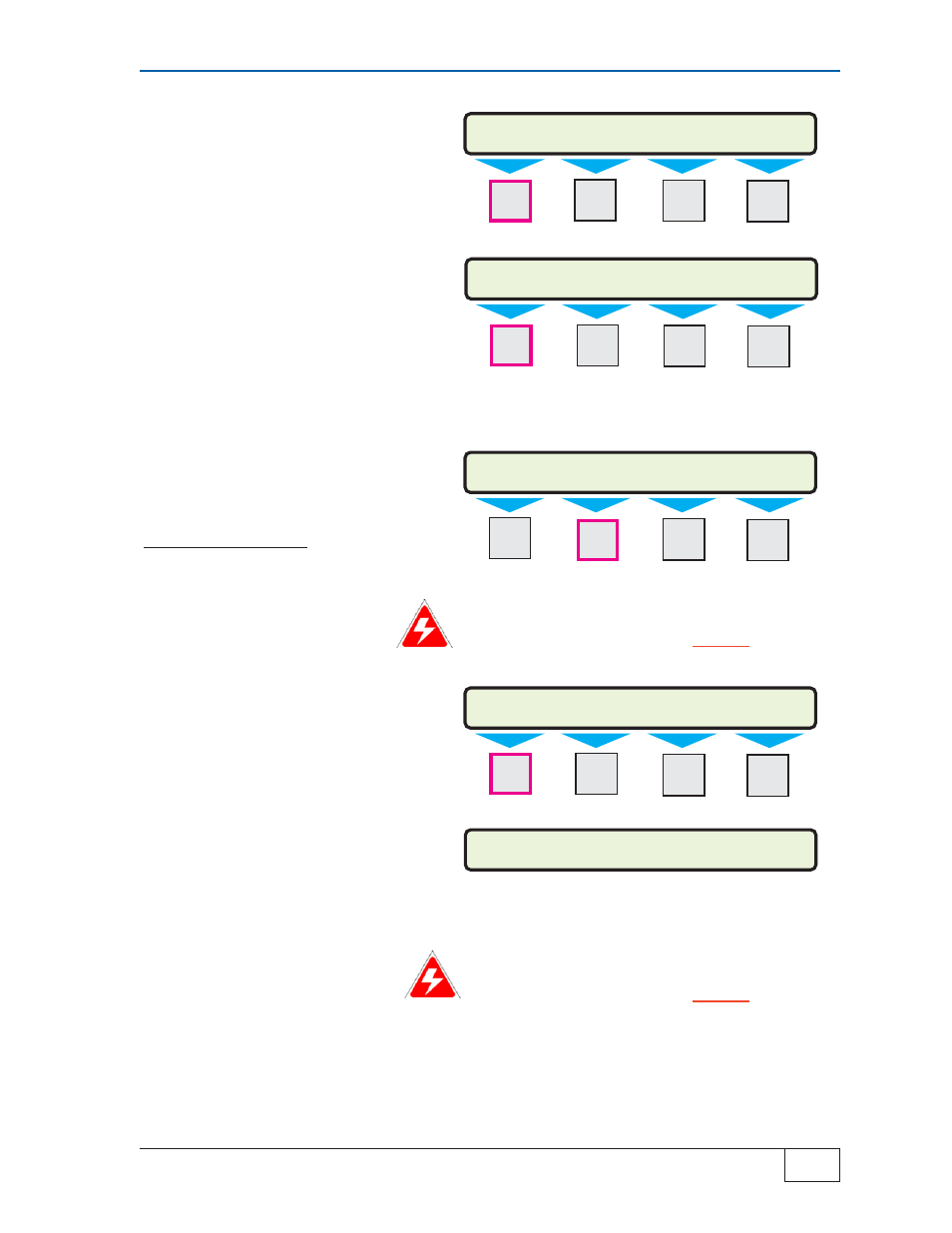

SETUP MENU OPTION
PUMPS
M1 M2 M3 M4
SELECT PUMP (MORE)
PUMP 1 PUMP 2 PUMP 3 PUMP 4
M1 M2 M3 M4
SELECT DIAGNOSTIC OPTION
RESET
CALIBRT
M1 M2 M3 M4
DANGER!
The potential for electric shock exists!
Verify the site is safe! -- before
proceeding with a Reset operation.
SELECT DIAGNOSTIC OPTION
RESET
CALIBRT
M1 M2 M3 M4
RESET PUMP 1
ARE YOU SURE?
DANGER!
The potential for electric shock exists!
Verify the site is safe! -- before
proceeding with a Reset operation.
After entering a reset, the display will flash the word DONE... for a few seconds then it will automati-
cally return to the SELECT DIAGNOSTIC OPTION menu, displaying RESET and CALIBRT.
