Installation and Wiring Page 2-5 2
TS-TPI Installation and Wiring Guide

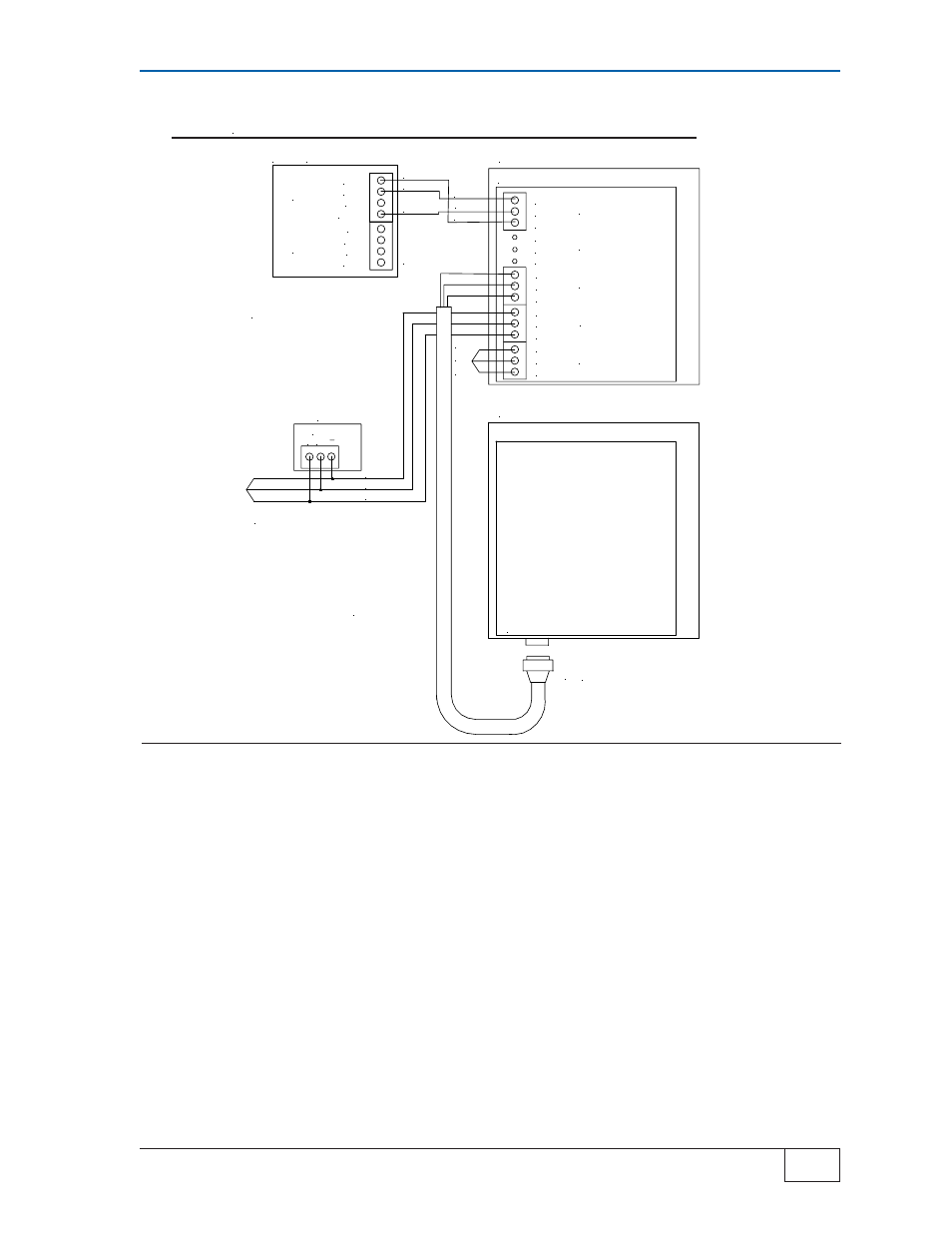

Wire diagram for TS-TPI with two TS-300 AutoLearn to
Automatic Tank Gauge TS-1001, TS2001 and TPCs
Figure 2-4
●
Provides communication between ATG, TPCs, and both TS-LS300 consoles. ATG
requires the Line Leak detection option for full operation of TS-LS300 and ATG
communication.
●
Only one TS-LS300 has TS-TPI installed, if both have a TPI board remove the TPI
from one of the TS-LS300
●
The RS232 cable is supplied by the customer
●
Connect TPCs so all Stand alone TPCs are on the same port and Master/Slave
configured units are on their own port. Address TPCs so controllers on same port
have unique addresses. If similar type stand alone TPCs are installed on the same
port as Master/Slave TPCs the stand alone TPCs will be seen as Slave units.
●
TS-TPI configuration switch SW1 pole 3 is ON. See Figure 2-7 for more details and
switch settings on TS-TPI
LS300
TPI BOARD
BLACK
WHITE
RED
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
TXD 485-
GND
RXD 485+
HOST PORT
PORT 1
PORT 2
PORT 3
PORT 4
NO TS-TPI BOARD IN THIS
TS-LS300 CONSOLE. IF TS-TPI
IS PRESENT REMOVE IT BEFORE
MAKING RS232 CONNECTIONS
LS300
EXTERNAL
RS232 PORT
TS1001 OR TS2001 ONLY
ATG
INPUTS
TS-LLD 485B
485A
S,RTN
DSY
IN 1
GND
IN 2
GND
RED
BLACK
WHITE
CABLE-BELDEN
3 CONDUCTOR
#9365-18AWG
OR EQUIVALENT
SEE TANK SENTINEL INSTALLATION GUIDE
(PART # 000-1050) AND LS300 USER'S GUIDE
(PART # 000-0040) FOR COMPLETE ATG AND
LS300 WIRING INFORMATION
+ G
RS485
TPC
BLACK
WHITE
RED
CONTROLLERS MAY INCLUDE THE
MagVFC, STP-SCI, STP-SCIII, VFC AND STP-SC
ADDITIONAL
TPC
GROUPS
PURCHASE
RS232 CABLE
LOCALLY
