DATA FILE MANAGER
92
Save Config/Load Config/Firmware Update
Performs the labeled operation. This button will change depending on the file selected. The
button will default to Save Config and allows the current system configuration to be saved, which
can then be loaded onto other System 5000
™
s, if desired. If a configuration file is chosen, the
button will change to Load Config. If a System 5000
™
Firmware file is chosen, the button will
change to Firmware Update.

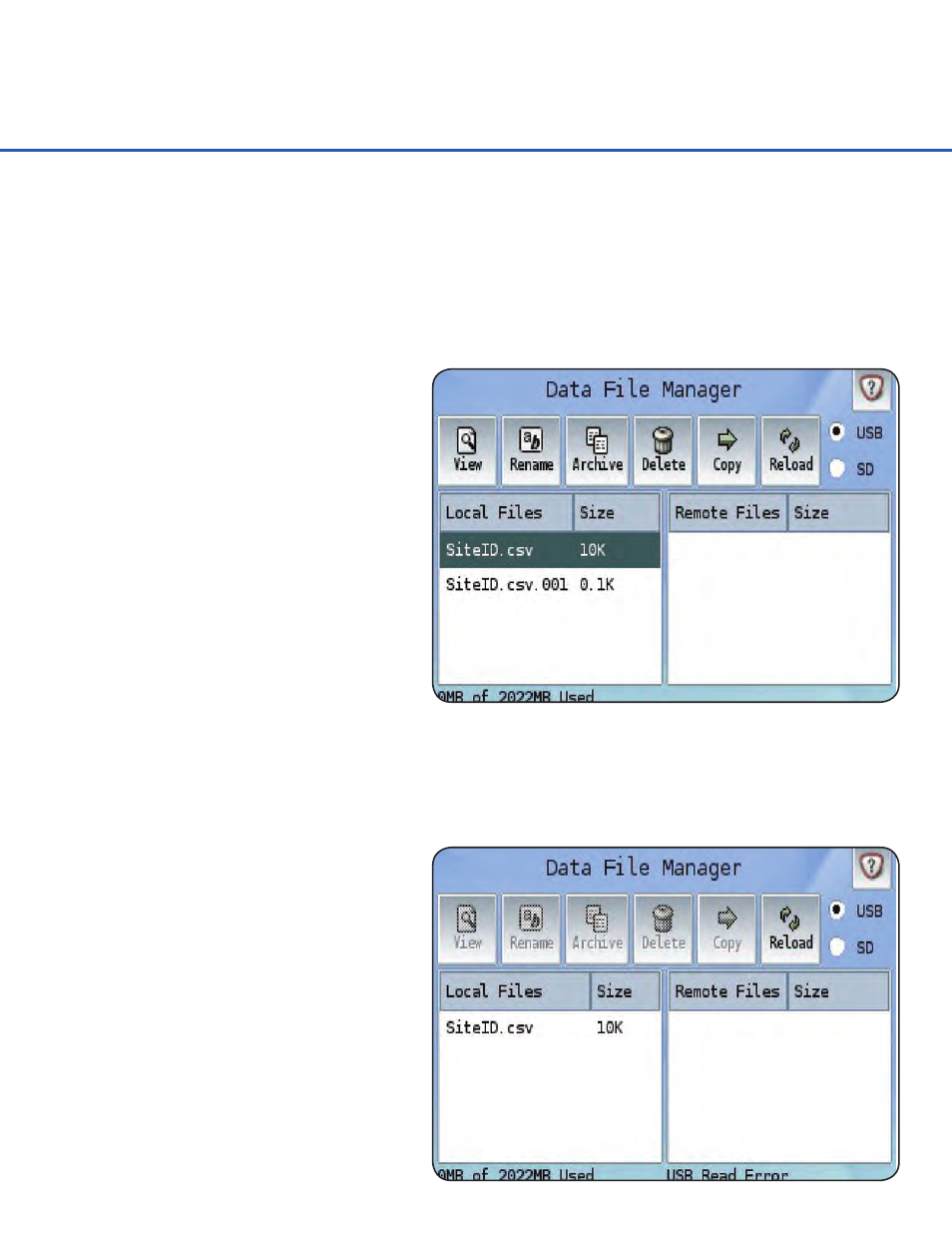

Archiving Log Files
The Archive button provides a quick and
easy method for allowing new data to be
stored in a fresh log file, while maintaining
the old data in older files. For example,
when returning to a site to retrieve the
collected data, after downloading the data
from the System 5000
™
, pressing the
Archive button will rename the existing log
file with an incrementing extension, SiteID.
csv.001 for example. When new data
measurements are retrieved, the original
file (SiteID.csv in this example) will be
created again and begin logging the data.
If the Archive button were pressed at
the next return to the site, the file would be renamed to SiteID.csv.002, with all new data being
again logged to a newly created SiteID.csv. Using the Archive button allows all new data to be
always logged to the same log file while still preserving the previously logged data. If any
Archiving options are enabled within the Advanced Logging Options, they will also apply here.
For more information relating to Advanced Logging Options, please refer to Chapter 6.
Saving/Loading System 500 0
™
Configurations
The configuration of a System 5000
™
defines everything about what the platform
is set up to do. System settings and
configurations can be quickly duplicated
across multiple units as well as provide a
quick backup of multiple configurations.
