reboot may be required before connecting for the first time.
A pop-up in the system tray will indicate when the communication has been established. If any
problems occur (e.g. the connection does not connect properly) simply disconnect and reconnect
the cable and double-click the desktop connection icon again.
Serial ports will report 115.2 Kbps as their speed. USB connections may report 9.6 Kbps though
the speed is actually 115.2 Kbps as well.
Once connected, simply open a web browser and type in the address of the connected
port and press Enter. Upon success, the Java viewer will begin loading. For further
information regarding the Java-enabled menu system, please refer to the Using a Web
Browser section below.
Connect With A PC
123
After completing the Dial-Up
Networking setup, some quick
changes to the connection need to
be configured. Press the ‘Properties’
button on the pop-up window.

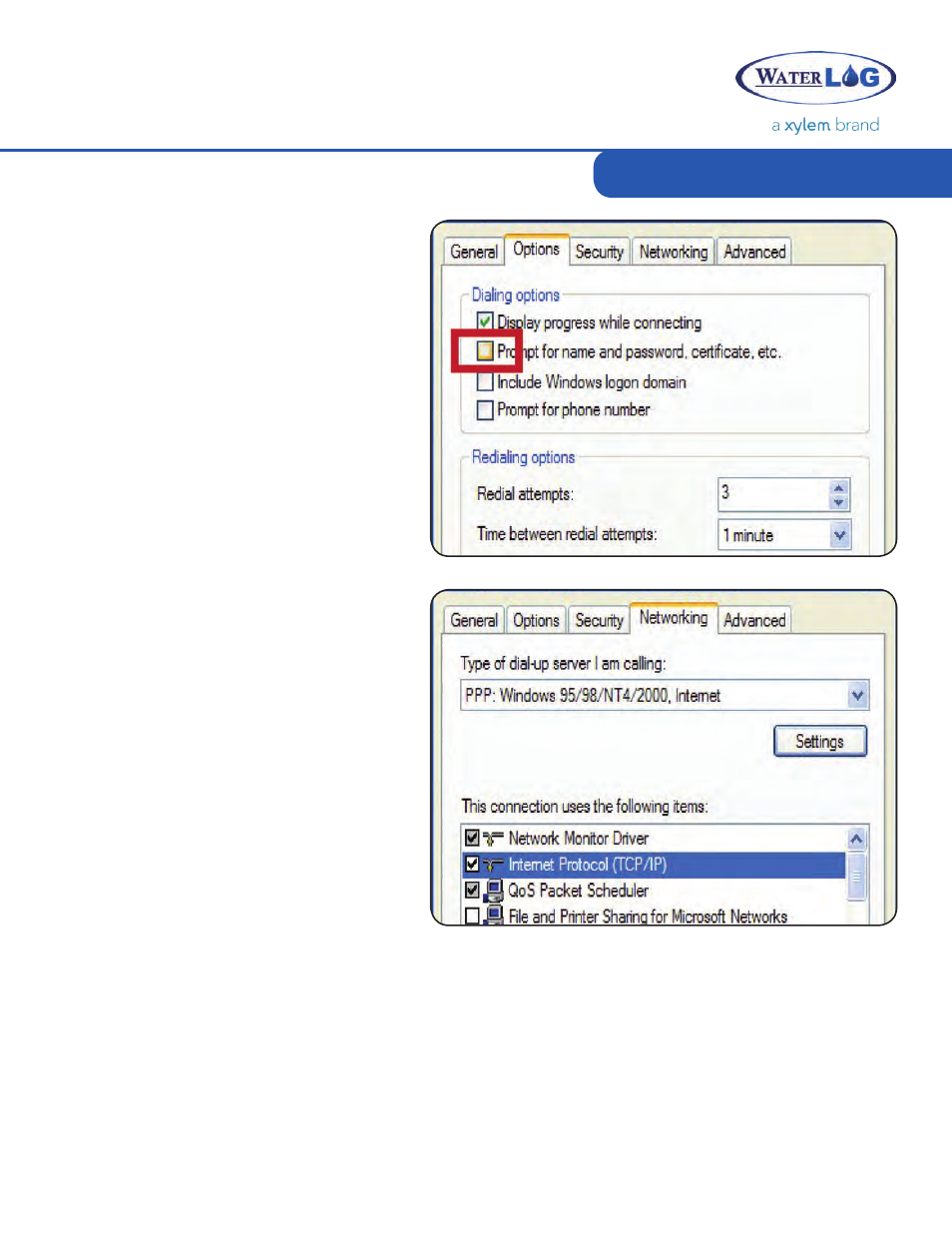

Select the Options tab and de-select
Prompt for name and password,
certificate, etc. as well as the Prompt for
phone number Dialing options.
Select the ‘Networking’ tab, highlight
the ‘Internet Protocol (TCP/IP)’ option
and press the ‘Properties’ button.
Press the ‘Advanced’ button.
Uncheck the ‘Use default gateway on
remote network’ option. Press the ‘OK’
buttons (3 buttons) to save the changes.
The connection may automatically try
to connect at this point. If it does not,
simply double-click on the Desktop
icon to initiate a new connection to the
System 5000
™
. If connecting via the
USB Device port, a System 5000
™
