The View Status screen also appears when the View Status button on the front panel of the System
5000
™
is pressed. Pressing and holding the View Status button for more than three seconds will
initiate the action specified by the function button. If no Tasks are selected and the Measure All
function button is shown, holding the View Status button will cause all of the Tasks to request a new
measurement. To select a Task, press and release the View Status button. Pressing the button again
will scroll through the Tasks. To measure a selected Task, simply highlight the desired Task, then hold
down the View Status button for roughly three seconds. After the last Task has been deselected, the
function button will scroll to a Sleep command. Holding the View Status
button will then shut off the display to the System 5000
™
, and subsequently enter its sleep
mode. Pressing the View Status button again will wake up the unit, if asleep, or rotate the function
button to the Measure All command, if already awake..
115
System Setup - Inputs & Outputs
This screen can be helpful in providing
a quick and simple look at the setup of
the System 5000
™
, the Tasks, and more
importantly the rates associated with each.
Note that Scan Offsets and Custom Task
Schedules are not noted (except for the
Start Time). This menu is also accessible
via the Global Task Options screen within
System Settings.
View Status Screen

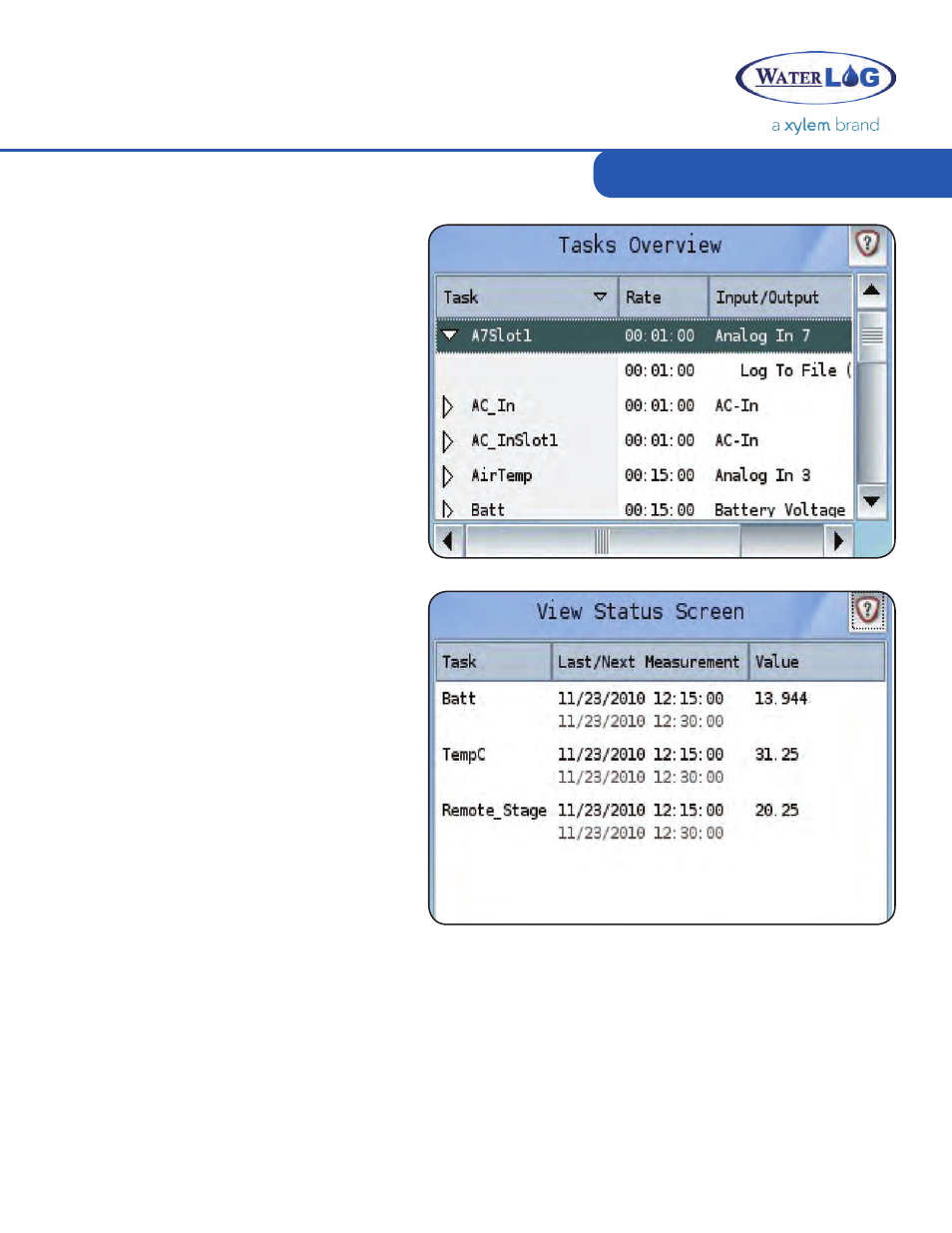

The View Status screen shows the Tasks
on the System 5000
™
, each with their
most recent measurement date, time, and
value, as well as the next measurement
date and time. If new measurements are
desired for all listed Tasks, the Measure All
function button can be pressed to force
a measurement of all the Tasks. If only
a specific Task measurement is desired,
select the desired Task and press the
Measure Task function button (highlighting
a Task will cause the Measure All function
button to change to a Measure Task
function button). Updates to the values
will be shown as new measurements are
retrieved.
