Menu Orientation
All setups and configurations can be per-
formed using the built-in touch screen
display. After the System 5000
™
has fully
booted, touch anywhere on the screen

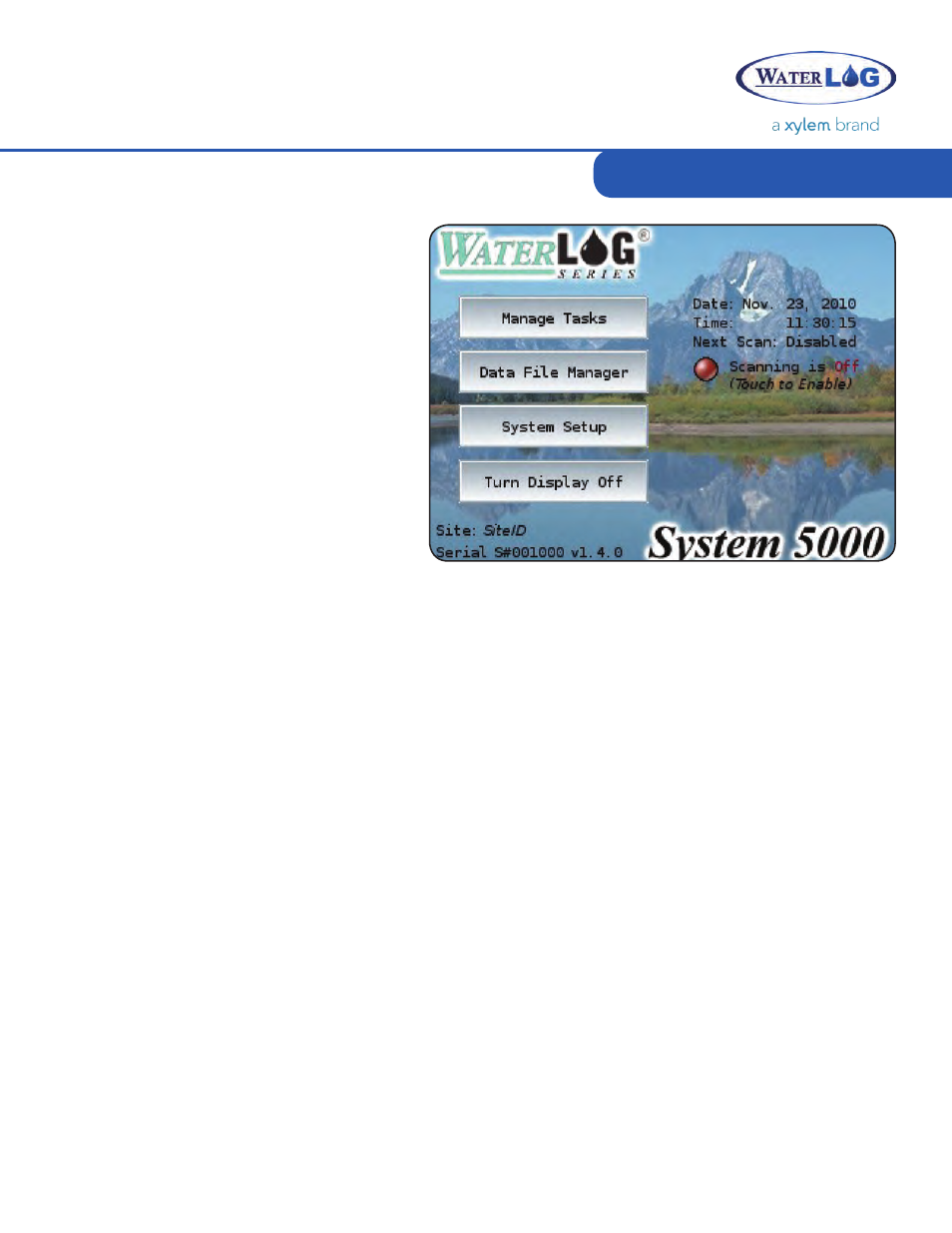

to turn the display on. The screen to the
right will appear.
15
The Manage Tasks section is used
to set up and maintain the System
5000
™
’s Inputs and Outputs (Tasks).
Manage Tasks
The Data File Manager section is used to
view, copy, rename, and delete data files on the System 5000
™
or an attached USB thumb drive
or SD memory card. System configuration saving/loading, Firmware updating, and other options
are also performed here.
Data File Manager
The System Setup section is used to manage general system options and system-wide settings
such as the Site ID, date, and time.
System Setup
The Turn Display Off button turns off the touch screen. To turn the display on again, simply touch
anywhere on the screen.
Turn Display Off
Enable / Disable Scanning
The images on page 16 show the basic layout for all screens used within the System 5000 ™ . All
screens contain a header, consisting of the current screen’s title along with a Help button, and
footer, containing either an OK/Cancel button combination or a unique function button and Exit
button.
Screen Design and Layout
The Scanning indicator shows if scanning is enabled or disabled. The indicator is green when
scanning is enabled and red when disabled. Thescanning status (running of Inputs and Outputs)
can be toggled by pressing this button.
