8

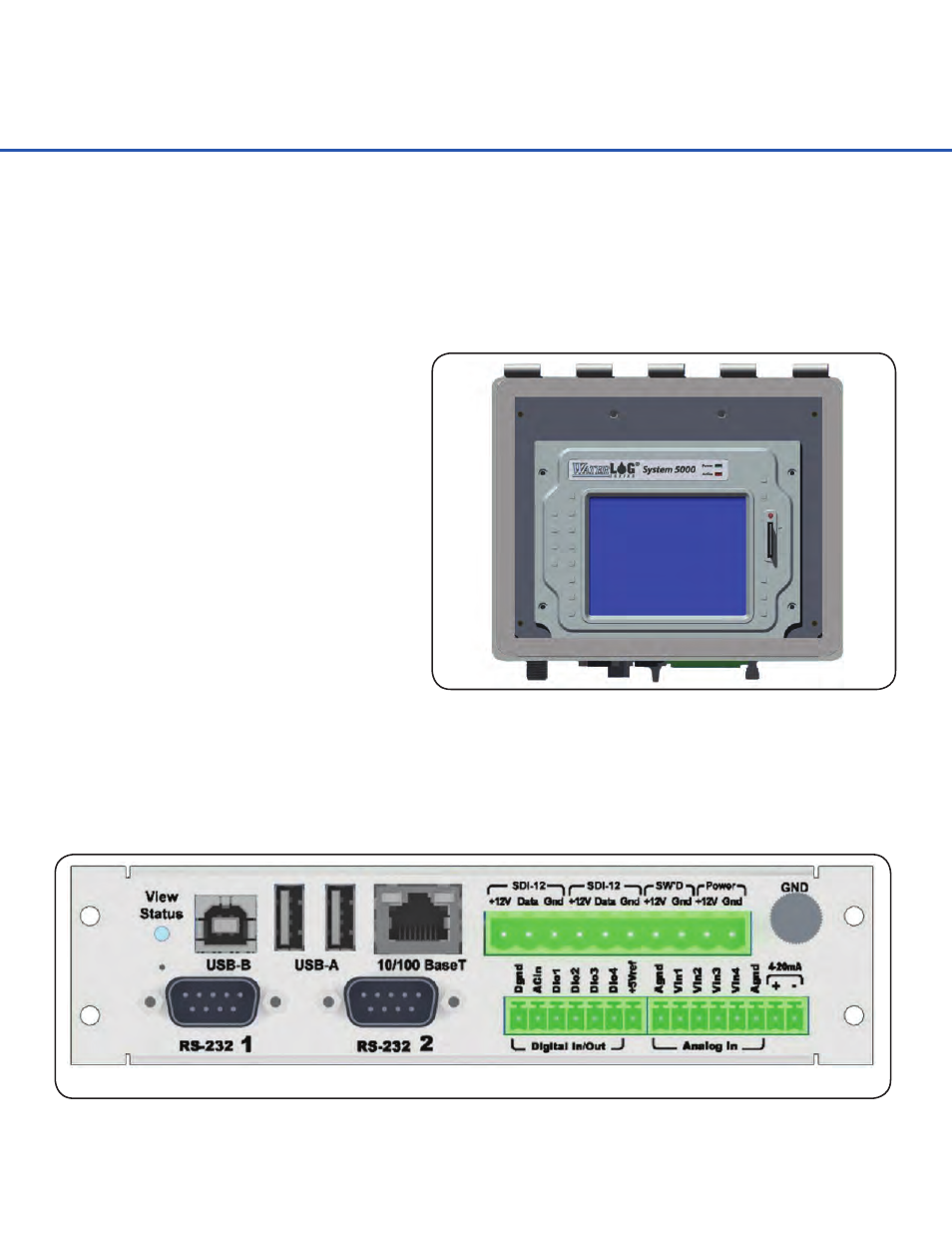

HARDWARE OVERVIEW
Primary access to the System 5000
™
Software is managed through the ¼ VGA touch screen display
on top of the unit. The touch screen is used to view, edit, and configure the system settings and
operations.
Touch Screen Interface
SD Card Slot
The SD memory card slot is used to transfer data and other files to and from the System 5000
™
.
Once a card has been placed in the slot, the data can be accessed through the Data File Manager.
Three LEDs exist on the top panel: the
Power LED, the Active LED, and the SD Card
LED. The Power and Active LED indicate the
general status of the System 5000
™
during
normal operations. The Power LED blinks
every five seconds while power is applied
to the unit. TheActive LED illuminates when
the unit is taking measurements, collecting
data or performing other background
tasks. While navigating the menus of the
System menus of the System 5000
™
, if any
scanning or other background operations
occur,he Active LED will blink continuously
until the scan or operation has completed.
The SD Card LED only blinks when SD
Card activity occurs.
LED Indicators
Top View
Front Panel
