NE-M Installation Guide H5692448
CC848815325 r06 May 2013 55
Step Action
3
Apply appropriate terminals (if necessary) to the cable after removing the supplied had 1/4 inch Faston ®
terminals:
Table 8 Power Connections - NE830
Pin #
Wire Color
Signal Name Connect to:
1
(Green)
Earth Ground Frame Ground
2
(White)
24V+/- 24V point to be monitored (+24V or -24V)
3
(Red)
48V- -48V point to be monitored (-48V only)
4
(Black) Common
Return
Return for signals on pins 2 & 3
4
Connect and wire connection to NE830A. Alarm cable comcodes are
15ft: CC847922101, 150 ft: CC848804765.

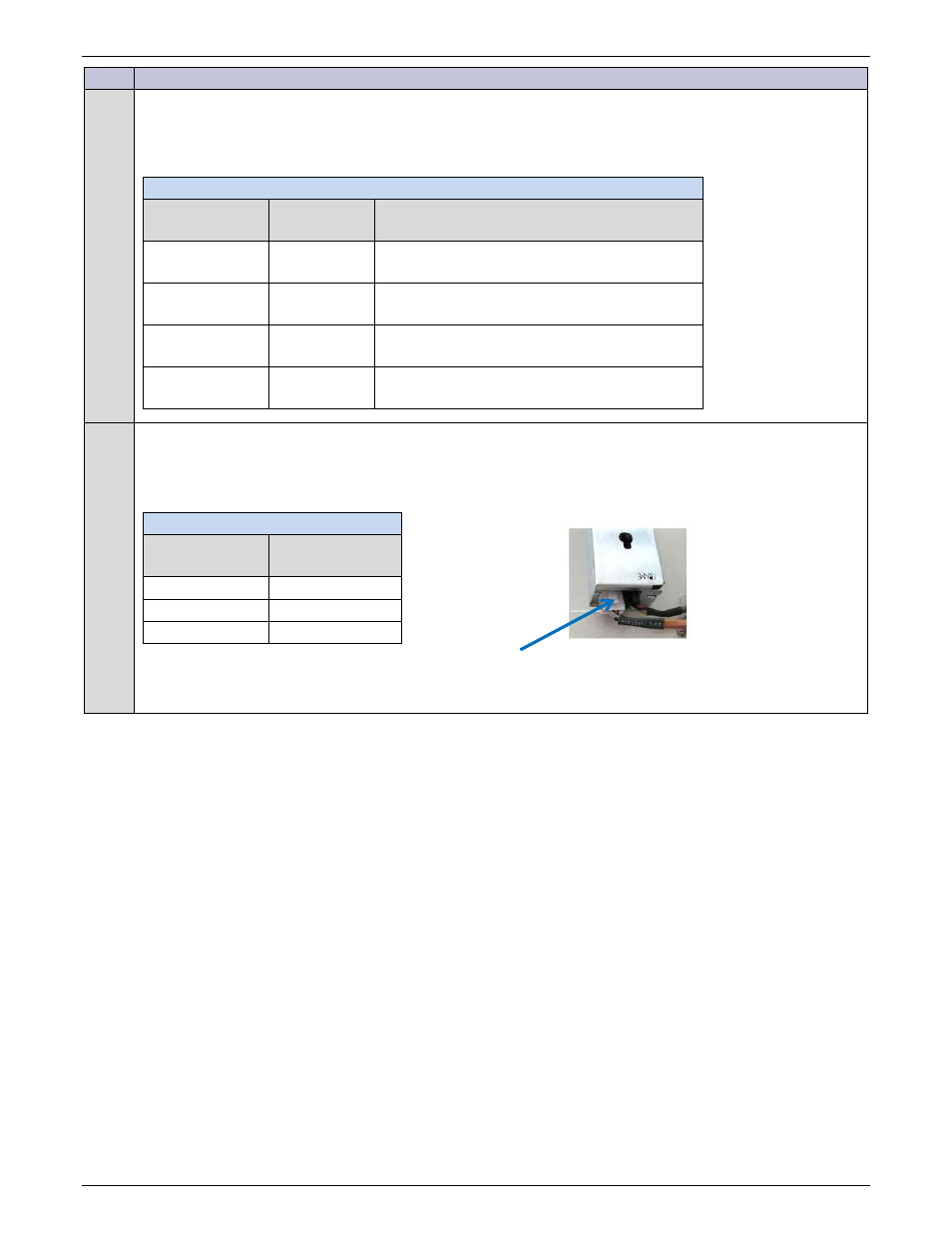

Figure 77 NE830 Alarm Cable Connector
Table 9 Alarm Connections - NE830
Pin #
Wire Color
Signal Name
1 Black Common
2 Brown Open on Alarm
3 Bare Close on Alarm Alarm Cable
Connector
