P-2602HWNLI User’s Guide
Chapter 19 Bandwidth Management
283
19.10 Bandwidth Monitor
To view the ZyXEL Device’s bandwidth usage, click Advanced > Bandwidth MGMT >
Monitor. The screen appears as shown. Select an interface from the drop-down list box to
view the bandwidth usage of its bandwidth rules. The gray section of the bar represents the
percentage of unused bandwidth and the blue color represents the percentage of bandwidth in
use.

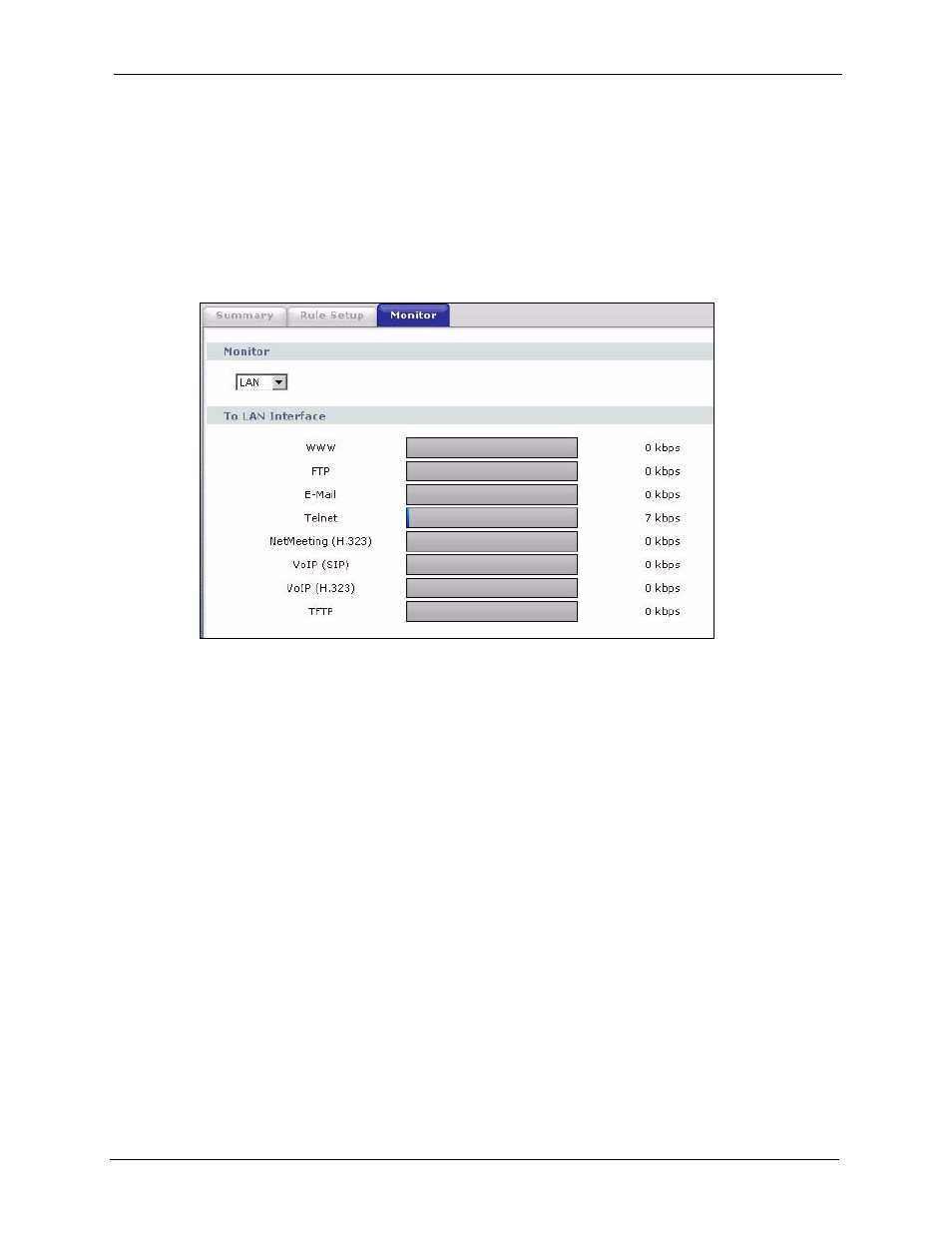

Figure 148 Bandwidth Management: Monitor
