P-2602HWNLI User’s Guide
Chapter 7 Status Screens 113

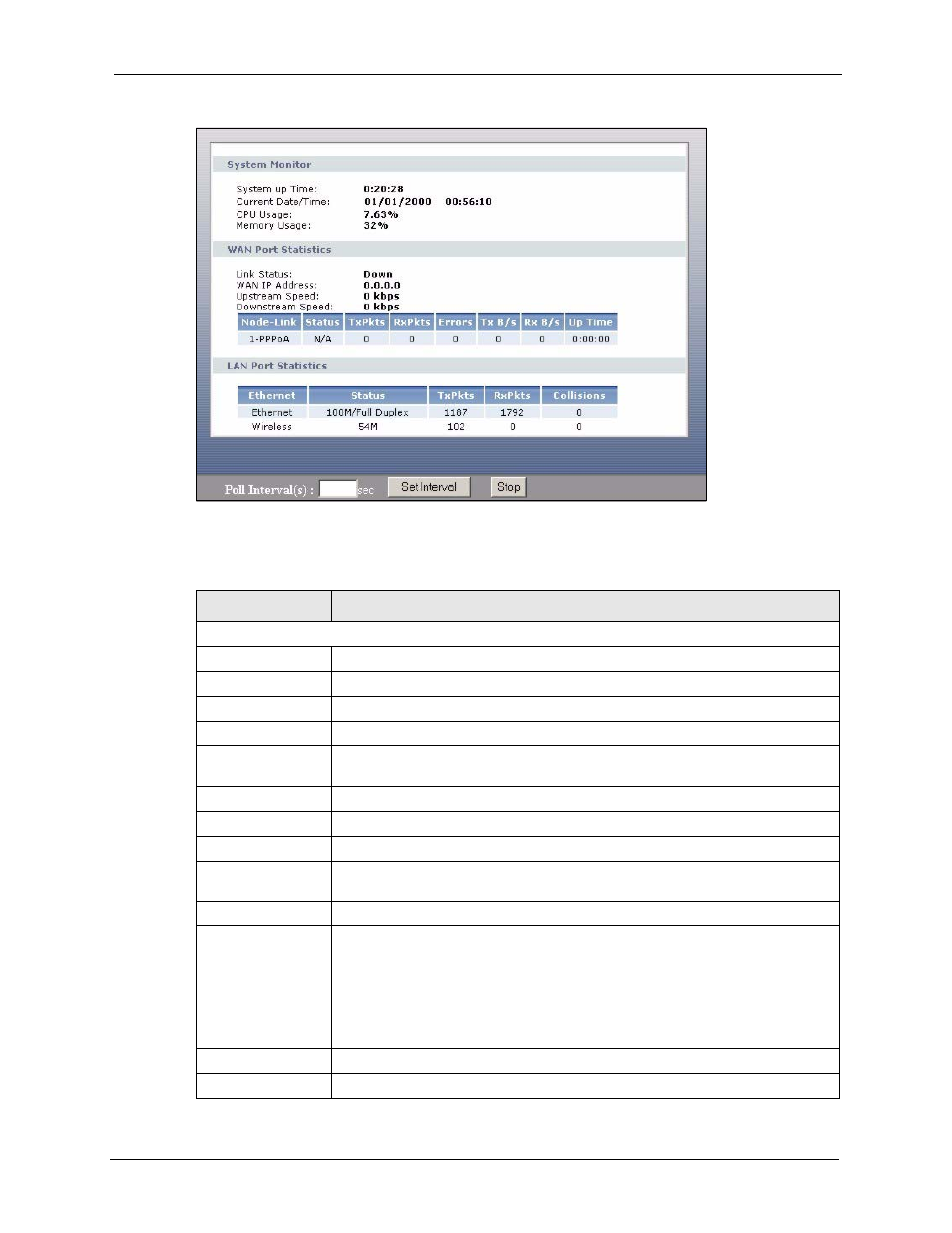

Figure 56 Packet Statistics
The following table describes the fields in this screen.
Table 31 Packet Statistics
LABEL DESCRIPTION
System Monitor
System up Time This is the elapsed time the system has been up.
Current Date/Time This field displays your ZyXEL Device’s present date and time.
CPU Usage This field specifies the percentage of CPU utilization.
Memory Usage This field specifies the percentage of memory utilization.
LAN or WAN Port
Statistics
This is the WAN or LAN port.
Link Status This is the status of your WAN link.
Upstream Speed This is the upstream speed of your ZyXEL Device.
Downstream Speed This is the downstream speed of your ZyXEL Device.
Node-Link This field displays the remote node index number and link type. Link types are
PPPoA, ENET, RFC 1483 and PPPoE.
Ethernet This field displays the type of port.
Status This field displays Down (line is down), Detect Signal (checking DSL
connection) or Up (line is up or connected) if you're using Ethernet encapsulation
and Down (line is down), Detect Signal (checking DSL connection), Up (line is
up or connected), Idle (line (ppp) idle), Dial (starting to trigger a call) or Drop
(dropping a call) if you're using PPPoE encapsulation.
For the WLAN port, it displays the transmission rate when WLAN is enabled or
N/A when WLAN is disabled.
TxPkts This field displays the number of packets transmitted on this port.
RxPkts This field displays the number of packets received on this port.
