Chapter 8 VLAN

ES-2108 Series User’s Guide

90

8.5.1 Static VLAN Status

See

Section 8.1 on page 87

for more information on Static VLAN. Click Advanced

Application > VLAN from the navigation panel to display the VLAN Status screen as shown
next.

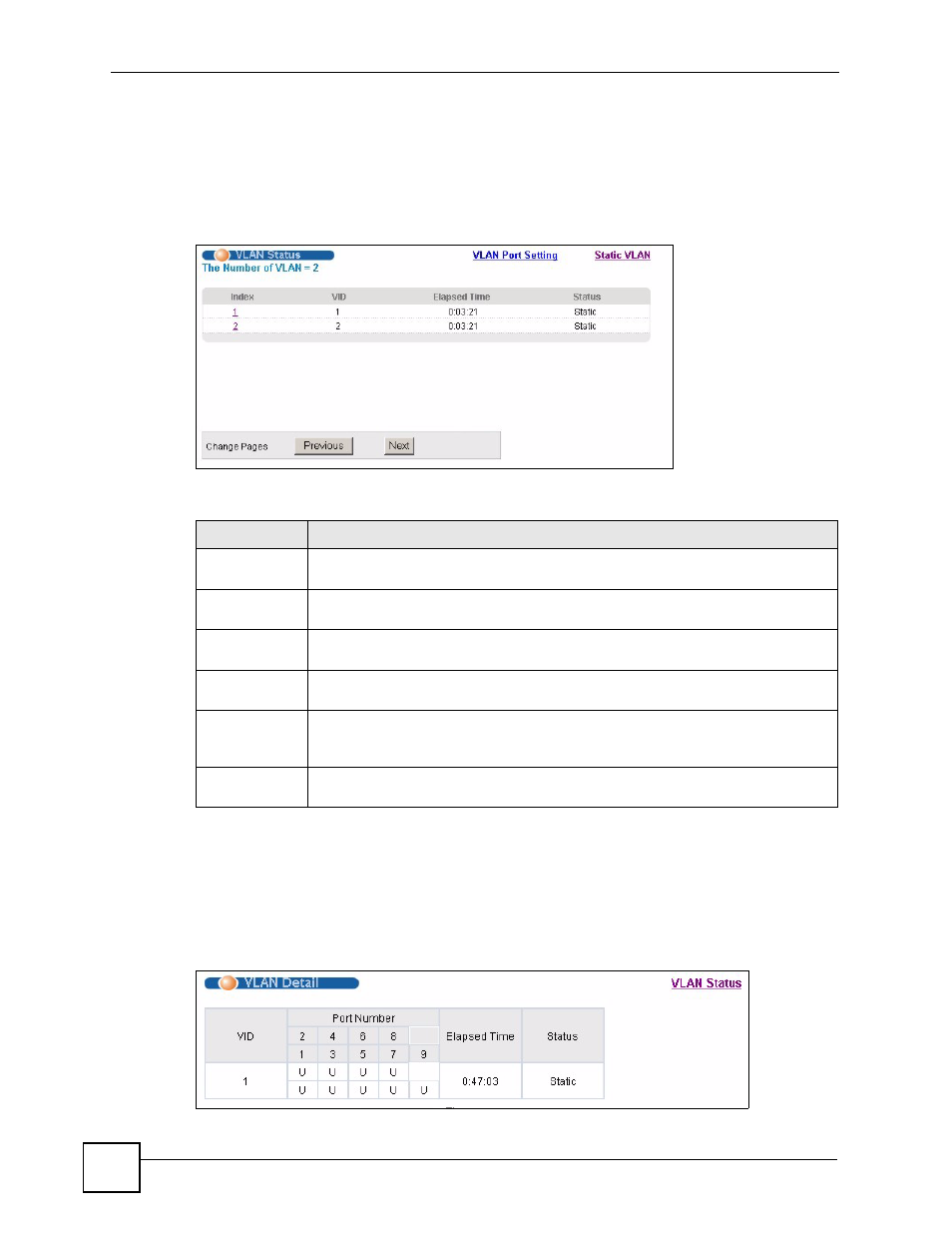

Figure 41 Advanced Application > VLAN: VLAN Status

The following table describes the labels in this screen.

8.5.2 Static VLAN Details

Use this screen to view detailed port settings and status of the VLAN group. See

Section 8.1

on page 87

for more information on static VLANs. Click on an index number in the VLAN

Status screen to display VLAN details.

Figure 42 Advanced Application > VLAN > VLAN Detail

Table 15 Advanced Application > VLAN: VLAN Status

LABEL

DESCRIPTION

The Number of
VLAN

This is the number of VLANs configured on the Switch.

Index

This is the VLAN index number. Click on this to view port settings for the specified
VLAN.

VID

This is the VLAN identification number that was configured in the Static VLAN
screen.

Elapsed Time

This field shows how long it has been since a normal VLAN was registered or a
static VLAN was set up.

Status

This field shows how this VLAN was added to the Switch; dynamic - using GVRP,
static - added as a permanent entry or it shows other - added using Multicast VLAN
Registration (MVR).

Change Pages

Click Previous or Next to show the previous/next screen if all status information
cannot be seen in one screen.
