Chapter 16 Port Authentication
ES-2108 Series User’s Guide
128

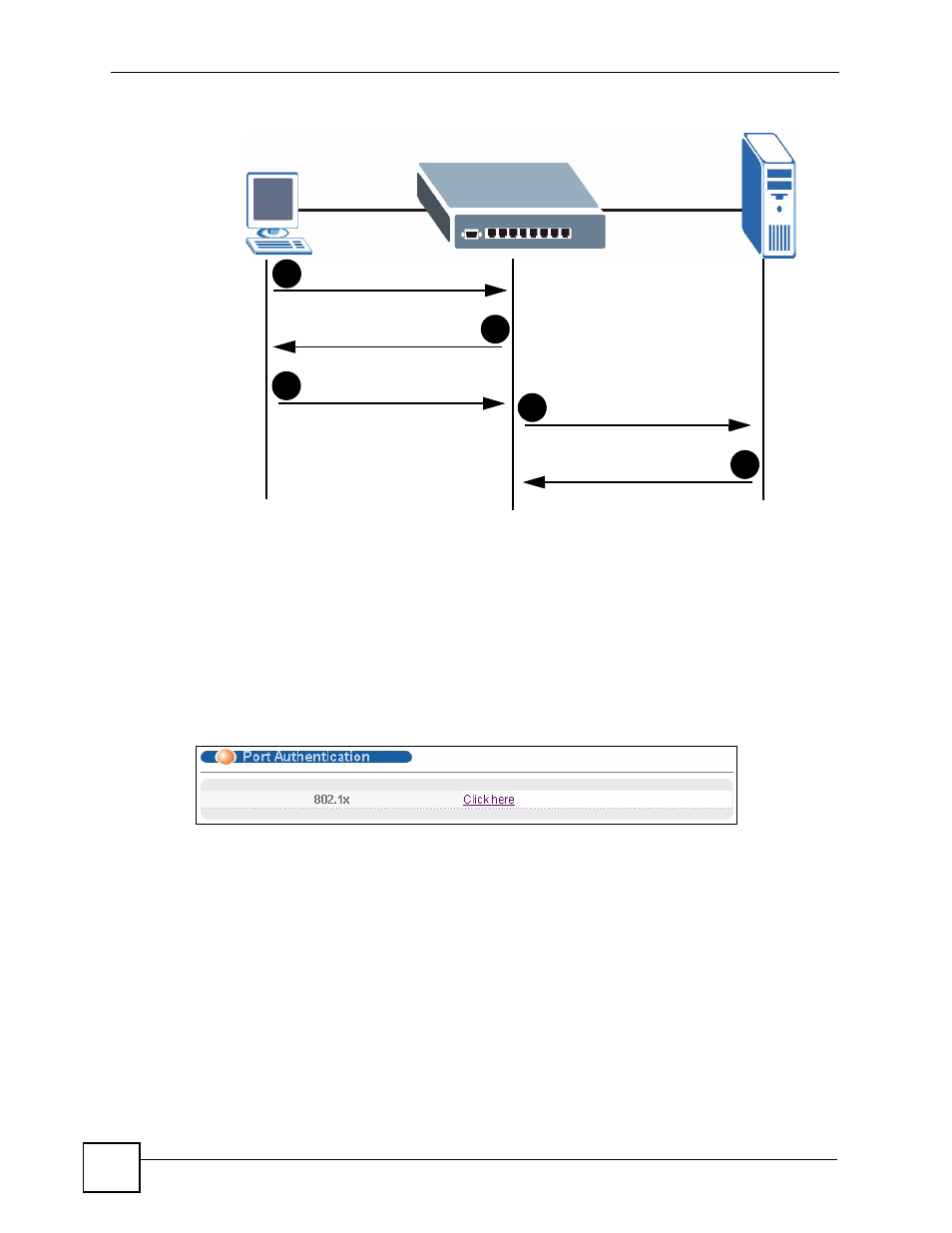

Figure 67 IEEE 802.1x Authentication Process
16.2 Port Authentication Configuration
To enable port authentication, first activate IEEE802.1x security (both on the Switch and the
port(s)) then configure the RADIUS server settings.
Click Advanced Application > Port Authentication in the navigation panel to display the
screen as shown.
Figure 68 Advanced Application > Port Authentication
16.2.1 Activate IEEE 802.1x Security
Use this screen to activate IEEE 802.1x security. From the Port Authentication screen,
display the configuration screen as shown.
New Connection
Authentication Request
Authentication Reply
1
4
5
Login Credentials
Login Info Request
3
2
Session Granted/Denied
