Chapter 4 The Web Configurator
ES-2108 Series User’s Guide
52

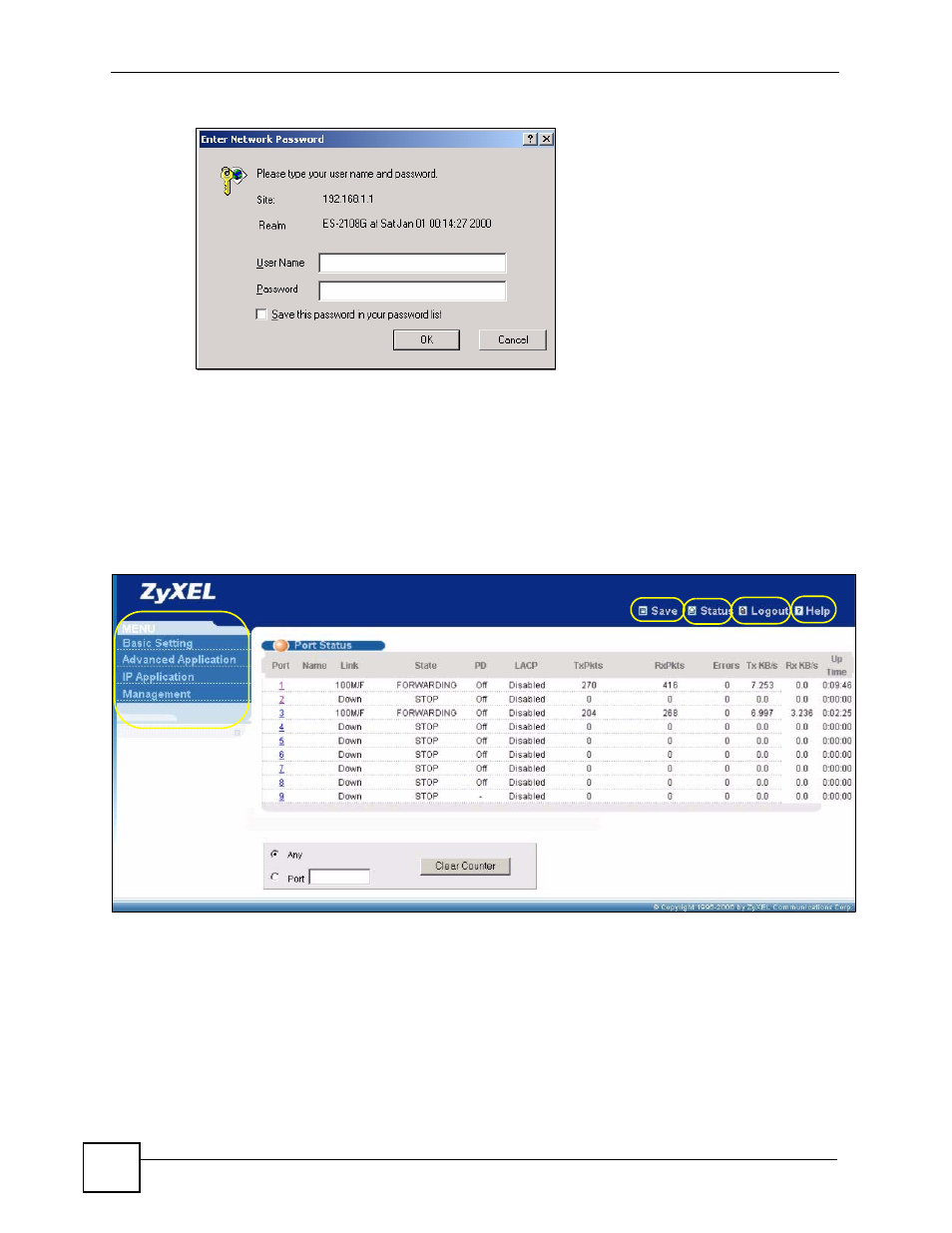

Figure 20 Web Configurator: Login
4 Click OK to view the first web configurator screen.
4.3 The Status Screen
The Status screen is the first screen that displays when you access the web configurator.
The following figure shows the navigating components of a web configurator screen.
Figure 21 Web Configurator Home Screen (Status)
A - Click the menu items to open submenu links, and then click on a submenu link to open the
screen in the main window.
B, C, D, E - These are quick links which allow you to perform certain tasks no matter which
screen you are currently working in.
B - Click this link to save your configuration into the Switch’s nonvolatile memory.
Nonvolatile memory is the configuration of your Switch that stays the same even if the
Switch’s power is turned off.
C - Click this link to go to the status page of the Switch.
A
B C D E
