Chapter 5 Initial Setup Example
ES-2108 Series User’s Guide
63
5.1.2 Setting Port VID
Use PVID to add a tag to incoming untagged frames received on that port so that the frames
are forwarded to the VLAN group that the tag defines.
In the example network, configure 2 as the port VID on port 5 so that any untagged frames
received on that port get sent to VLAN 2.

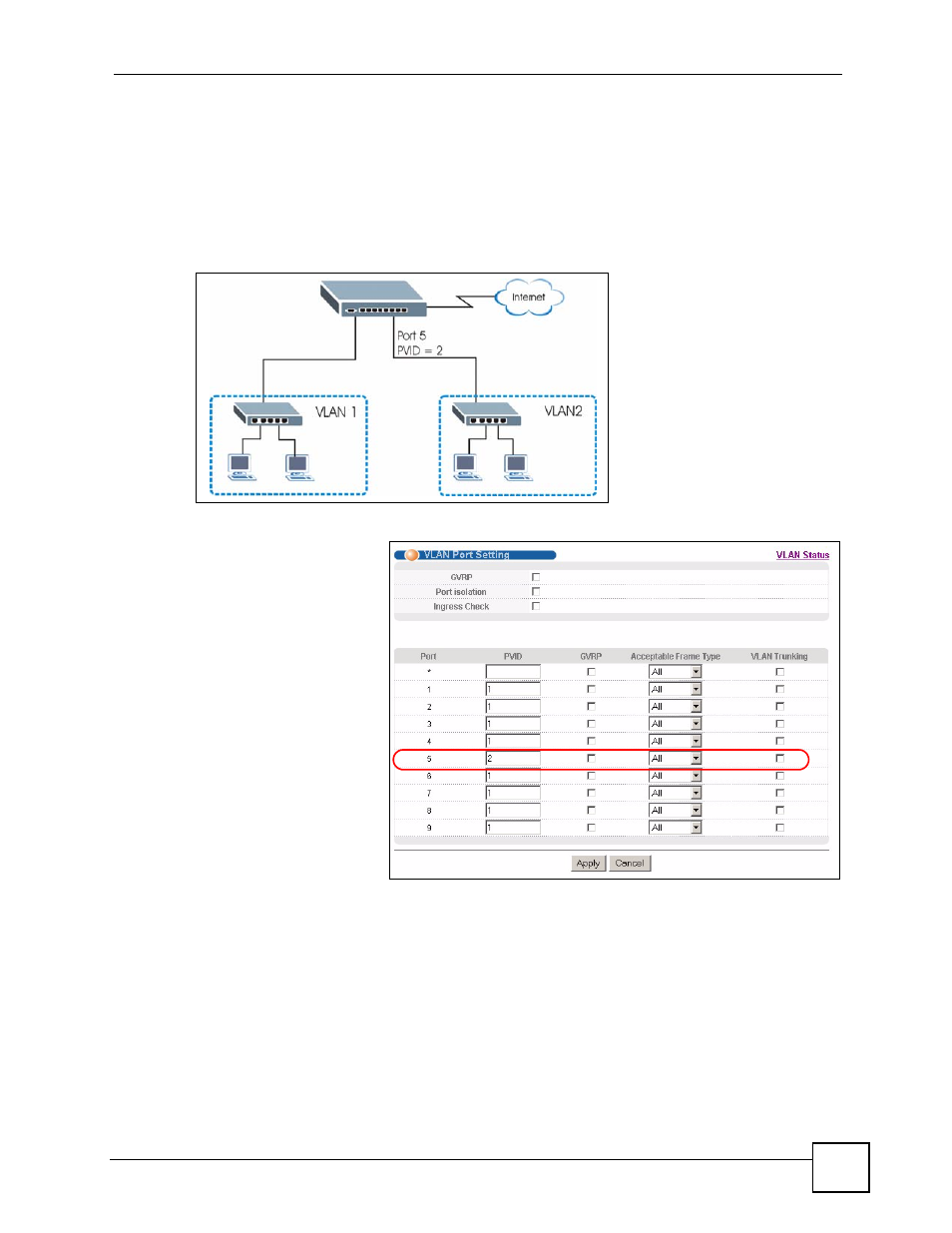

Figure 26 Initial Setup Network Example: Port VID
1 Click Advanced
Applications >
VLAN in the
navigation panel.
Then click the
VLAN Port Setting
link.
2 Enter 2 in the PVID
field for port 5 and
click Apply to save
your changes back to
the run-time
memory. Settings in
the run-time
memory are lost
when the Switch’s
power is turned off.
5.1.3 Configuring the Management IP Address
The default management IP address of the Switch is 192.168.1.1. You can configure another
IP address in a different subnet for management purposes. The following figure shows an
example.
