19.5 IGMP Filtering Profile
An IGMP filtering profile specifies a range of multicast groups that clients connected to the
Switch are allowed to join. A profile contains a range of multicast IP addresses (multicast
groups) which you want clients to be able to join. Profiles are assigned to ports (in the
Multicast Setting screen). Clients connected to those ports are then permitted to join the
multicast groups specified in the profile. Each port can be assigned a single profile only. A
profile can be assigned to multiple ports.
Click Advanced Application > Multicast > Multicast Setting > IGMP Filtering Profile
link to display the screen as shown.

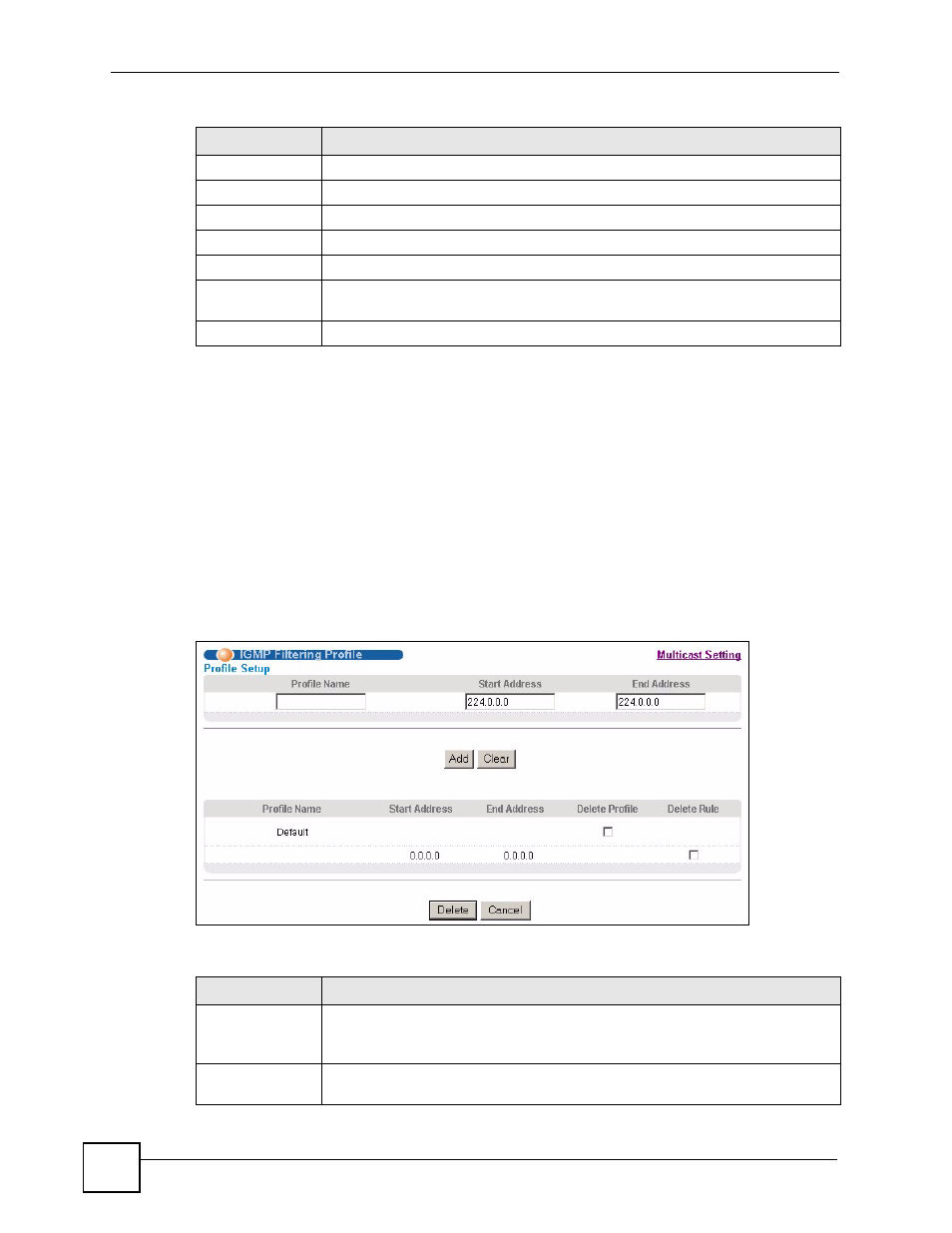

Figure 76 Advanced Application > Multicast > Multicast Setting> IGMP Filtering Profile
The following table describes the labels in this screen.
Cancel Click Cancel to reset the fields to your previous configuration.
Clear Click this to clear the fields.
Index This is the number of the IGMP snooping VLAN entry in the table.
Name This field displays the descriptive name for this VLAN group.
VID This field displays the ID number of the VLAN group.
Delete Check the rule(s) that you want to remove in the Delete column, then click the
Delete button.
Cancel Click Cancel to clear the Delete check boxes.
Table 44 Advanced Application > Multicast > Multicast Setting > IGMP Snooping VLAN
LABEL DESCRIPTION
Table 45 Advanced Application > Multicast > Multicast Setting> IGMP Filtering Profile
LABEL DESCRIPTION
Profile Name Enter a descriptive name for the profile for identification purposes.
To configure additional rule(s) for a profile that you have already added, enter the
profile name and specify a different IP multicast address range.
Start Address Type the starting multicast IP address for a range of multicast IP addresses that
you want to belong to the IGMP filter profile.
