Chapter 15 Link Aggregation
ES-2108 Series User’s Guide
123
15.4 Link Aggregation Setup
Click Advanced Application > Link Aggregation > Link Aggregation Setting to display
the screen shown next. See
for more information on link
aggregation.

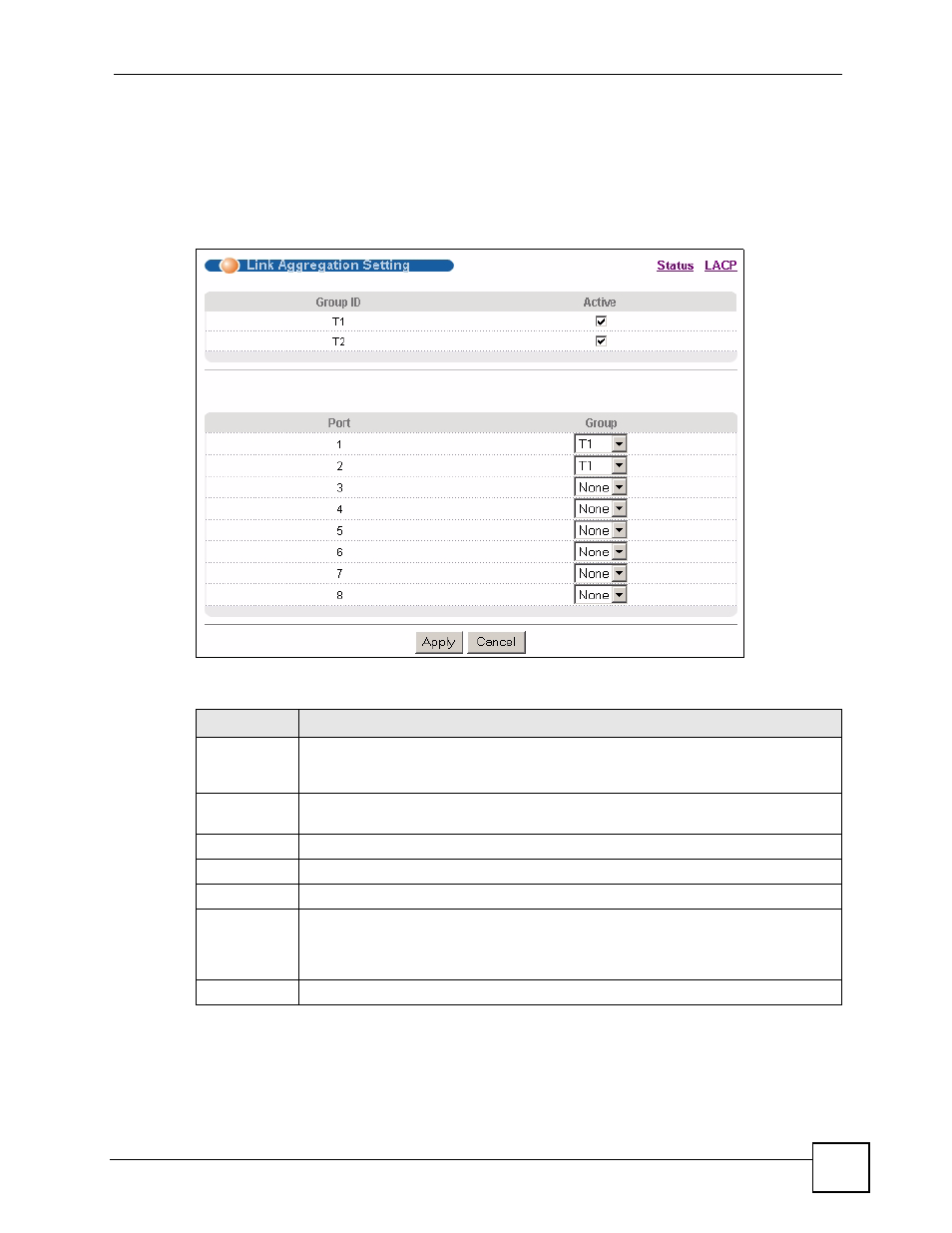

Figure 63 Advanced Application > Link Aggregation > Link Aggregation Setting
The following table describes the labels in this screen.
Table 35 Advanced Application > Link Aggregation > Link Aggregation Setting
LABEL
DESCRIPTION
Link
Aggregation
Setting
This is the only screen you need to configure to enable static link aggregation.
Group ID
The field identifies the link aggregation group, that is, one logical link containing
multiple ports.
Active
Select this option to activate a trunk group.
Port
This field displays the port number.
Group
Select the trunk group to which a port belongs.
Apply
Click Apply to save your changes to the Switch’s run-time memory. The Switch loses
these changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when you are done
configuring.
Cancel
Click Cancel to begin configuring this screen afresh.
