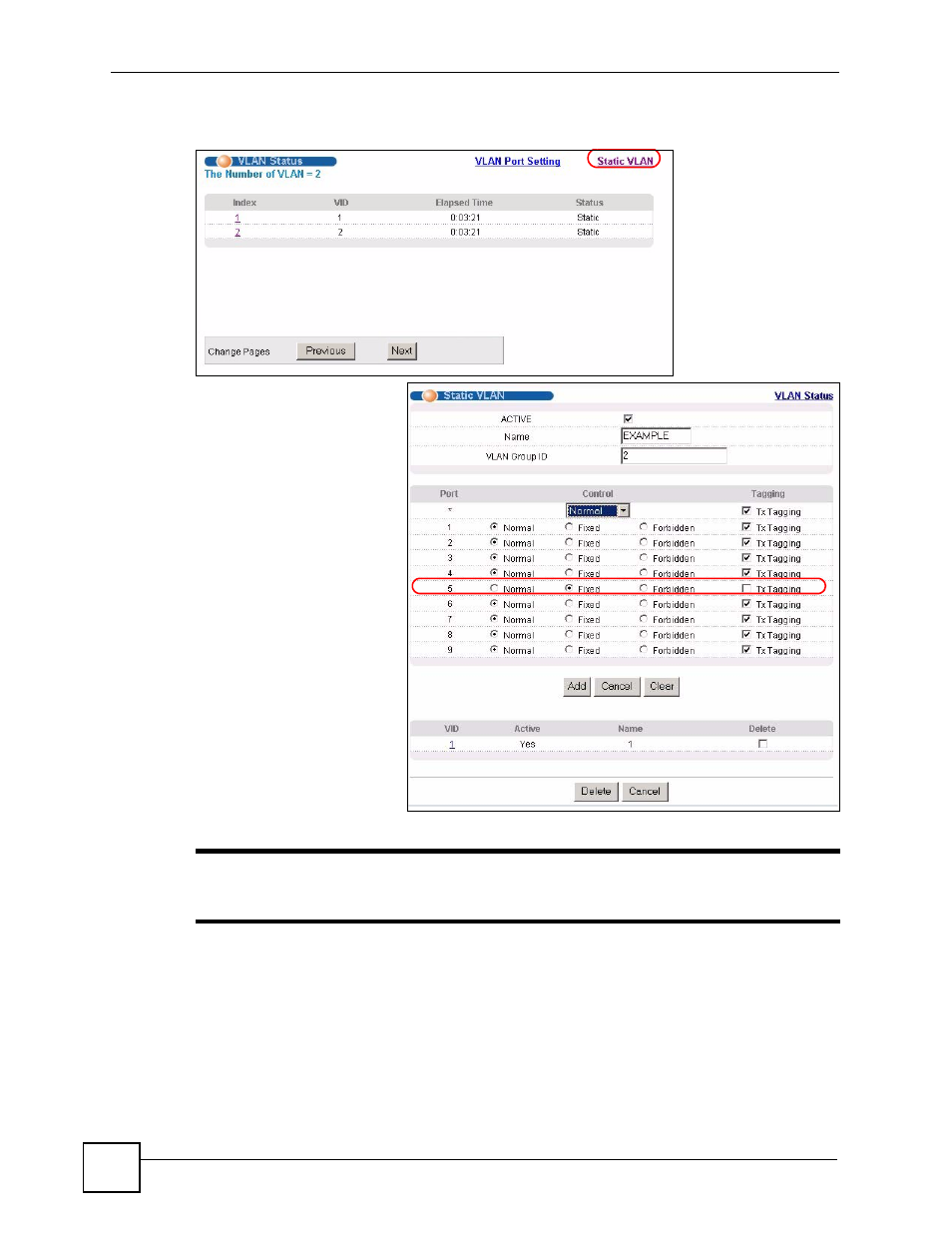

1 Click Advanced Application > VLAN in the navigation panel and click the Static
VLAN link.
2 In the Static VLAN
screen, select
ACTIVE, enter a
descriptive name in the
Name field and enter 2
in the VLAN Group
ID field for the
VLAN2 network.
"
The VLAN Group ID field in this screen and the VID field in the IP Setup
screen refer to the same VLAN ID.
3 Since the VLAN2 network is connected to port 5 on the Switch, select Fixed to
configure port 5 to be a permanent member of the VLAN only.
4 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames
properly, clear the TX Tagging check box to set the Switch to remove VLAN tags
before sending.
5 Click Add to save the settings to the run-time memory. Settings in the run-time memory
are lost when the Switch’s power is turned off.
