Chapter 11 Spanning Tree Protocol
ES-2108 Series User’s Guide
109

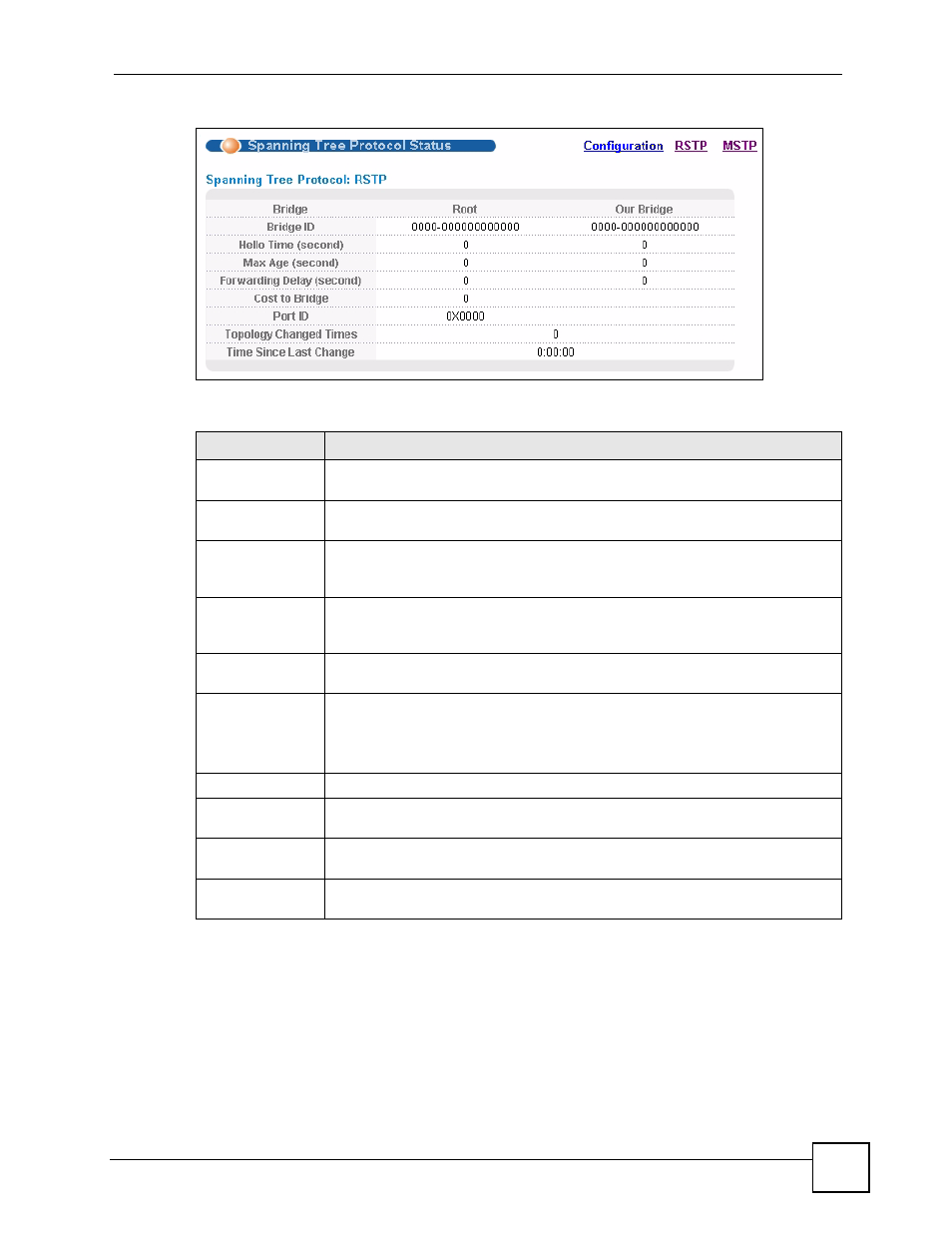

Figure 56 Advanced Application > Spanning Tree Protocol: Status, RSTP
The following table describes the labels in this screen.
11.6 Configure Multiple Spanning Tree Protocol
To configure MSTP, click MSTP in the Advanced Application > Spanning Tree Protocol
screen. See
Section 11.1.4 on page 103 for more information on MSTP.
Table 26 Advanced Application > Spanning Tree Protocol: Status, RSTP
LABEL DESCRIPTION
Configuration Click Configuration to specify which STP mode you want to activate. Click RSTP
to edit RSTP settings on the Switch.
Bridge Root refers to the base of the spanning tree (the root bridge). Our Bridge is this
Switch. This Switch may also be the root bridge.
Bridge ID This is the unique identifier for this bridge, consisting of bridge priority plus MAC
address. This ID is the same for Root and Our Bridge if the Switch is the root
switch.
Hello Time
(second) This is the time interval (in seconds) at which the root switch transmits a
configuration message. The root bridge determines Hello Time, Max Age and
Forwarding Delay.
Max Age (second) This is the maximum time (in seconds) a switch can wait without receiving a
configuration message before attempting to reconfigure.
Forwarding Delay
(second) This is the time (in seconds) the root switch will wait before changing states (that
is, listening to learning to forwarding).
Note: The listening state does not exist in RSTP.
Cost to Bridge This is the path cost from the root port on this Switch to the root switch.
Port ID This is the priority and number of the port on the Switch through which this Switch
must communicate with the root of the Spanning Tree.
Topology
Changed Times This is the number of times the spanning tree has been reconfigured.
Time Since Last
Change This is the time since the spanning tree was last reconfigured.
